Zine-Plated, Mounting Type - Threaded Stem.
High-Quality Resilient Rubber Wheel Tread and core.
Bearing - Plain Bearing.
Wheel Center: high quality elastic rubber

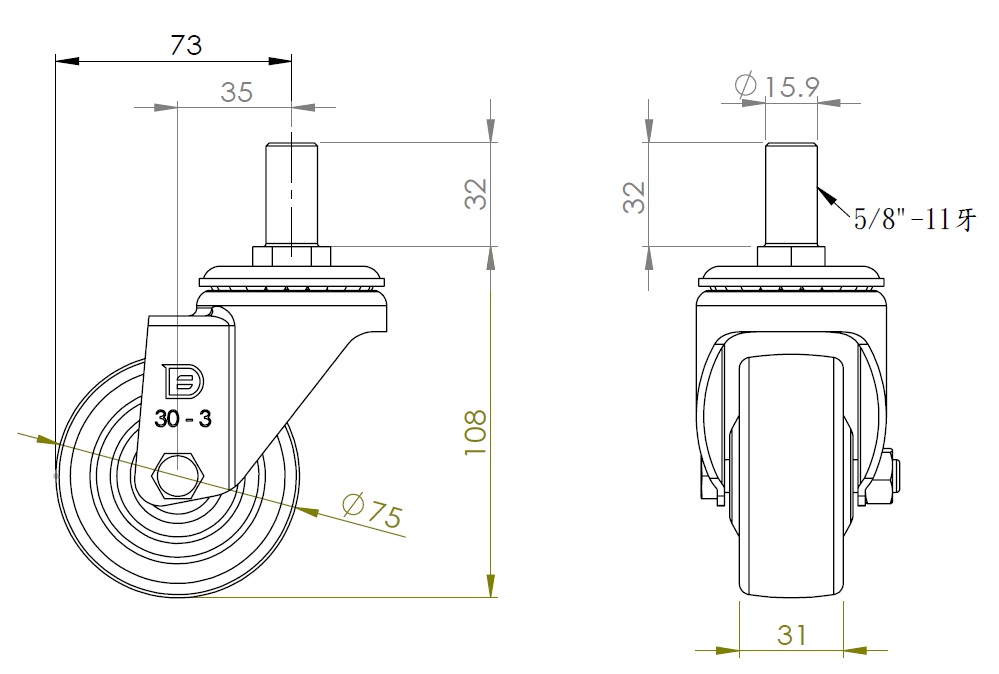

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
75mm
Wheel Width
31mm
Wheel Bearing
Wheel With Plain Bearing
Threaded Stem
5/8＂-11牙
Threaded Length
32mm
Offset
35mm
Swivel Interference
146mm
Overall Height
108mm
Swivel Radius
73mm
Hardness Of Tread
80±5° Shore A
Load Capacity (Dynamic)
90kgs
Rolling Resistance ● ● ● ○ ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ○
Load Capacity (Static)
135kgs
Temperature
-20°C to +120°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.50kgs
Standard
ISO22883
