    Product Data Sheet
1139 Medium Duty General Purposes Caster Series
　　AQPU (Blue round) Wheel Diameter × wWheel Width 75 x 30mm
　　EAN
　　　　　 　　　
　　YJ-11390300601033 　　　

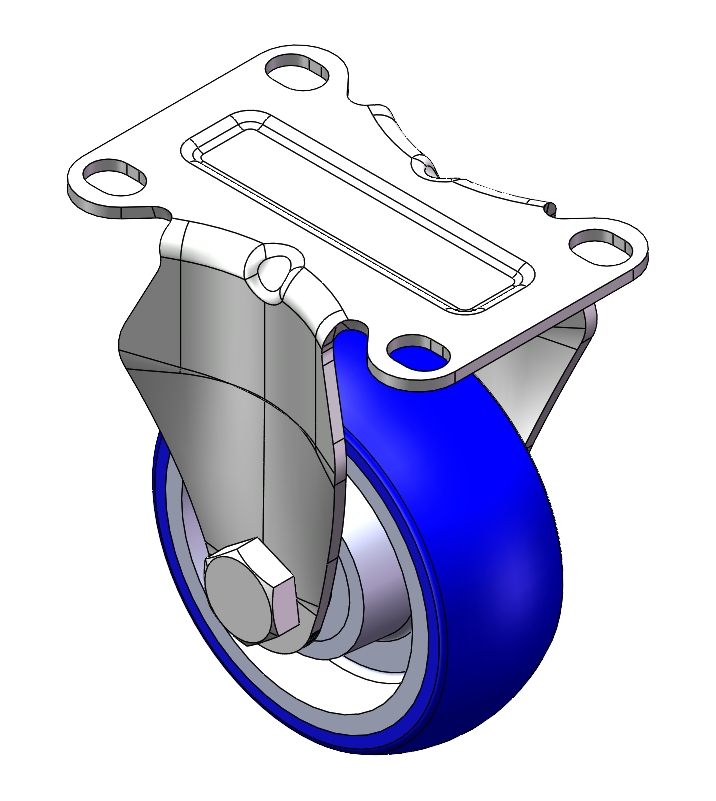

Rigid Caster with Stamping Fabricated Caster Fork and 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing.
Zine-Plated, Mounting Type - Top Plate.
Aluminum core, High Quality Polyurethane Wheel Tread.
Blue color, Bearing—Ball Bearings.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: aluminum core

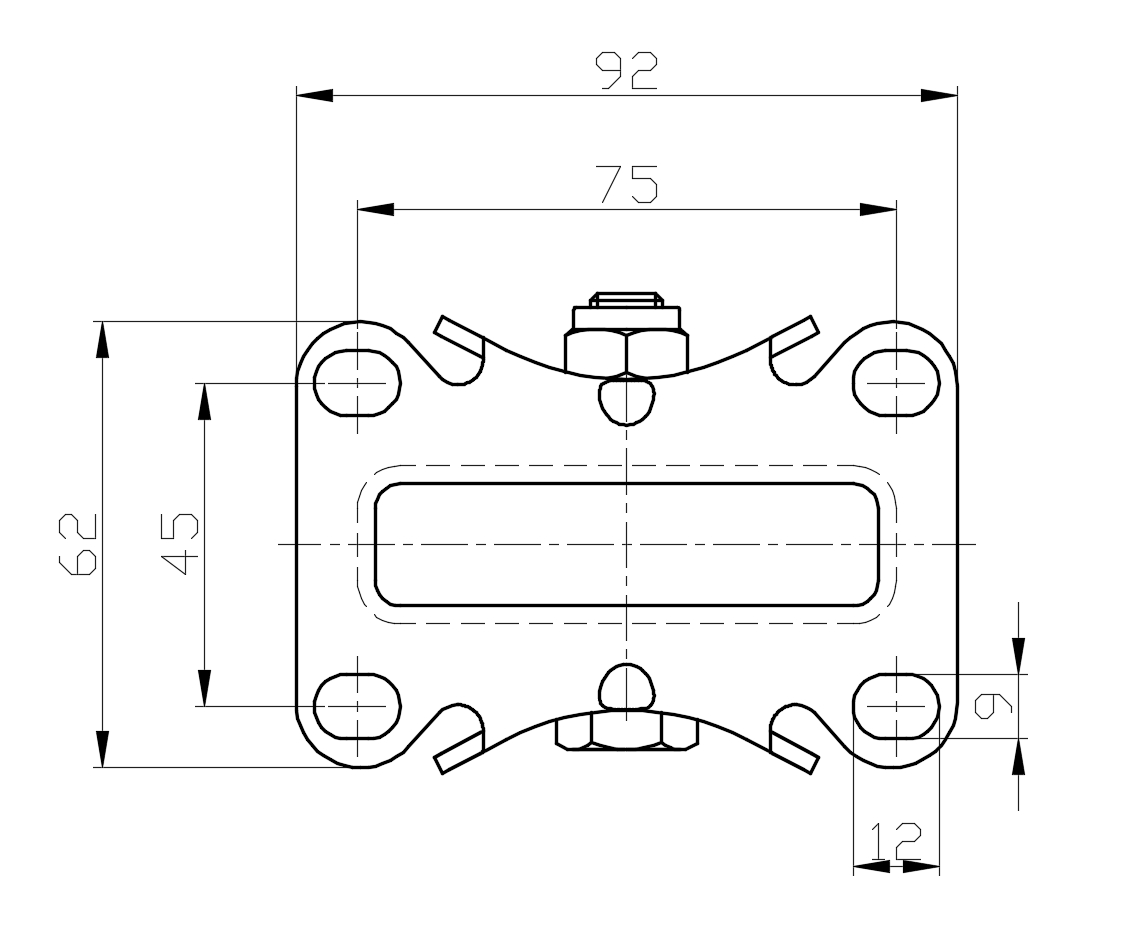

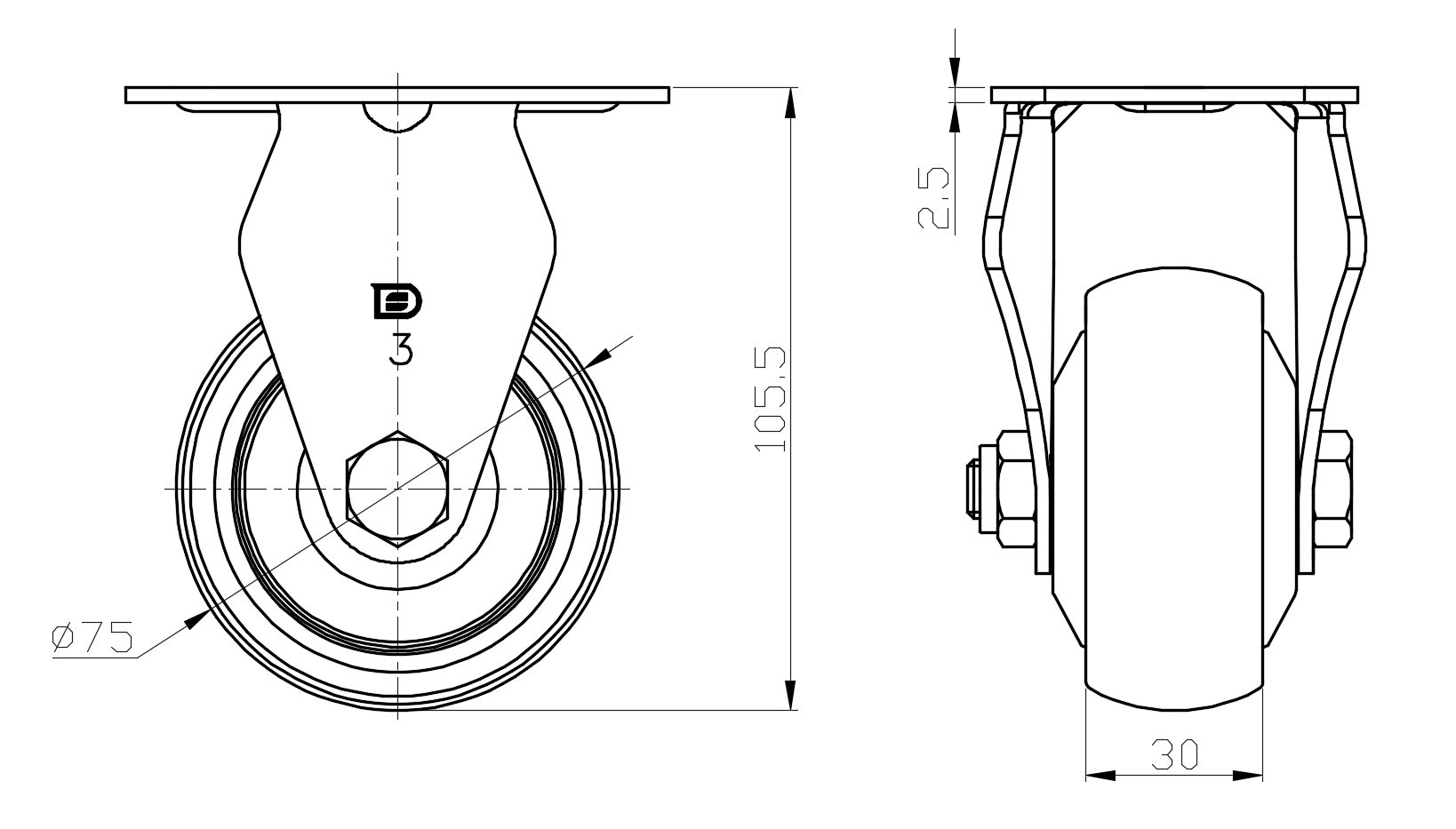

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 30mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 92 x 62mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 12 x 9mm　
　　Overall Height 105.5mm　
　　Hardness Of Tread 87±5° Shore A　
　　Load Capacity (Dynamic) 160kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 240kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.51kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1139 Medium Duty General Purposes Caster Series
AQPU (Blue round) Wheel Diameter × wWheel Width 75 x 30mm
YJ-11390300602043
75 mm 160 Kgs 105.5 mm

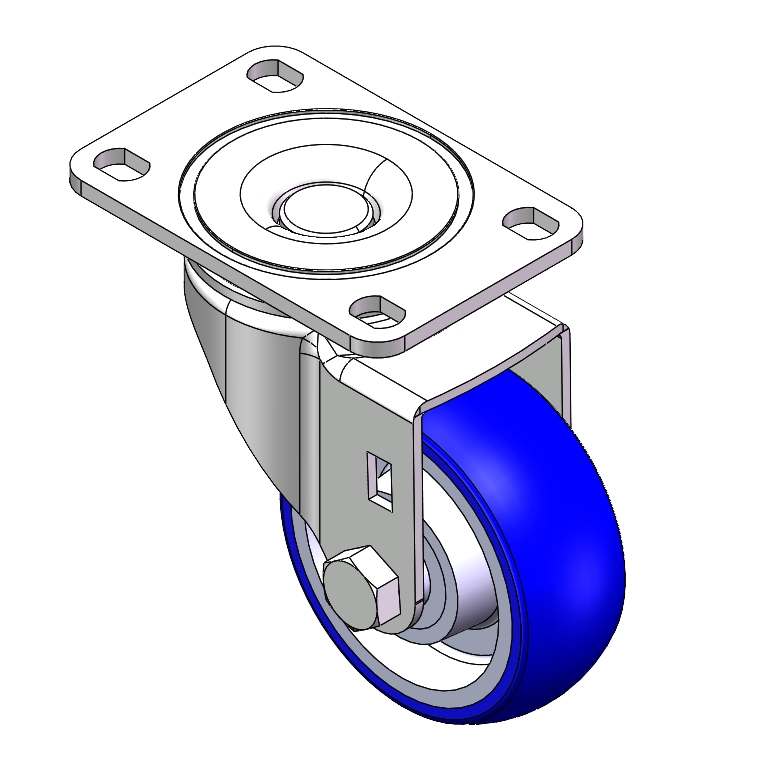

Swivel Caster with Riveted Fork and Stamping Fork—75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing
Zine-Plated, Top Plate (4T) Mounting Type system
Aluminum core, High Quality Polyurethane Wheel Tread
Blue color, Bearing—Ball Bearing.
1139 Medium Duty General Purposes Caster Series
AQPU (Blue round) Wheel Diameter × wWheel Width 75 x 30mm
YJ-11390300604083
75 mm 160 Kgs 105.5 mm

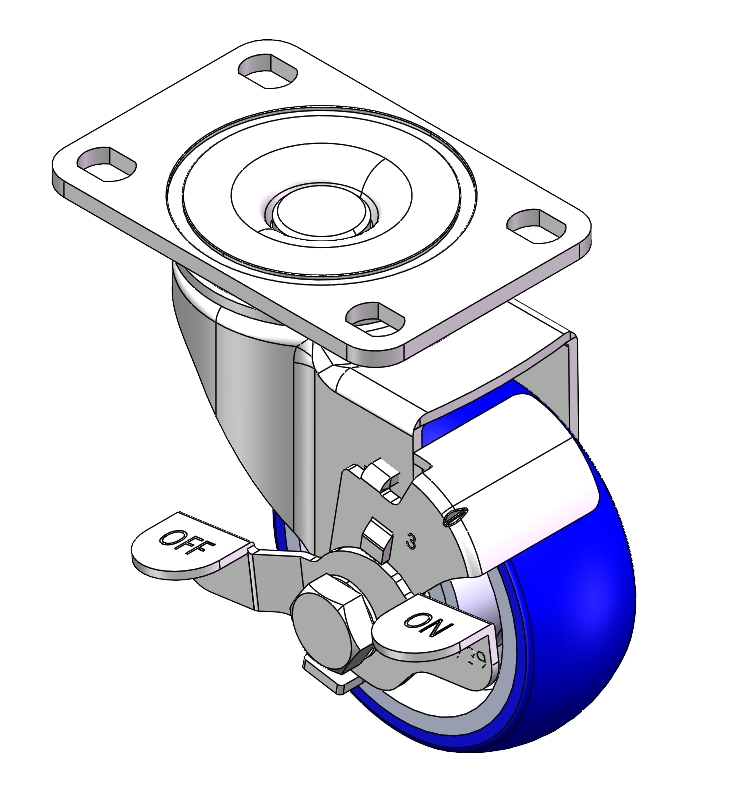

Casters with Side Brakes and With locking system. Top Plate Riveted and Fork – 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing.
Zine-Plated, Top Plate (4T) Mounting Type system.
Aluminum core, High Quality Polyurethane Wheel Tread.
Blue color, Bearing – Ball Bearings.
1139 Medium Duty General Purposes Caster Series
AQPU (Blue round) Wheel Diameter × wWheel Width 75 x 30mm
YJ-11390300601023
75 mm 160 Kgs 105.5 mm

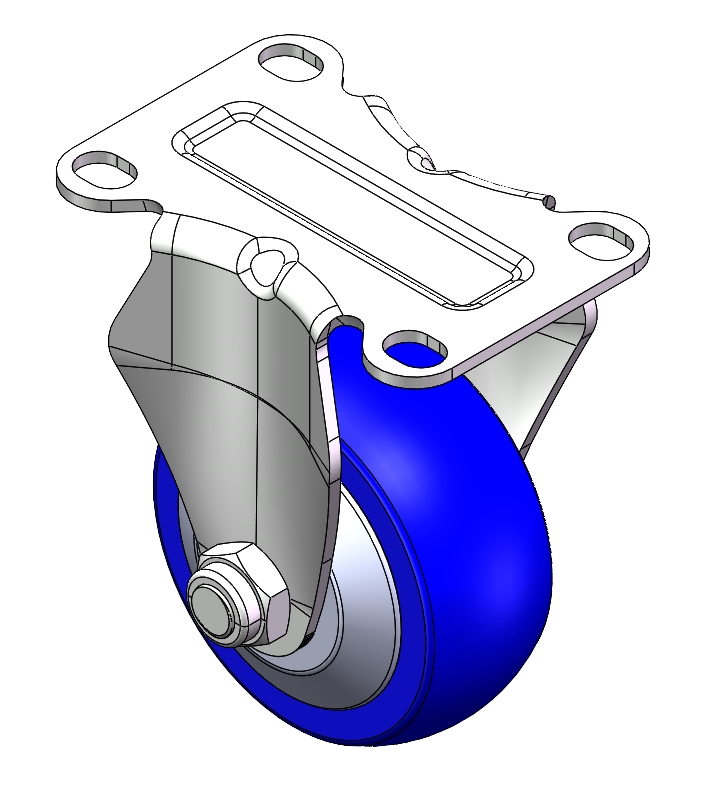

Rigid Caster with Stamping Fabricated Caster Fork and 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing.
Zine-Plated, Mounting Type - Top Plate.
Aluminum core, High Quality Polyurethane Wheel Tread.
Blue color, Bearing—Ball Bearings.
1139 Medium Duty General Purposes Caster Series
AQPU (Blue round) Wheel Diameter × wWheel Width 75 x 30mm
YJ-11390300602023
75 mm 160 Kgs 105.5 mm

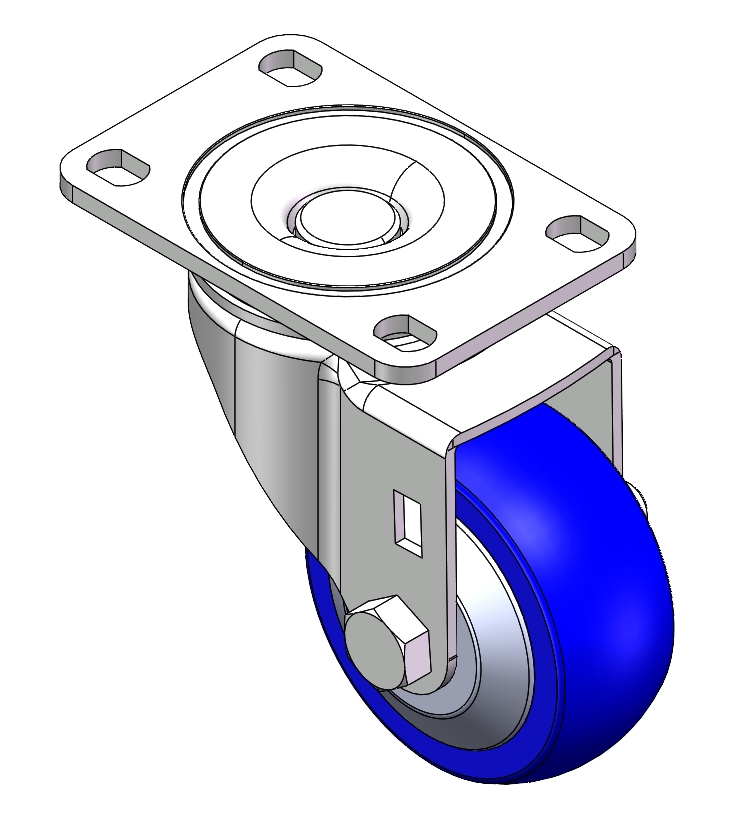

Swivel Caster with Riveted Fork and Stamping Fork—75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing
Zine-Plated, Top Plate (4T) Mounting Type system
Aluminum core, High Quality Polyurethane Wheel Tread
Blue color, Bearing—Ball Bearing.
1139 Medium Duty General Purposes Caster Series
AQPU (Blue round) Wheel Diameter × wWheel Width 75 x 30mm
YJ-11390300604033
75 mm 160 Kgs 105.5 mm

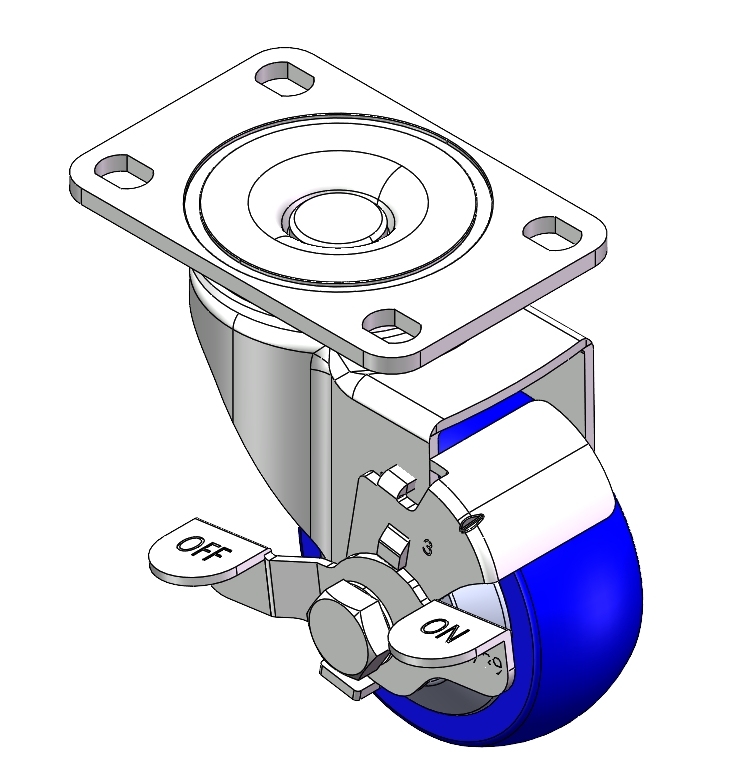

Casters with Side Brakes and With locking system. Top Plate Riveted and Fork – 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing.
