    Product Data Sheet
1139 Medium Duty General Purposes Caster Series
　　WPP (white) Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11390300291013 　　　

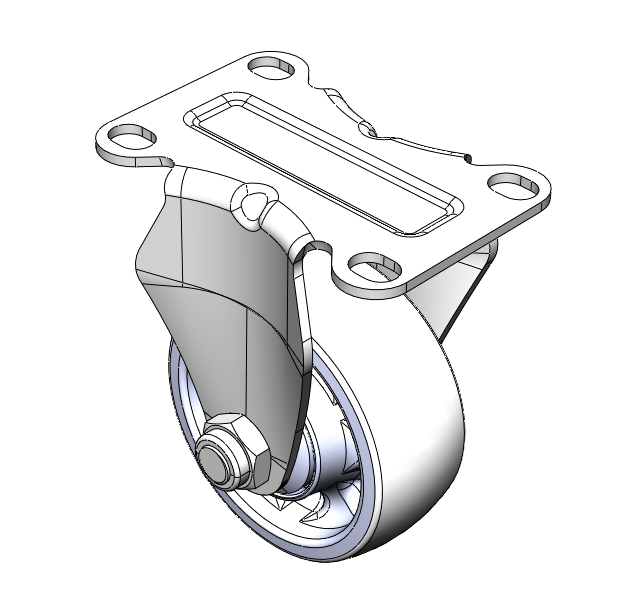

Rigid castors, Stamping Fabricated Caster Fork - 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacings Extended control lever surface, Top Plate installation Polypropylene Wheel Center, Wheel Tread White, Bearing - Ball Bearings.
　　Wheel Tread: PP polypropylene
　　Wheel Center: PP polypropylene

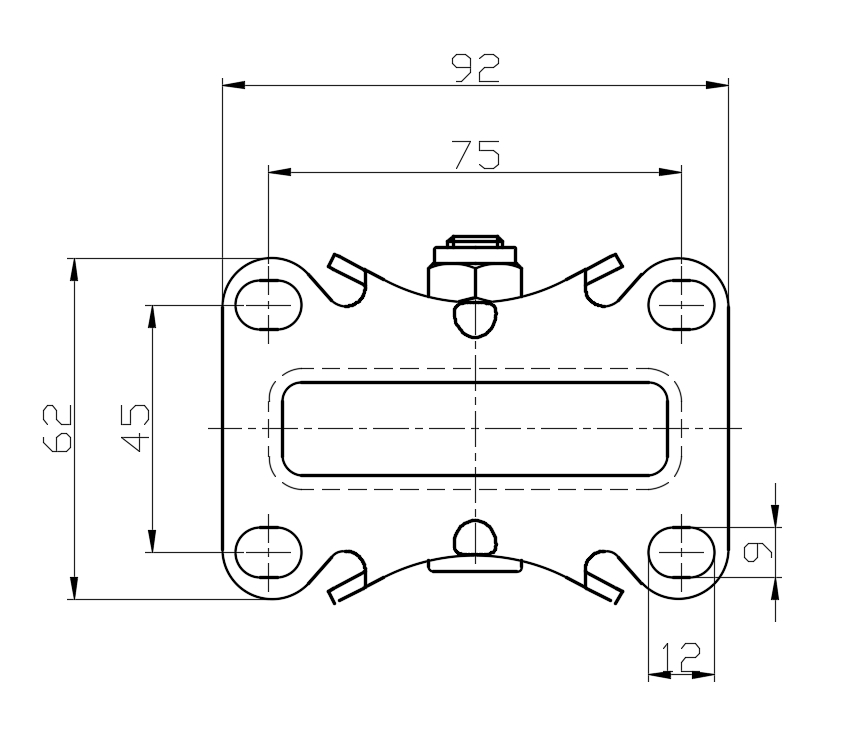

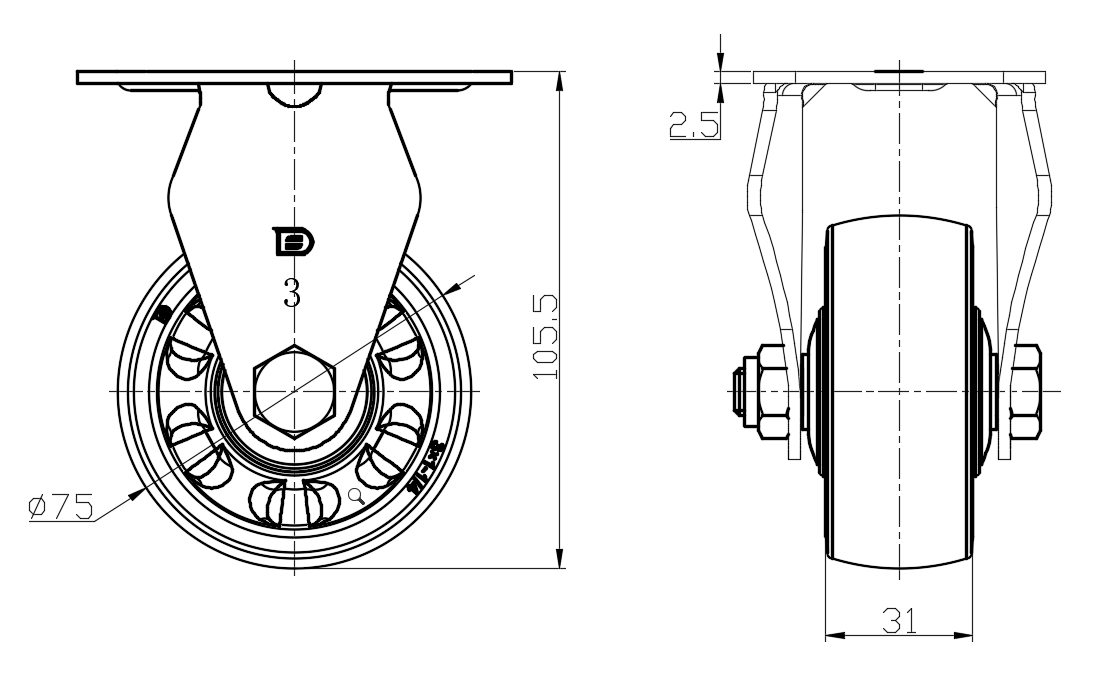

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 92 x 65mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 12 x 9mm　
　　Overall Height 105.5mm　
　　Hardness Of Tread 65±5° Shore D　
　　Load Capacity (Dynamic) 100kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 150kgs　
　　Temperature -10°C to +60°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.37kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1139 Medium Duty General Purposes Caster Series
WPP (white) Wheel Diameter × Wheel Width 75 x 31mm
YJ-11390300292013
75 mm 100 Kgs 105.5 mm

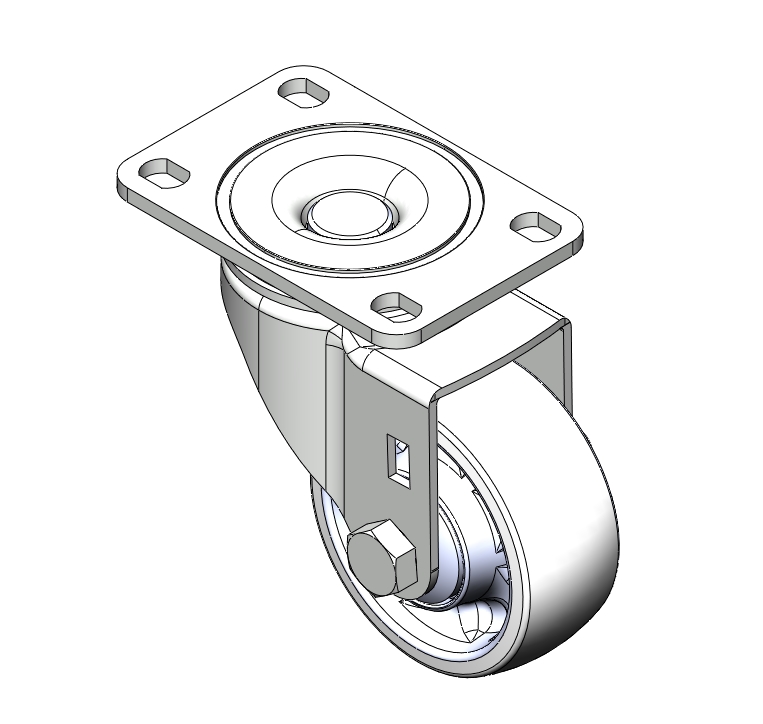

Swivel Casters, Top Plate Riveted Fork - 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacings Extended control lever surface, Top Plate (4T) installation device Polypropylene Wheel Center, Wheel Tread White, Bearing - Ball Bearings.
