    Product Data Sheet
1139 Medium Duty General Purposes Caster Series
　　WPP (white) Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11390300292013 　　　
Swivel Casters, Top Plate Riveted Fork - 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacings Extended control lever surface, Top Plate (4T) installation device Polypropylene Wheel Center, Wheel Tread White, Bearing - Ball Bearings.
　　Wheel Tread: PP polypropylene
　　Wheel Center: PP polypropylene

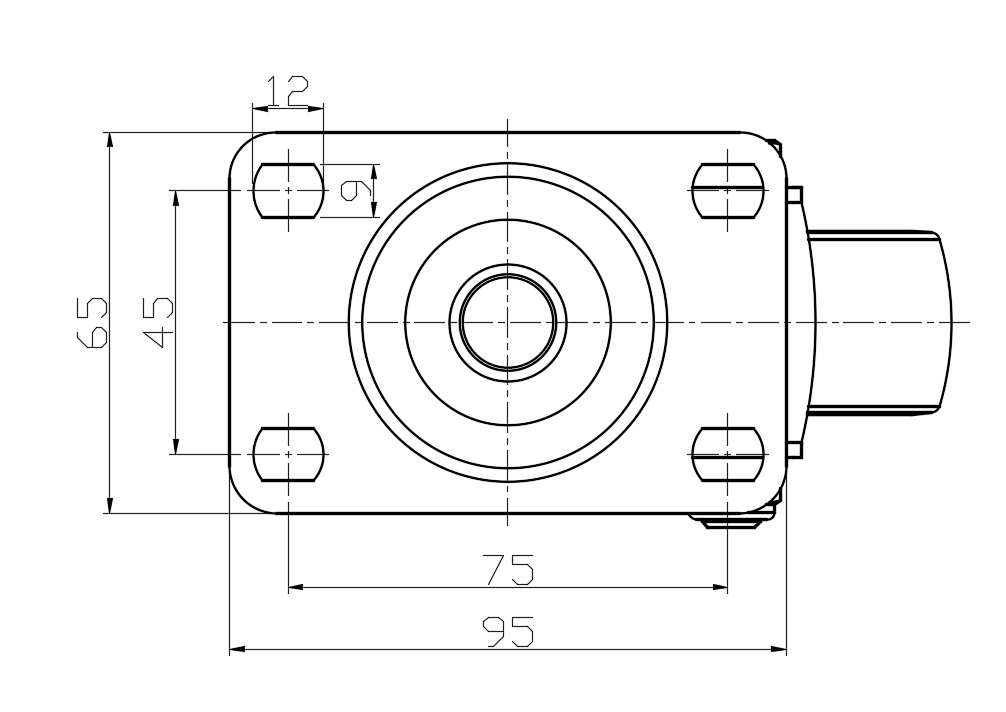

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　
　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 95 x 65mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 12 x 9mm　
　　Offset 38mm　
　　Swivel Interference 152mm　
　　Overall Height 105.5mm　
　　Swivel Radius 76mm　
　　Hardness Of Tread 65±5° Shore D　
　　Load Capacity (Dynamic) 100kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 150kgs　
　　Temperature -10°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.65kgs　
　　Standard ISO22883
　　
　　
