    Product Data Sheet

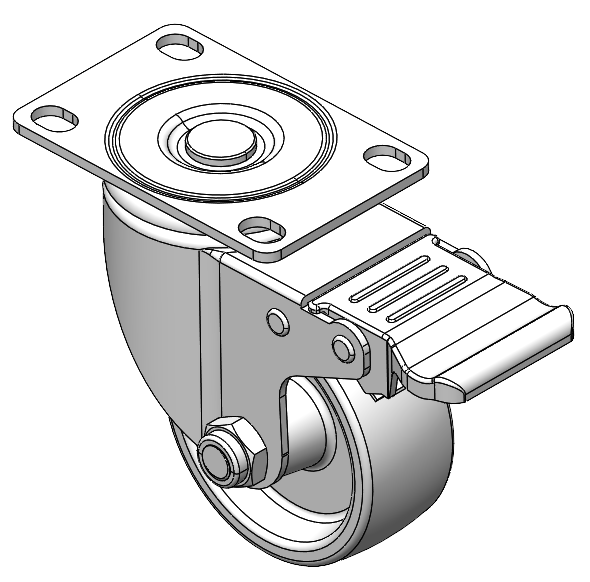

1139-1 Series — Medium Duty General Purposes Caster (American Style)
　　Nylon Wheel (Natural Color) Wheel Diameter × Width 75 × 32 mm
　　EAN
　　　　　 　　　
　　YJ-11390300074913 　　　
Casters with Total Brakes and With locking system. Top Plate Riveted and Stamping with 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing.
Zine-Plated, Mounting Type - Top Plate.
Reinforced Polypropylene Wheel Center and Wheel Tread.
Bearings—Ball Bearings.
　　Wheel tread: Thermoplastic (PA6)
　　Wheel Center: Thermoplastic (PA6)

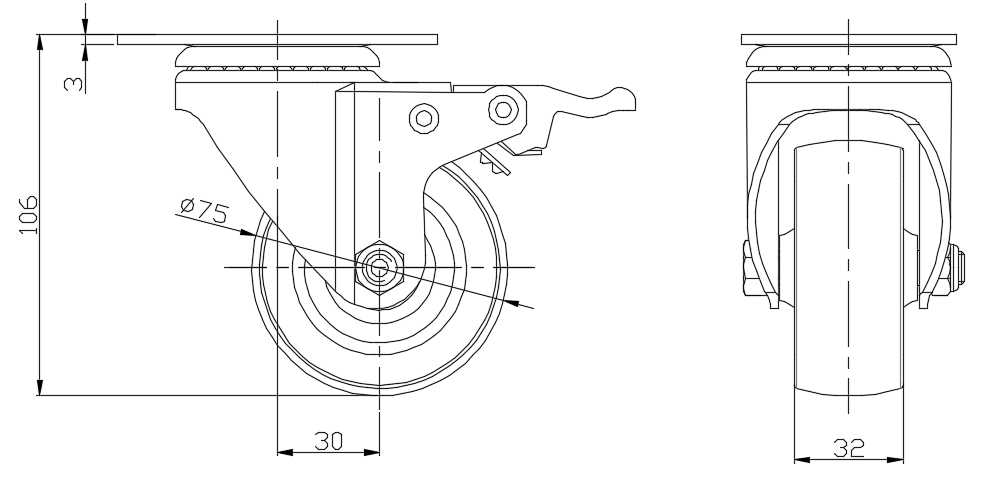

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 93 x 61mm　
　　Bolt Hole Spacing 73.5 x 45mm　
　　Plate Hole 12.9 x 9.5mm　
　　Offset 30mm　
　　Swivel Interference 213mm　
　　Overall Height 106mm　
　　Swivel Radius 106.5mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 100kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 150kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.68kgs　
　　Standard ISO22883
　　
　　
