    Product Data Sheet
1141 Kingpinless Caster Series
　　MRC (Transparent) Wheel Diameter × Wheel Width 100 x 32mm
　　EAN
　　　　　 KS-11410400071013
　　　　　 　　　
Rigid Caster, Welded Caster Fork
Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing
Reinforced Polypropylene, natural Wheel Tread
Bearing—Ball Bearing
　　Wheel surface: Thermoplastic plastic (PA6)
　　Wheel Center: Thermoplastic plastic (PA6)

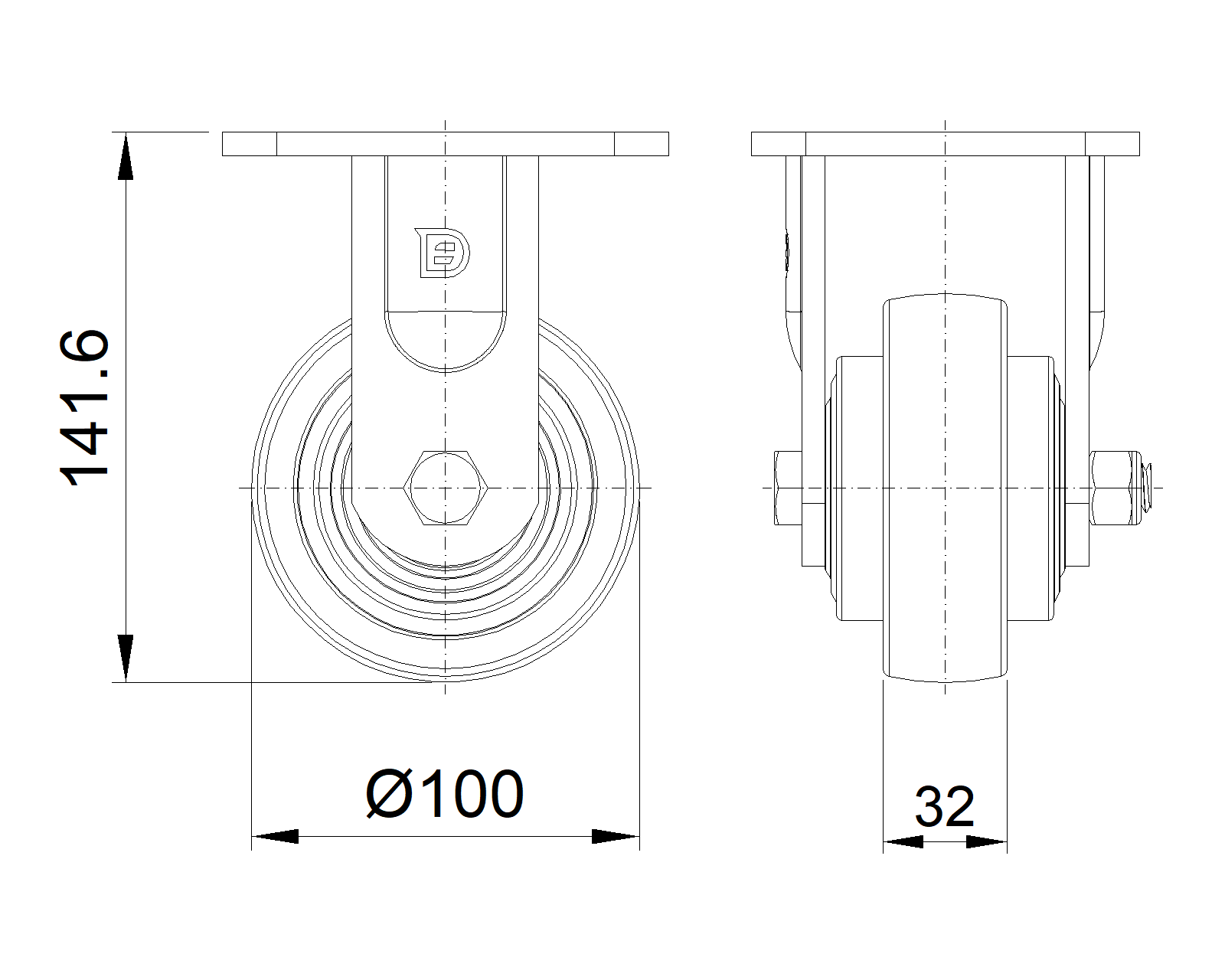

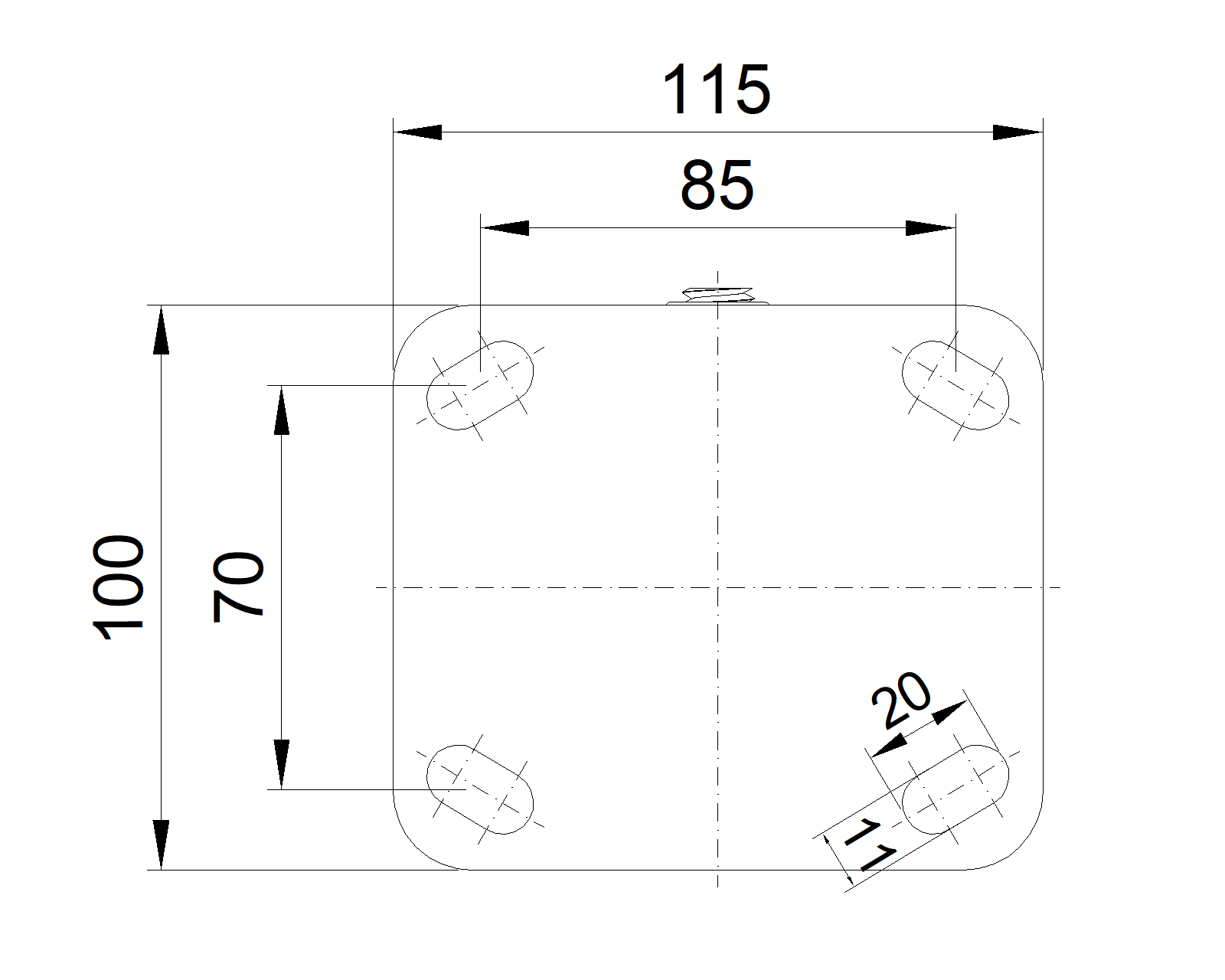

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Overall Height 141.6mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 375kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.48kgs　
　　Standard ISO22883
　　
　　
