    Product Data Sheet

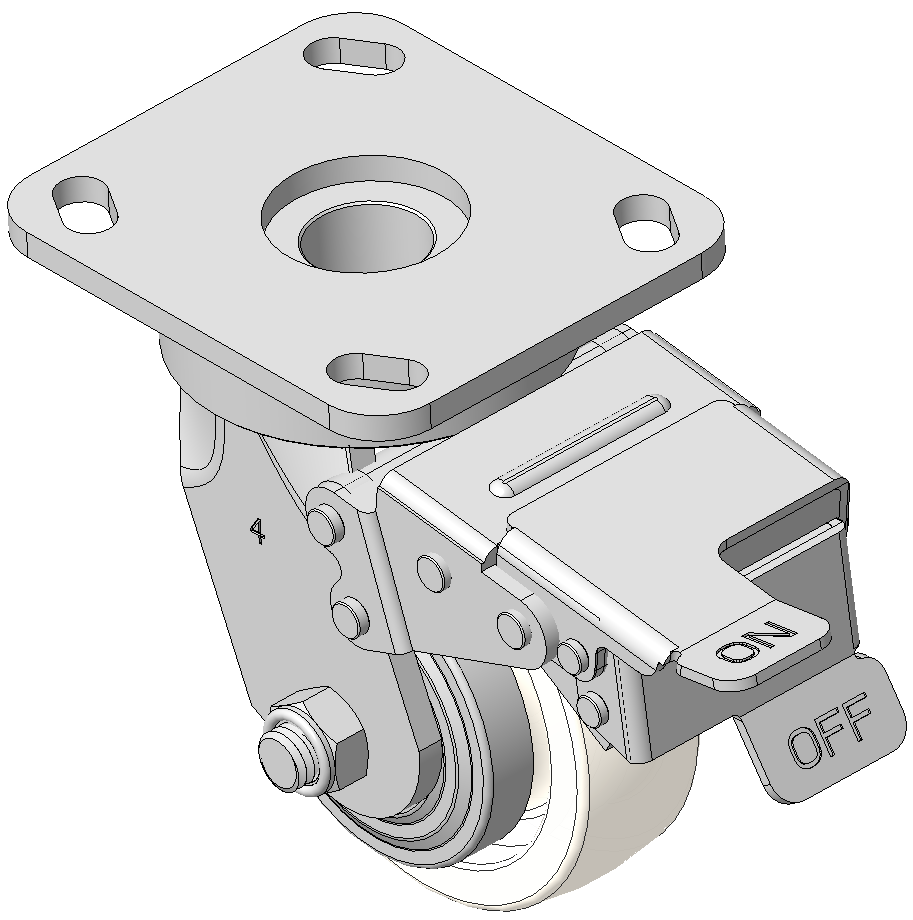

1141 Kingpinless Caster Series
　　MRC (Transparent) Wheel Diameter × Wheel Width 100 x 35mm
　　EAN
　　　　　 KS-11410400074113
　　　　　 　　　
Equipped with front brake, locking Casters, Welded Caster Fork.
Zine-Plated surface, Mounting Type - Top Plate, 85x70mm Bolt Hole Spacing.
Reinforced Polypropylene Wheel Center and rim, natural color.
Bearings—Ball Bearings.
　　Wheel surface: Thermoplastic (PA6)
　　Wheel Center: Thermoplastic (PA6)

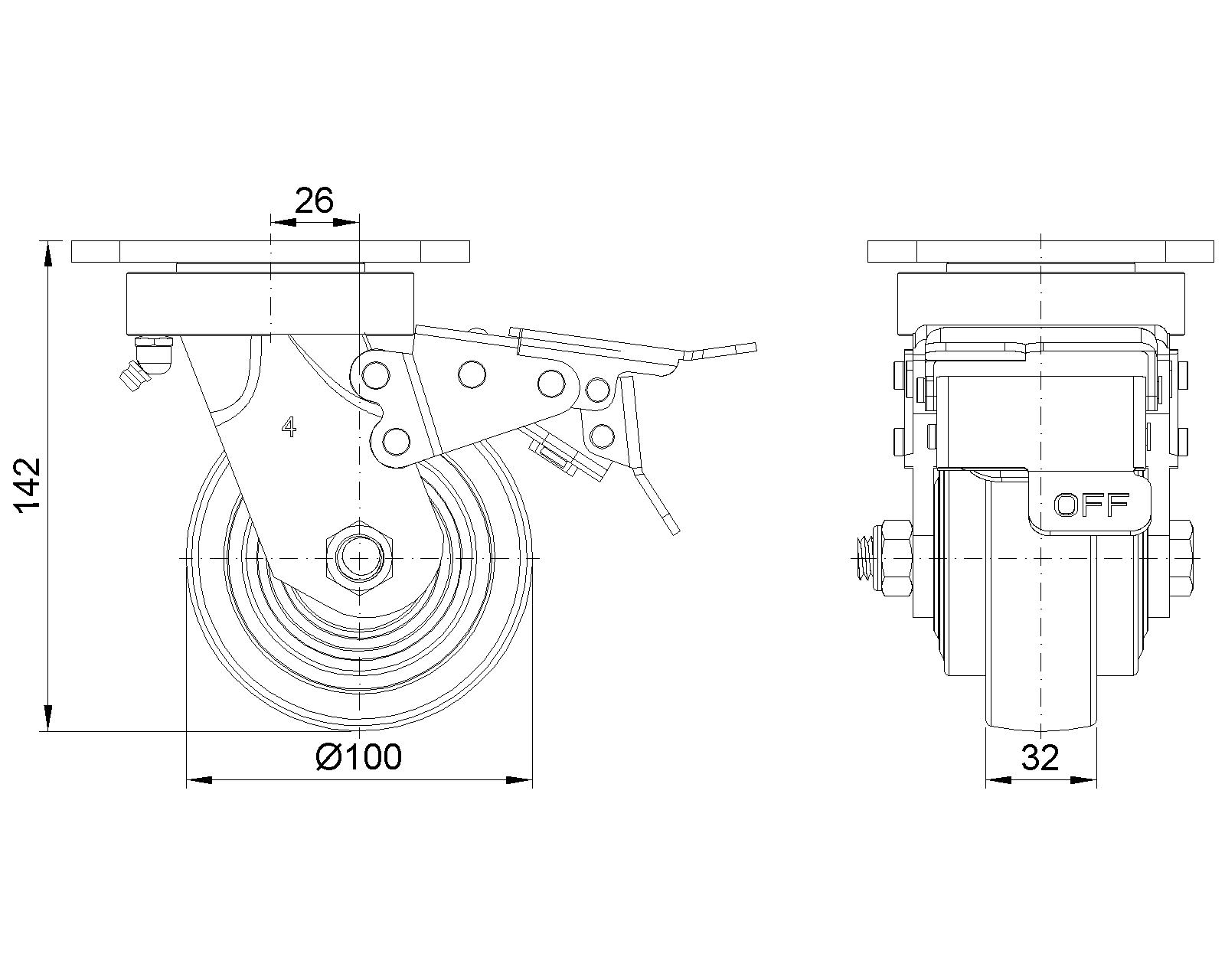

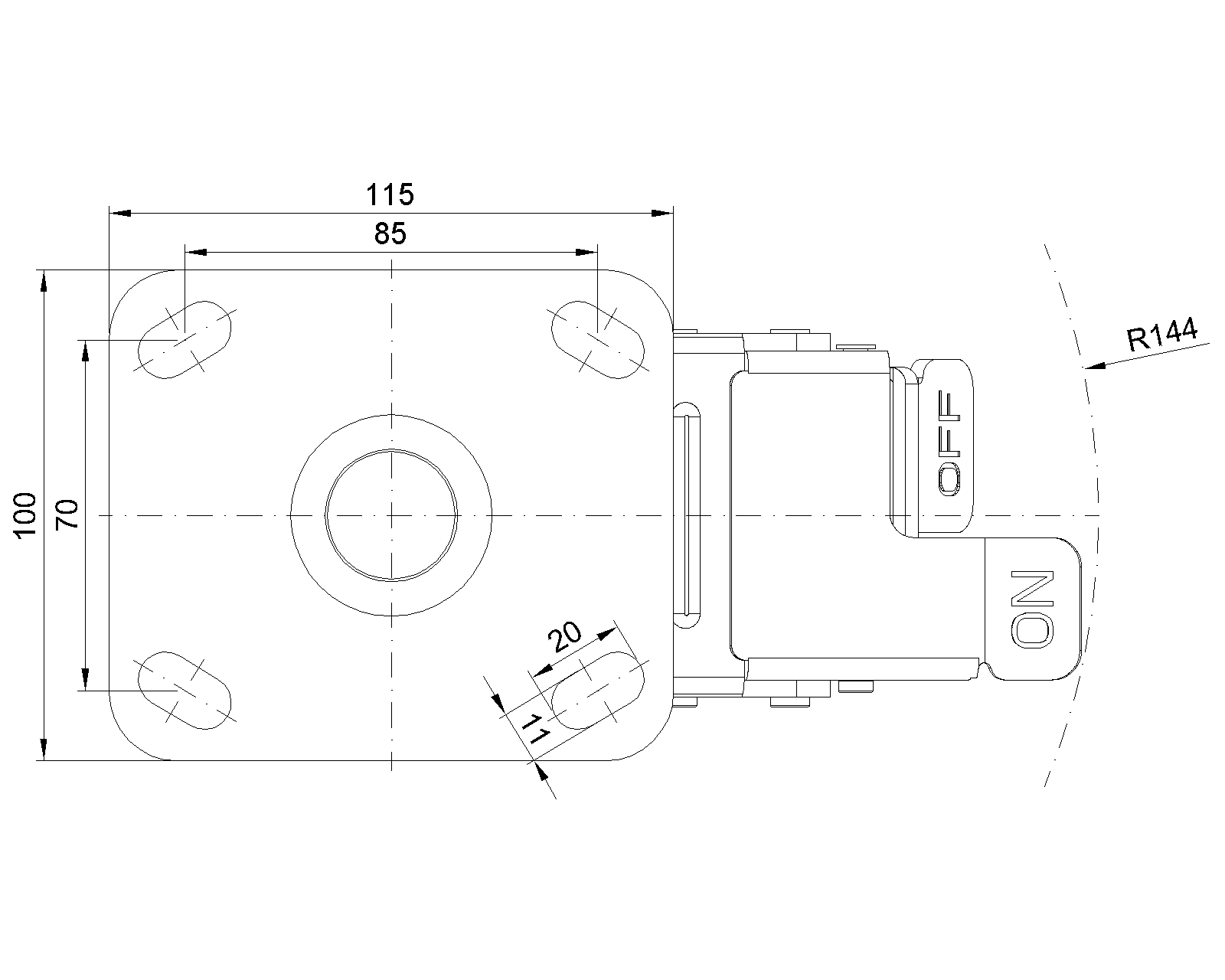

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 26mm　
　　Swivel Interference 288mm　
　　Overall Height 141.6mm　
　　Swivel Radius 144mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 375kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Front Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.82kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　

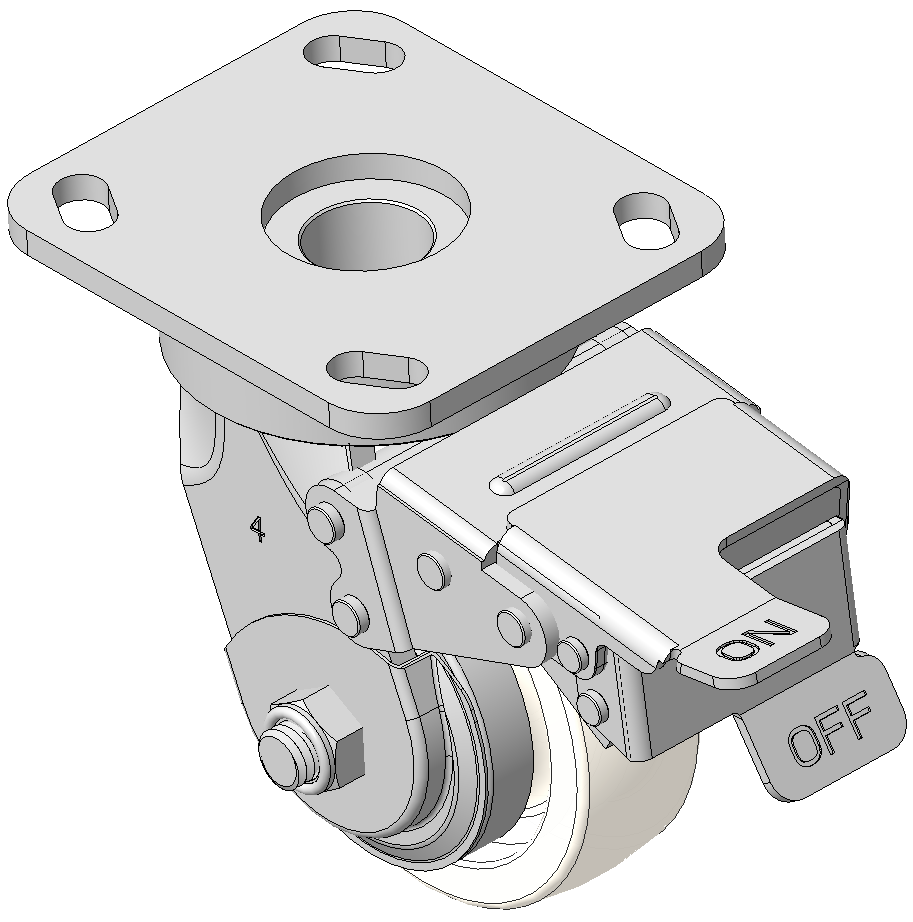

1141 Kingpinless Caster Series
