    Product Data Sheet

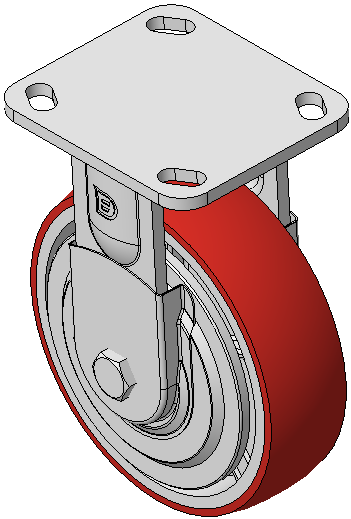

1141 Kingpinless Caster Series
　　PU (red round) Wheel Diameter x Wheel Width 150x 42mm
　　EAN
　　　　　 KS-11410600331123
　　　　　 　　　
Rigid Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing Cast Iron Wheel Center with High Quality Polyurethane tread, Cast Iron red Bearing—Ball Bearing with special anti-wrap caps
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

  　　Drawings are for reference only and may differ from the product




      Metric Imperial

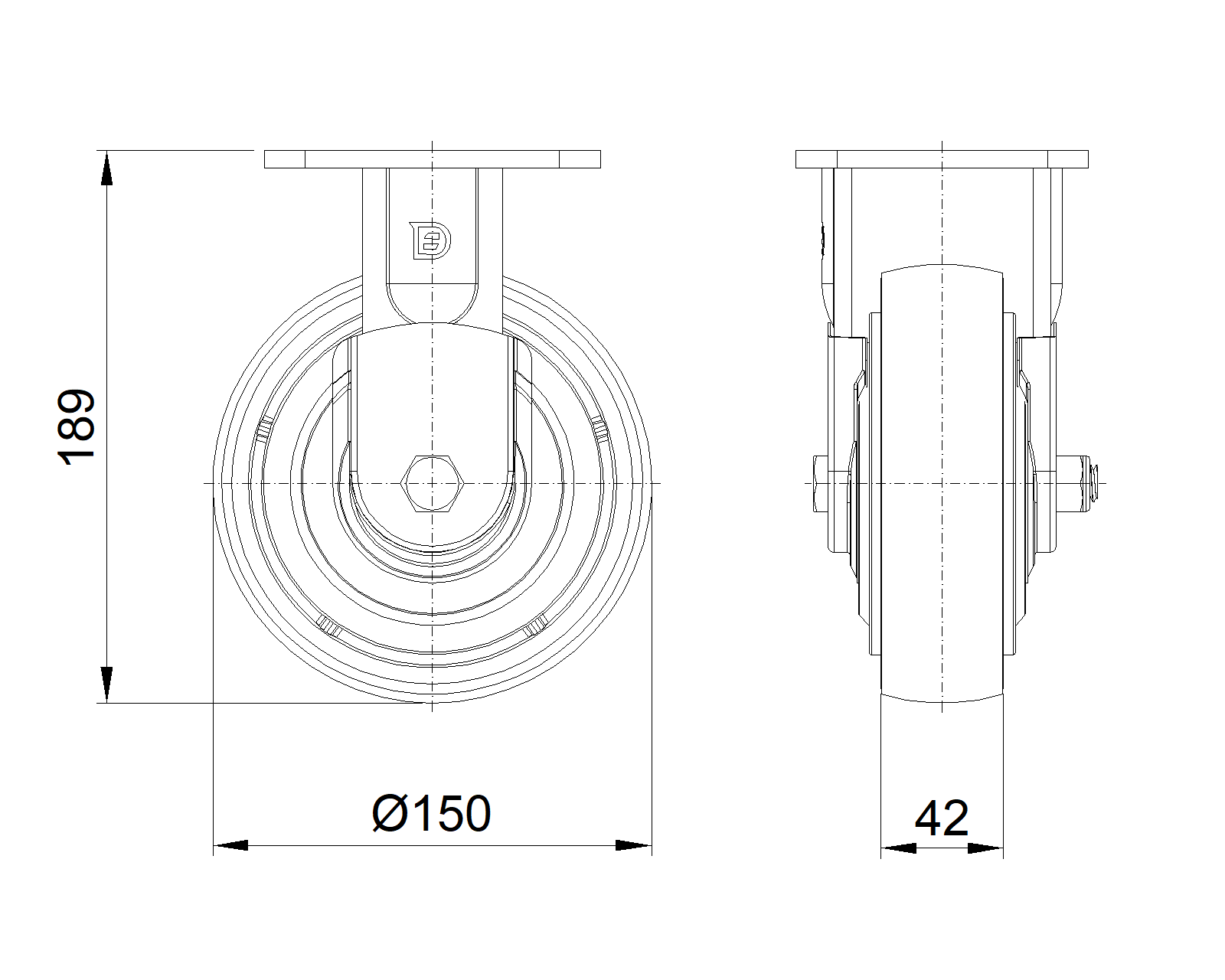

　　Wheel Diameter 150mm　

　　Wheel Width 42mm　
　　Wheel Bearing Wheels With Ball Bearings

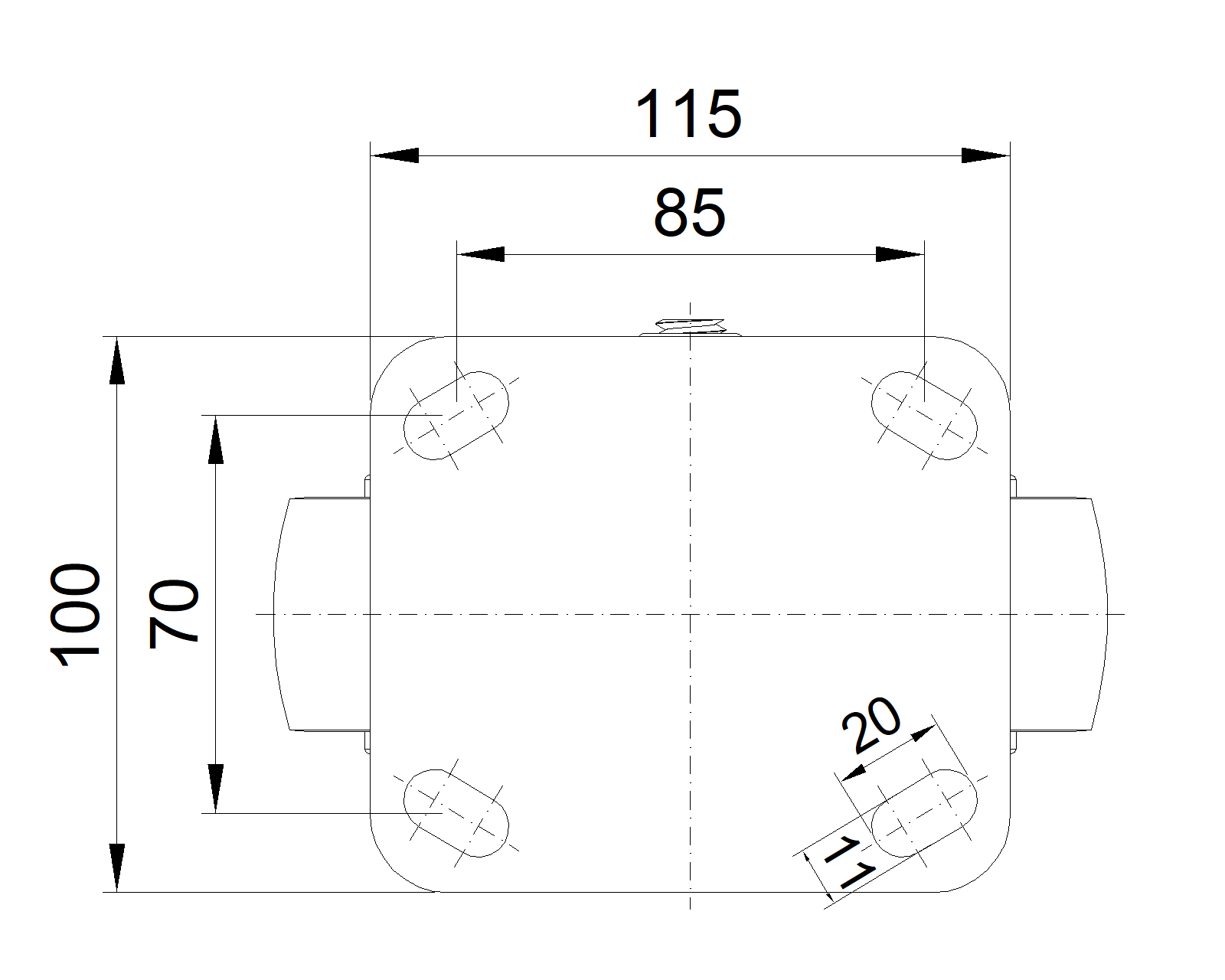

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Overall Height 189mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 410kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 615kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.99kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

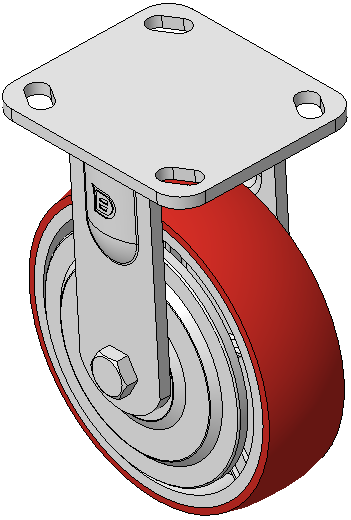

1141 Kingpinless Caster Series
PU (red round) Wheel Diameter x Wheel Width 150x 42mm
KS-11410600331113
150 mm 410 Kgs 189 mm
Rigid Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing Cast Iron Wheel Center with High Quality Polyurethane tread, Cast Iron red Bearing—Ball Bearing

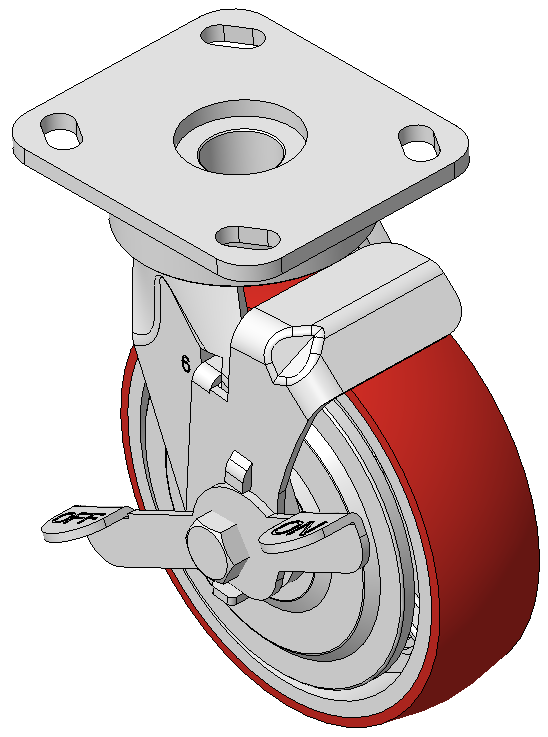

1141 Kingpinless Caster Series
PU (red round) Wheel Diameter x Wheel Width 150x 42mm
KS-11410600334043
150 mm 410 Kgs 189 mm
Casters with Side Brakes and With locking system, Welded Caster Fork
Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron red
Bearings—Ball Bearings
1141 Kingpinless Caster Series
PU (red round) Wheel Diameter x Wheel Width 150x 42mm
KS-11410600334053
150 mm 410 Kgs 189 mm
Casters with Side Brakes and With locking system, Welded Caster Fork
Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron red
Bearings—Ball Bearings with special Anti-thread wheel cover

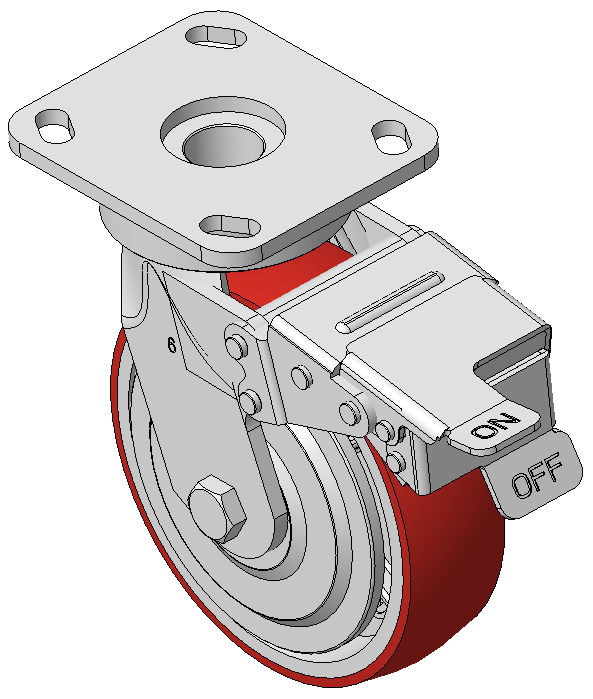

1141 Kingpinless Caster Series
PU (red round) Wheel Diameter x Wheel Width 150x 42mm
KS-11410600334143
150 mm 410 Kgs 189 mm
Casters with Side Brakes and With locking system, Welded Caster Fork
Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron red
Bearings—Ball Bearings

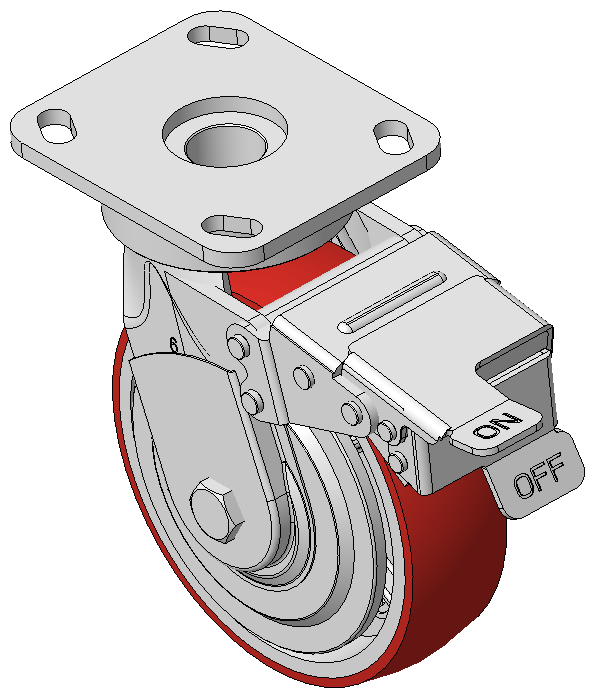

1141 Kingpinless Caster Series
