	1141 Kingpinless Caster Series
	PU (red round) Wheel Diameter x Wheel Width 150x 42mm
	EAN
	KS-11410600334043

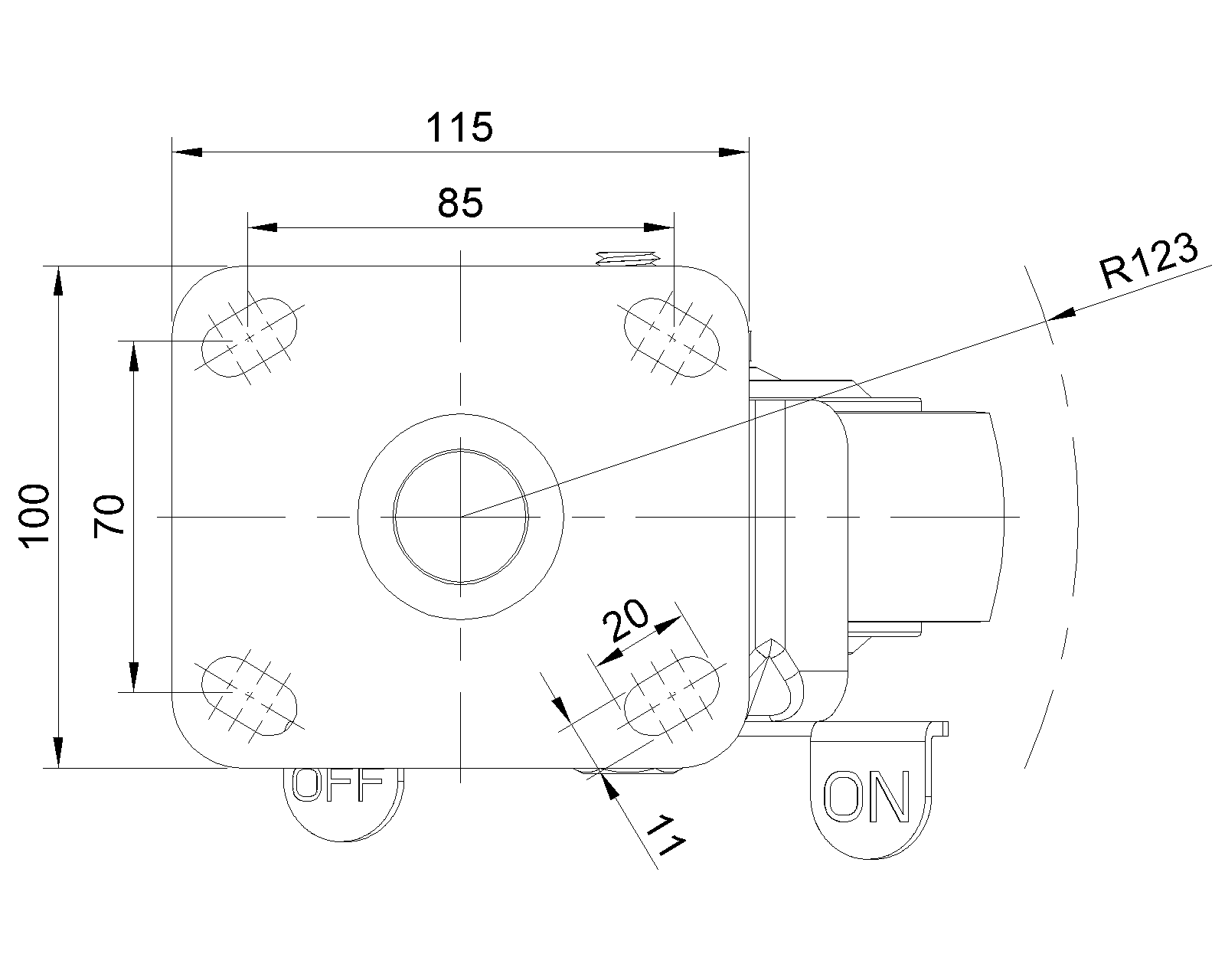

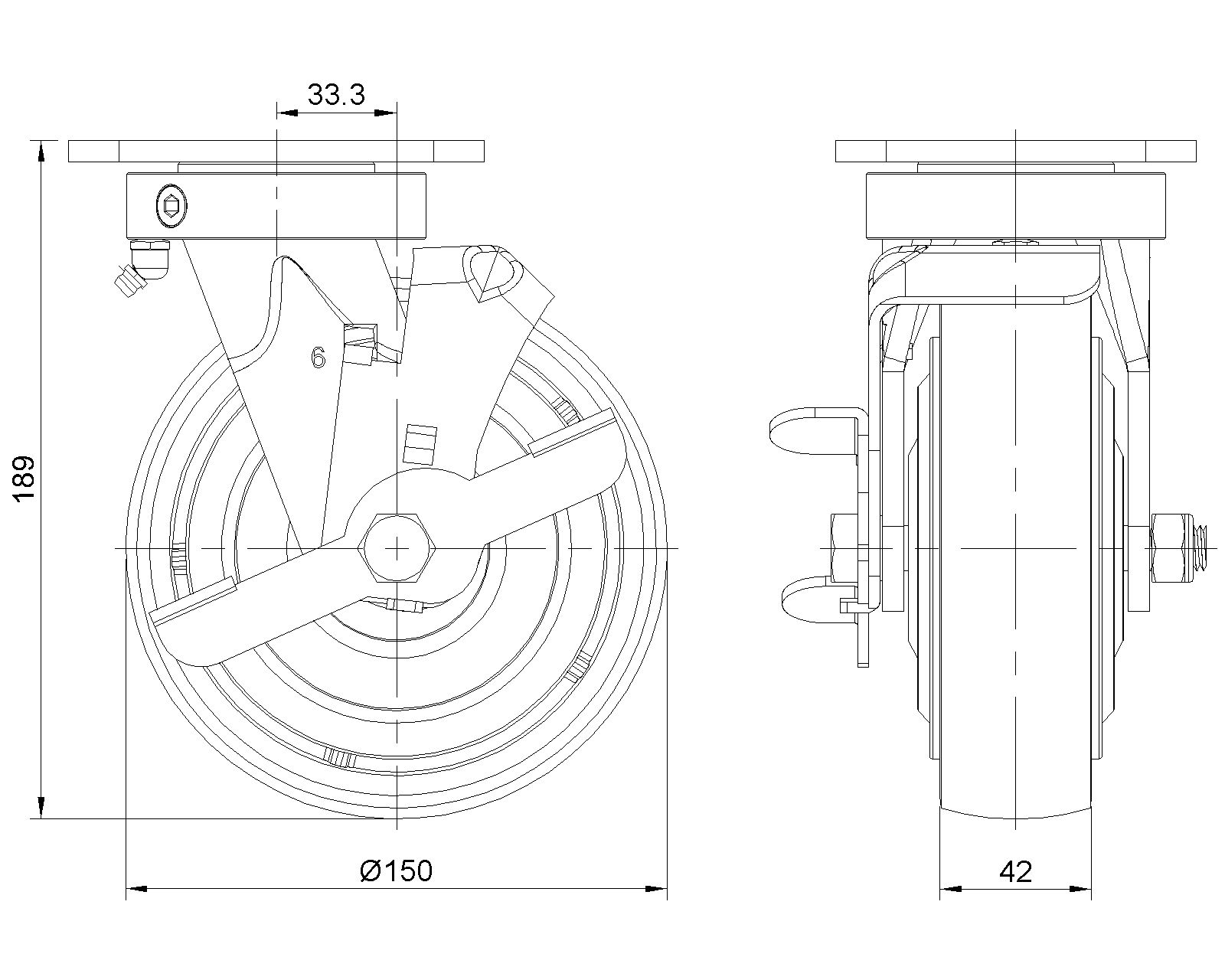

	Drawings are for reference only and may differ from the product

	Metric Imperial 　　Wheel Diameter 150mm　　　Wheel Width 42mm
	Wheel Bearing Wheels With Ball Bearings 　　Plate Size 115 x 100mm　　　Bolt Hole Spacing 85 x 70mm　　　Plate Hole 20 x 11mm　　　Offset 33.3mm　　　Swivel Interference 246mm　　　Overall Height 189mm　　　Swivel Radius 123mm　　　Hardness Of Tread 93±5° Shore A　　　Load Capacity (Dynamic) 260kgs	Rolling Resistance　　　 ● ● ● ○ ○ 　　Operating Noise　　　　 ● ● ● ● ○ 　　Floor Surface Preservation ● ● ● ● ○
	Load Capacity (Static) 390kgs　　　Temperature -20°C to +70°C　　　Fork Type Swivel Caster With Side Brake
	Stainless N/A 　　Electrical Conductivity N/A 　　Anti-Static N/A 　　Weight 3.53kgs　　　Standard ISO22883
