    Product Data Sheet
1141 Kingpinless Caster Series
　　PPU (black and red) Wheel Diameter x Wheel Width 100 x 50 mm
　　EAN
　　　　　 KS-11410400314123
　　　　　 　　　
Casters with Front Brake locking system, Welded Caster Fork Extended control lever surface, Top Plate Mounting Type, Hole spacing 85x70 Polypropylene Wheel Center, Wheel Tread Natural Color Bearing - Ball Bearing
　　Wheel tread: Made of high quality polyurethane
　　Wheel Center: iron core/cast iron core

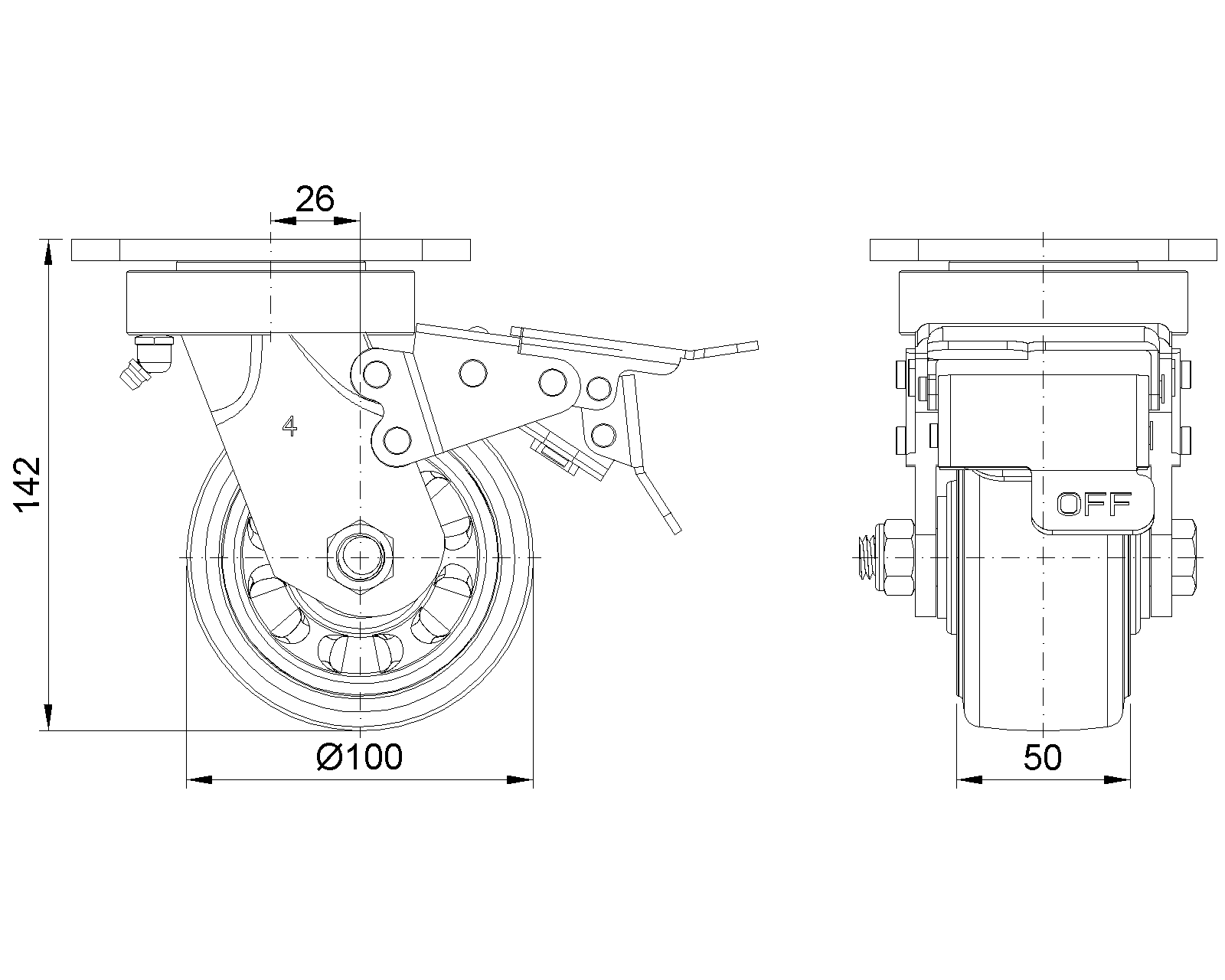

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings

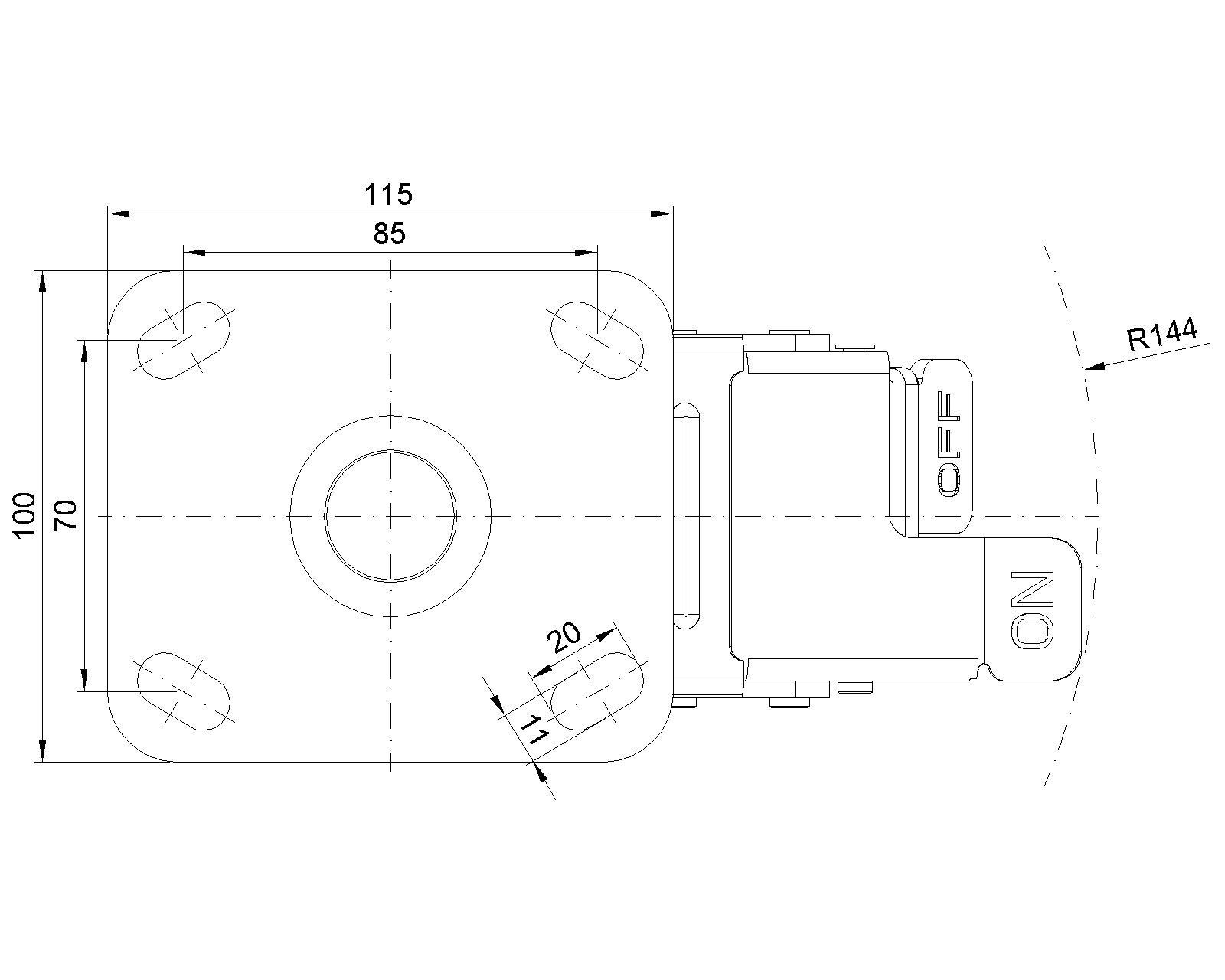

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 26mm　
　　Swivel Interference 288mm　
　　Overall Height 142mm　
　　Swivel Radius 144mm　
　　Hardness Of Tread 94±5° Shore A　
　　Load Capacity (Dynamic) 270kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 405kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Front Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.01kgs　
　　Standard ISO22883
　　
　　
