    Product Data Sheet
1141 Kingpinless Caster Series
　　PPU (black and red) Wheel Diameter x Wheel Width 100 x 50 mm
　　EAN
　　　　　 KS-11410400313023
　　　　　 　　　
Caster with directional brake and With locking system, Welded Caster Fork
Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron black and red
Bearings—Ball Bearings
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

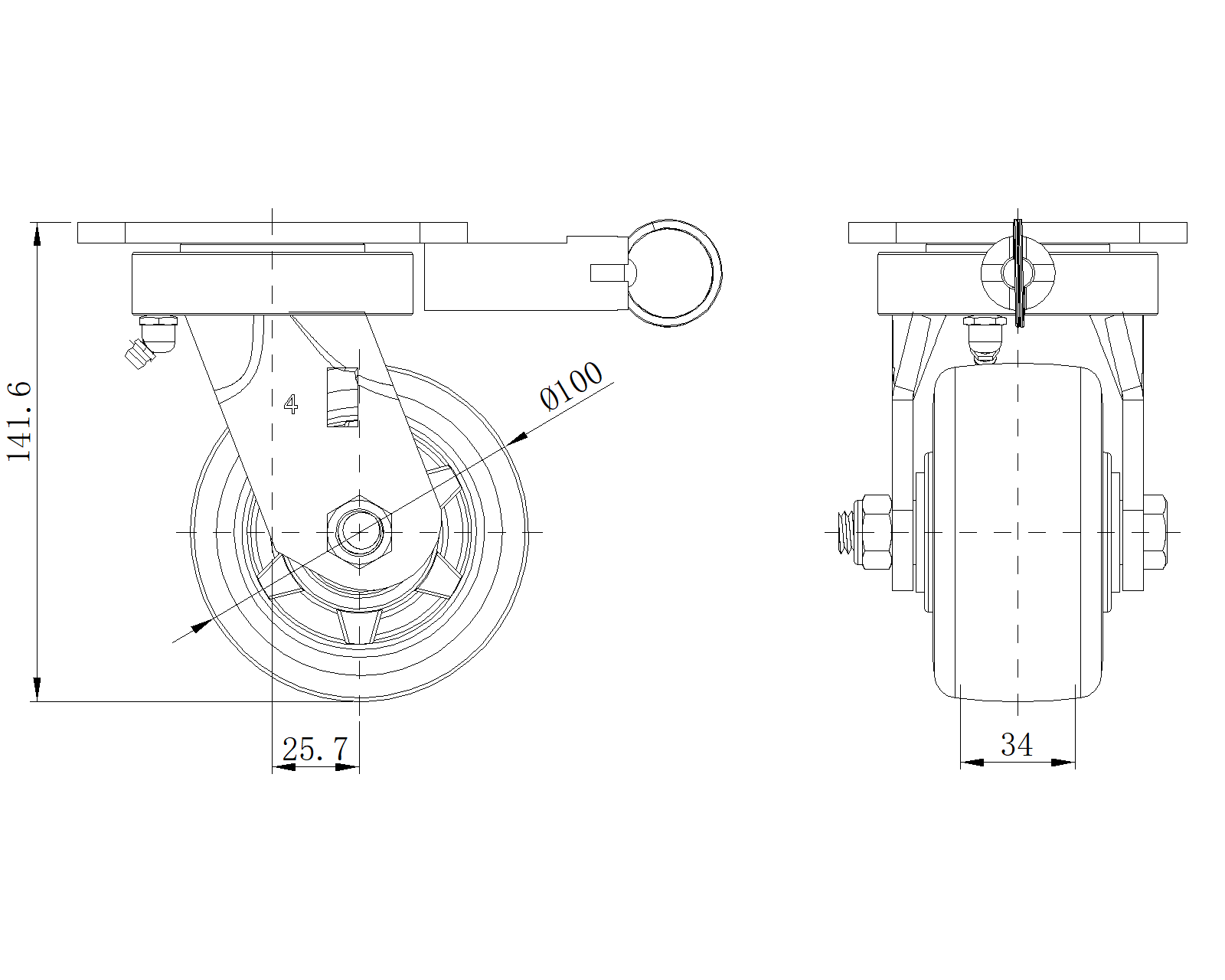

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　
　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings

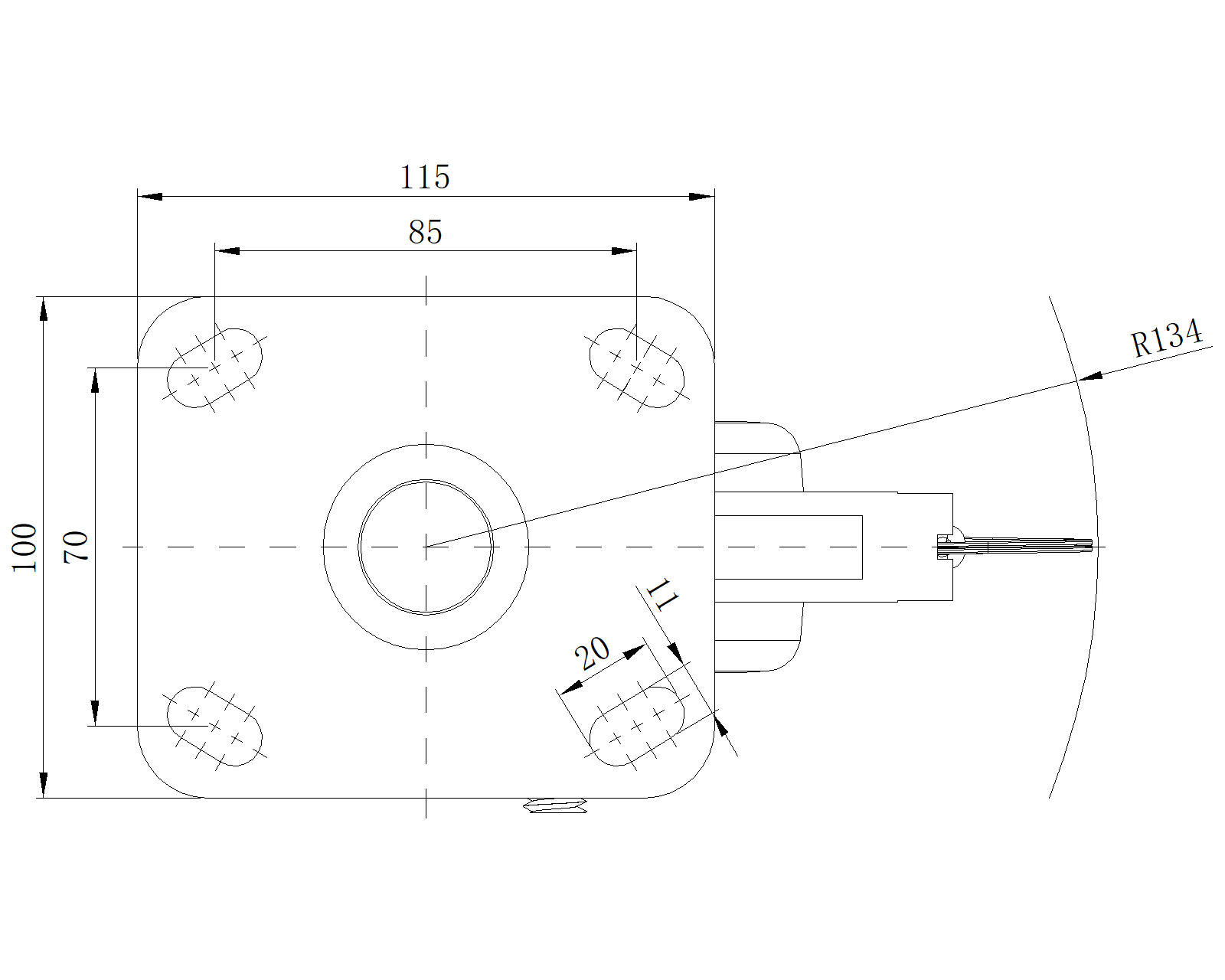

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 25.7mm　
　　Swivel Interference 268mm　
　　Overall Height 141.6mm　
　　Swivel Radius 134mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 270kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 405kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Directional Lock
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.28kgs　
　　Standard ISO22883
　　
　　
