Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing
Reinforced Polypropylene Wheel Center, natural Wheel Tread
Bearing—Ball Bearing with special anti-wrap wheel cap
Wheel Center: Thermoplastic (PA6)

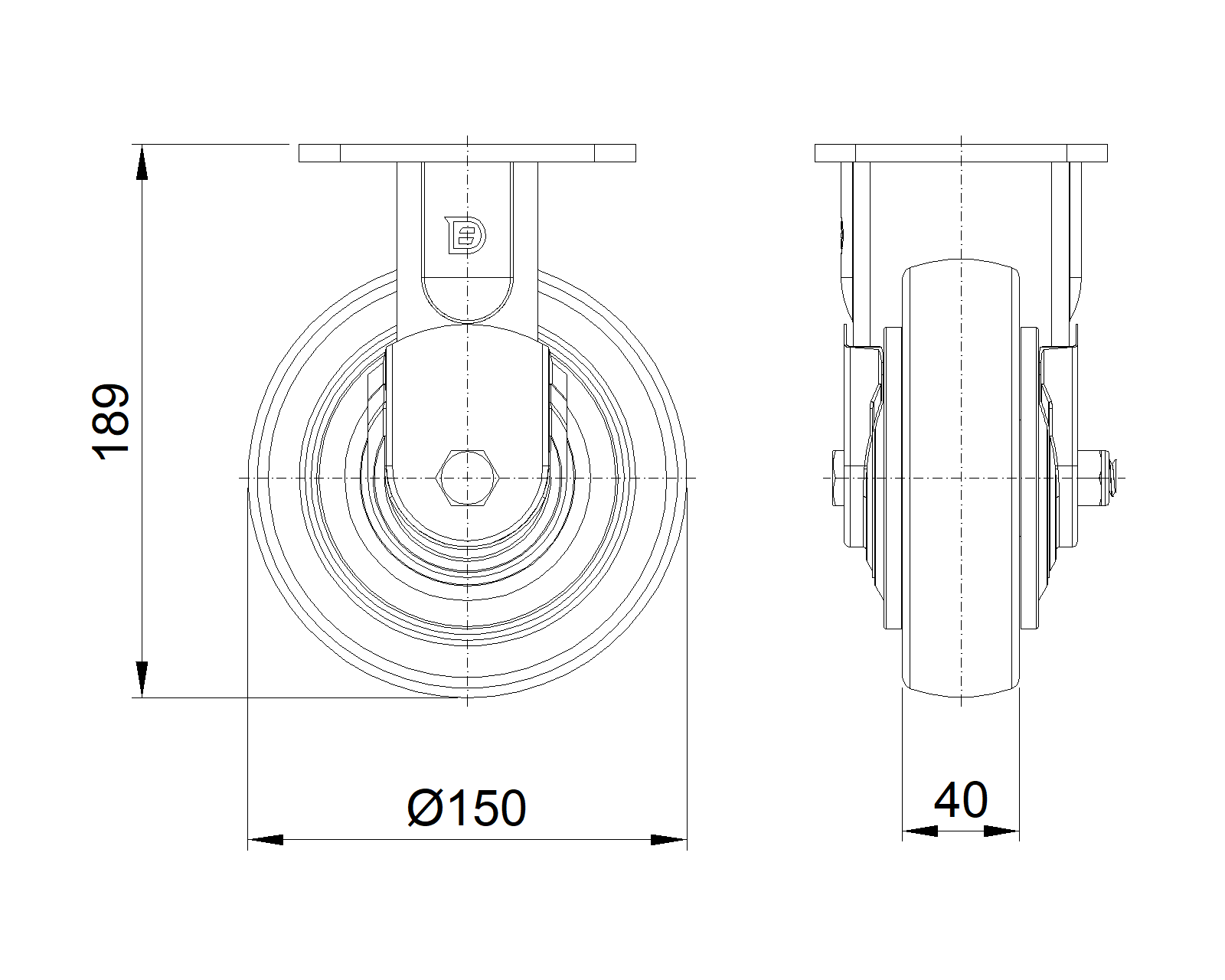

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
150mm
Wheel Width
40mm
Wheel Bearing
Wheels With Ball Bearings

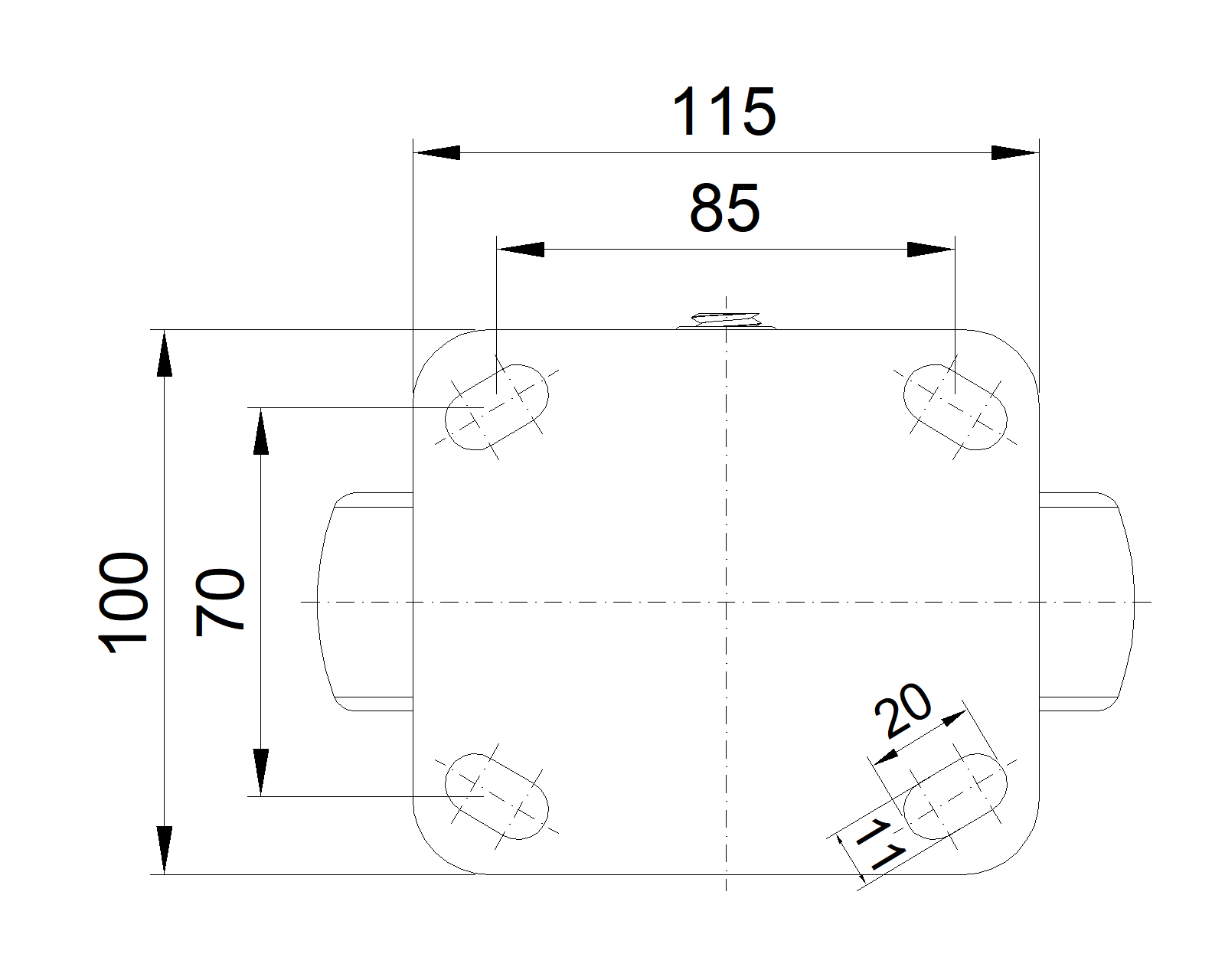

Plate Size
115 x 100mm
Bolt Hole Spacing
85 x 70mm
Plate Hole
20 x 11mm
Overall Height
189mm
Hardness Of Tread
75±5° Shore D
Load Capacity (Dynamic)
400kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ○ ○ ○
Floor Surface Preservation ● ● ○ ○ ○
Load Capacity (Static)
600kgs
Temperature
-20°C to +80°C
Fork Type
Rigid Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
2.03kgs
Standard
ISO22883
150 mm
350 Kgs
189 mm
