    Product Data Sheet
1141 Kingpinless Caster Series
　　CPD Wheel Diameter x Wheel Width 150 x 40mm
　　EAN
　　　　　 KS-11410600294113
　　　　　 　　　
Casters with Side Brakes and With locking system, Welded Caster Fork
Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing
Polypropylene Wheel Center, natural Wheel Tread
Bearings—Ball Bearings
　　Wheel surface: PP polypropylene
　　Wheel Center: PP polypropylene

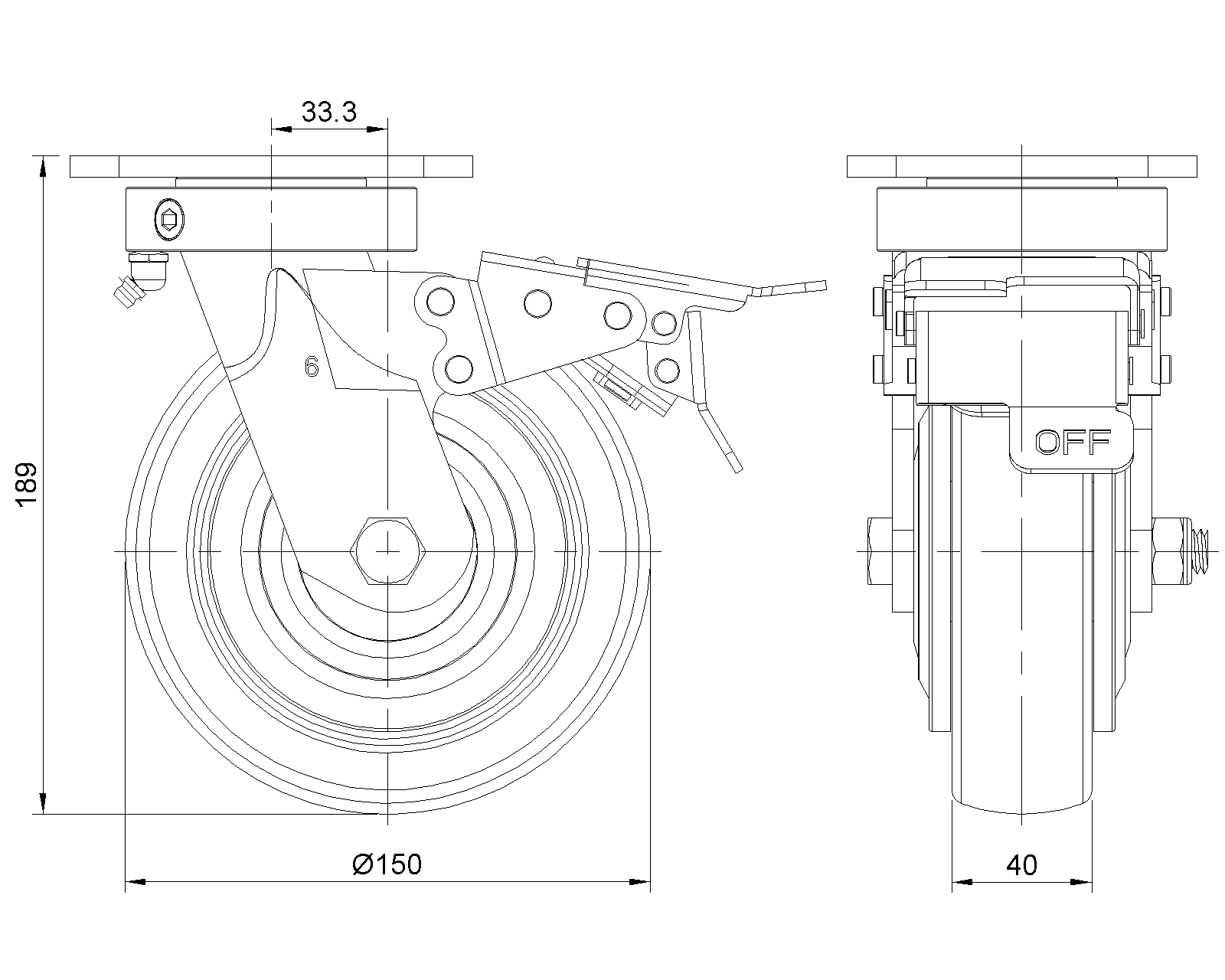

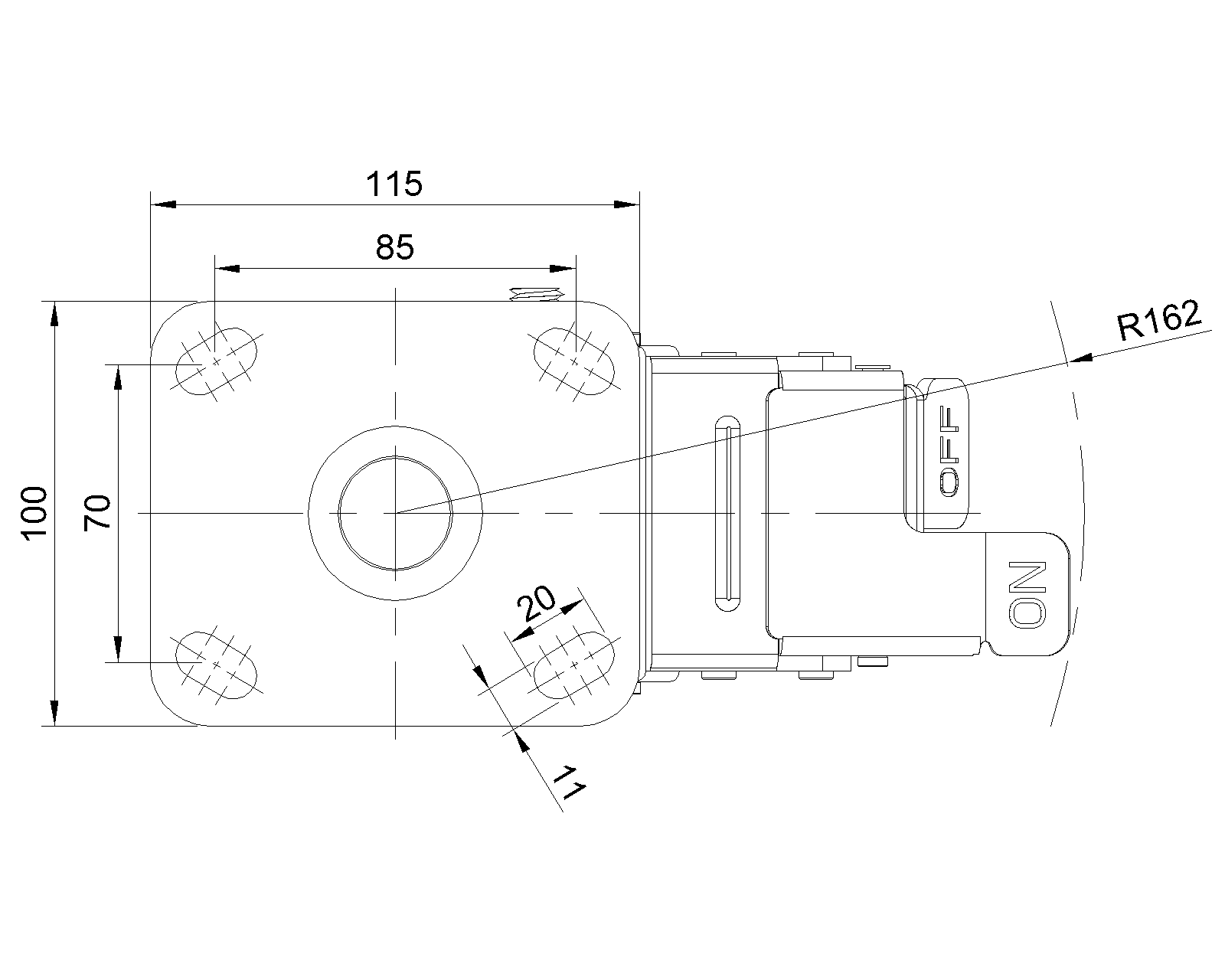

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 33.3mm　
　　Swivel Interference 324mm　
　　Overall Height 189mm　
　　Swivel Radius 162mm　
　　Hardness Of Tread 72±5° Shore D　
　　Load Capacity (Dynamic) 350kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 525kgs　
　　Temperature -12°C to +60°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 3.36kgs　
　　Standard ISO22883
　　
　　
