    Product Data Sheet
1141 Kingpinless Caster Series
　　WHDR (pearl light gray) Wheel Diameter x Wheel Width 150 x 50mm
　　EAN
　　　　　 KS-11410600502723A
　　　　　 　　　
Swivel Caster with Welded Caster Fork
Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing
Cast Iron core with High Quality Polyurethane Wheel Tread, Cast Iron pearlescent light gray
Bearing—Ball Bearing
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

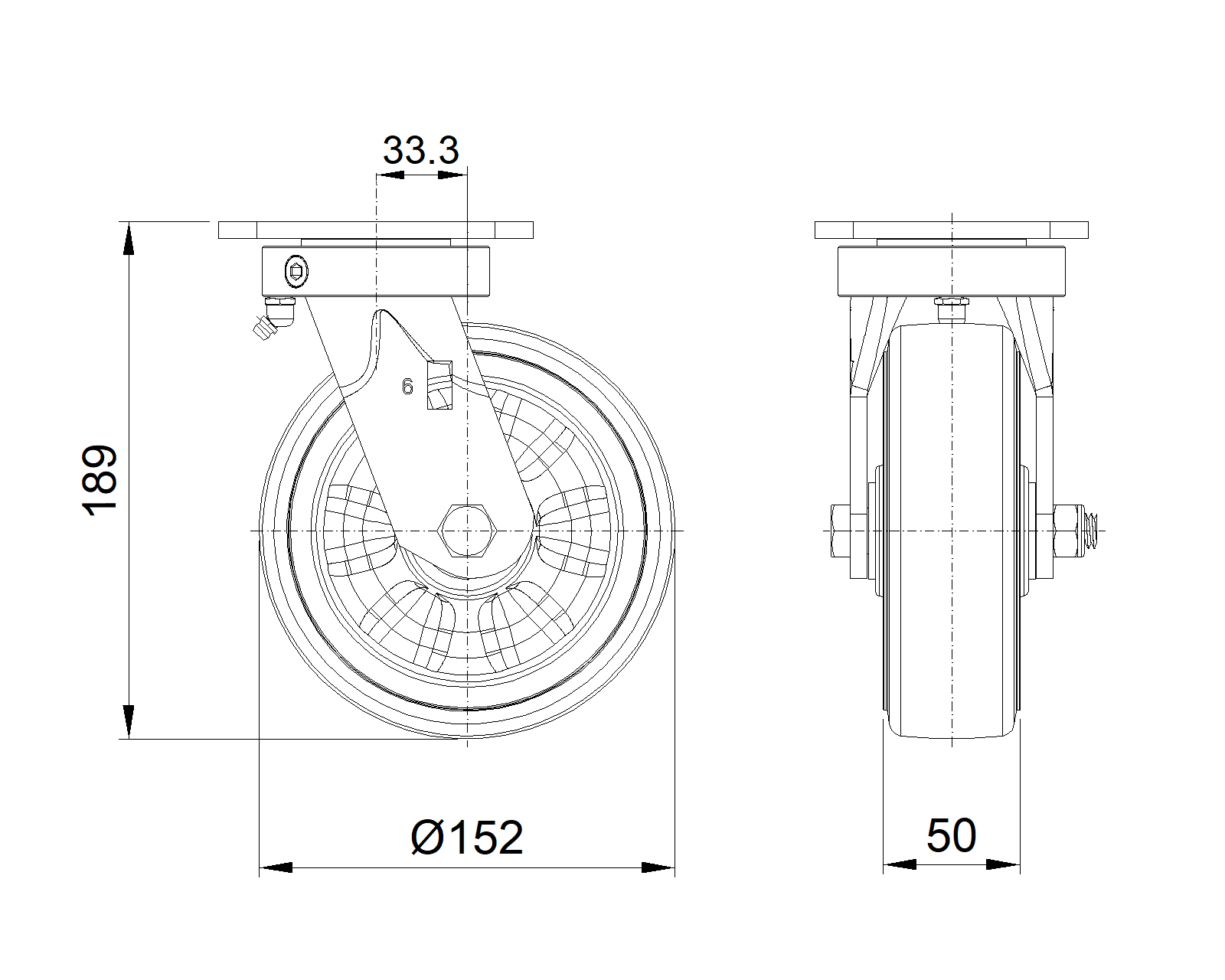

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings

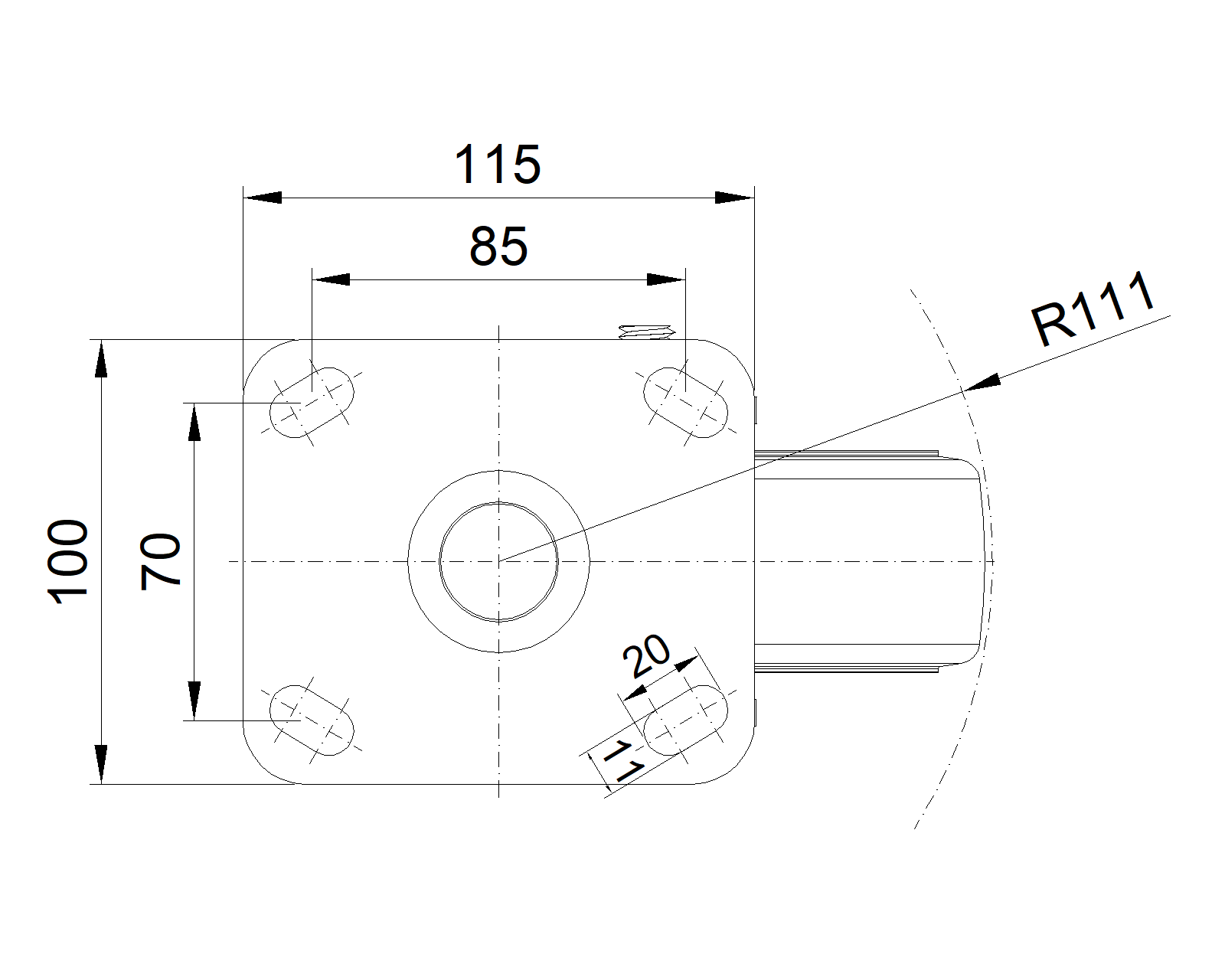

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 33.3mm　
　　Swivel Interference 222mm　
　　Overall Height 189mm　
　　Swivel Radius 111mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 408kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 612kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.55kgs　
　　Standard ISO22883
　　
　　
