    Product Data Sheet
1141 Kingpinless Caster Series
　　WHDR (pearl light gray) Wheel Diameter x Wheel Width 150 x 50mm
　　EAN
　　　　　 KS-11410600504733A
　　　　　 　　　
Caster with front brake and With locking system, Welded Caster Fork
Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron pearlescent light gray
Bearings—Ball Bearings
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

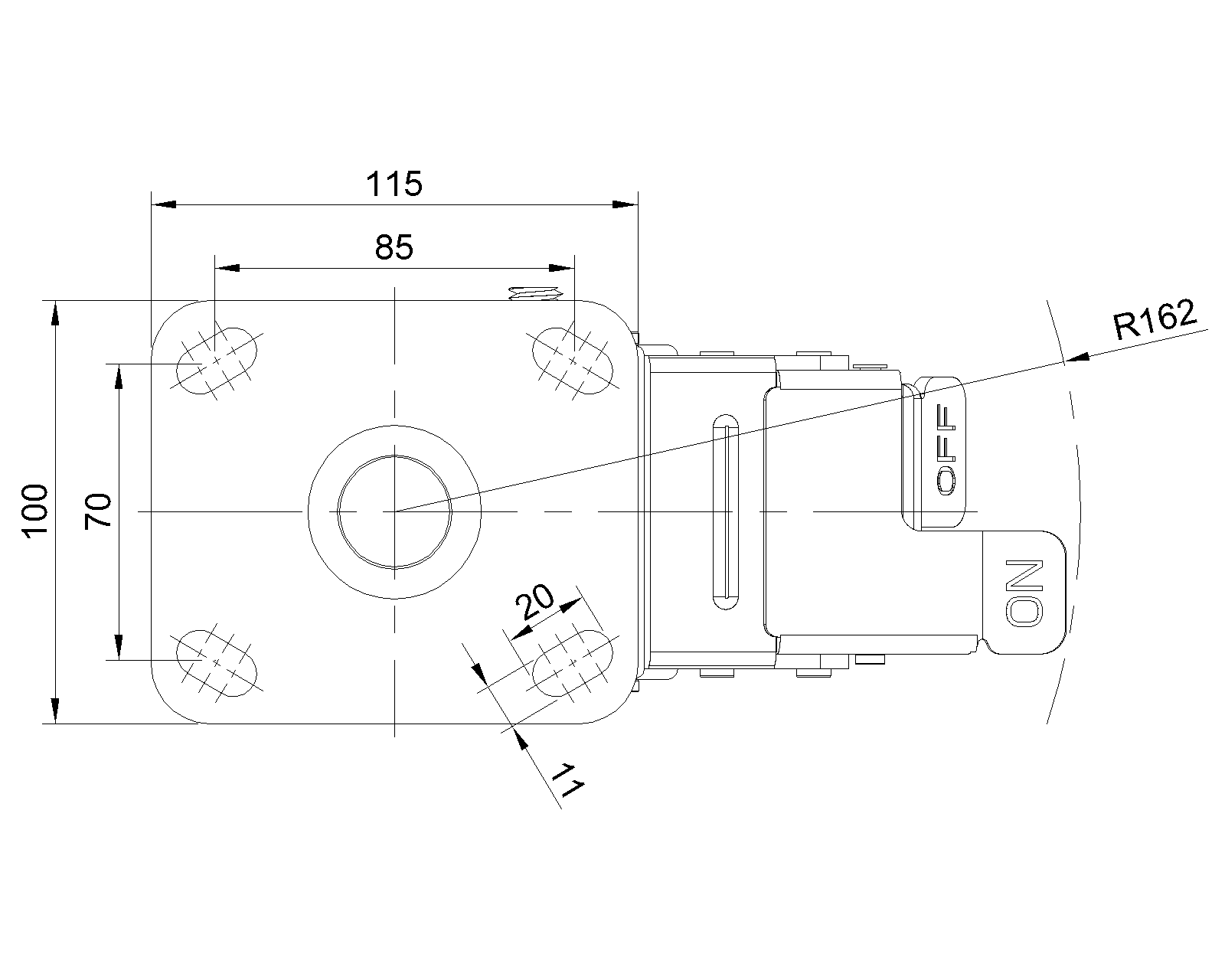

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 33.3mm　
　　Swivel Interference 324mm　
　　Overall Height 189mm　
　　Swivel Radius 162mm　
　　Hardness Of Tread 95±5° Shore A　
　　Load Capacity (Dynamic) 408kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 612kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Front Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 4.55kgs　
　　Standard ISO22883
　　
　　
