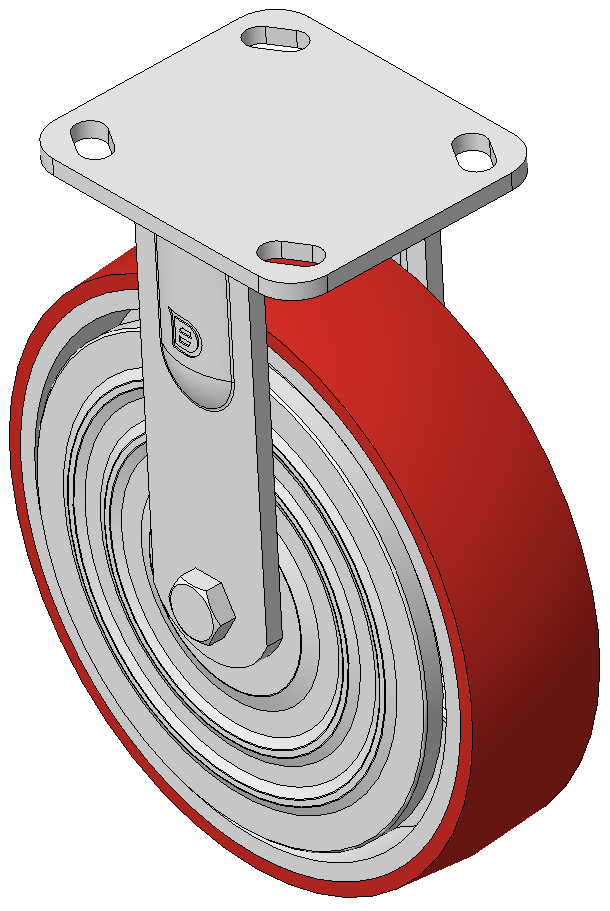

1141 Kingpinless Caster Series
　　PU (red round) Wheel Diameter x Wheel Width 200 x 50mm
　　EAN
　　　　　 KS-11410800331113
　　　　　 　　　
　　
　　

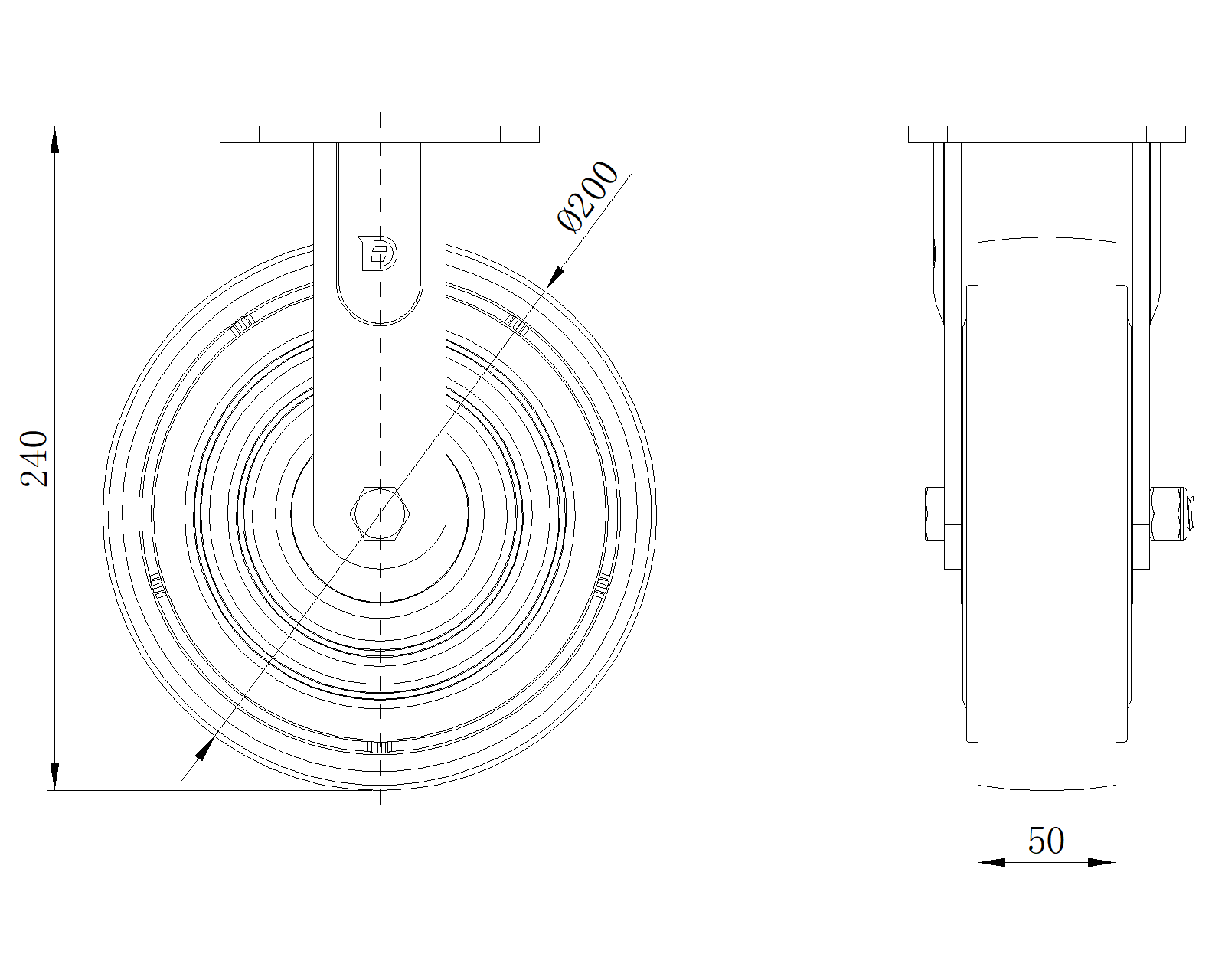

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 200mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Overall Height 240mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 300kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 450kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 4.48kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　

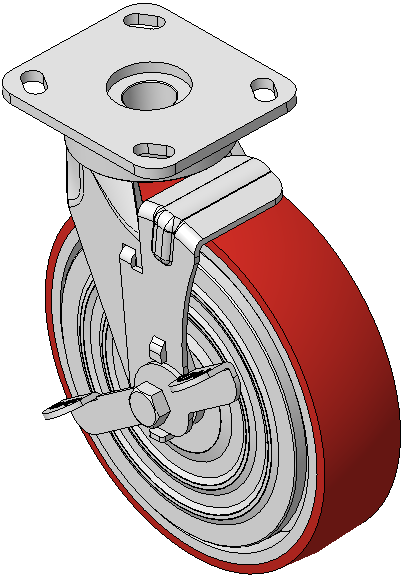

1141 Kingpinless Caster Series
PU (red round) Wheel Diameter x Wheel Width 200 x 50mm
KS-11410800334113
200 mm 300 Kgs 240 mm
1141 Kingpinless Caster Series
PU (red round) Wheel Diameter x Wheel Width 200 x 50mm
KS-11410800334123
200 mm 300 Kgs 240 mm

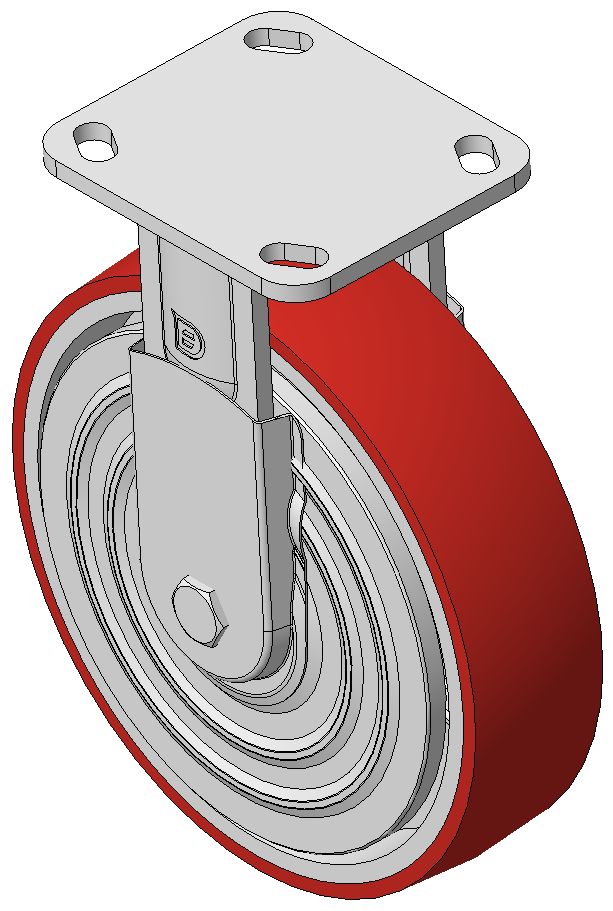

1141 Kingpinless Caster Series
PU (red round) Wheel Diameter x Wheel Width 200 x 50mm
KS-11410800331123
200 mm 300 Kgs 240 mm

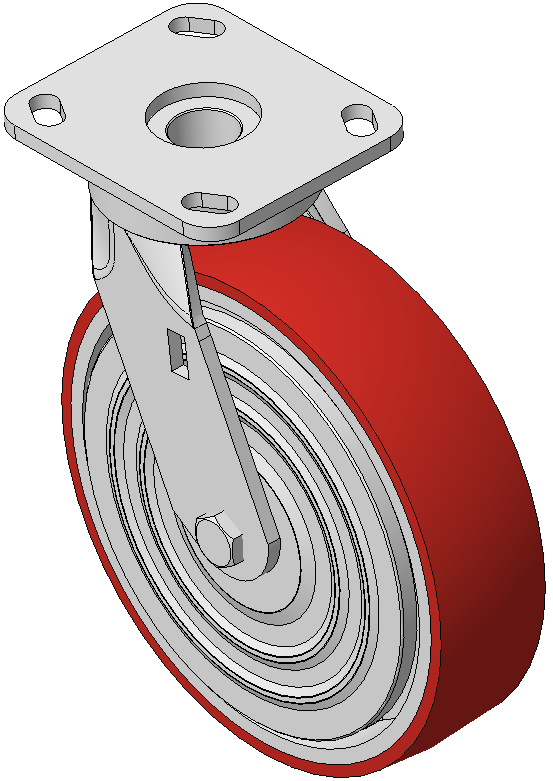

1141 Kingpinless Caster Series
PU (red round) Wheel Diameter x Wheel Width 200 x 50mm
KS-11410800332113
200 mm 300 Kgs 240 mm

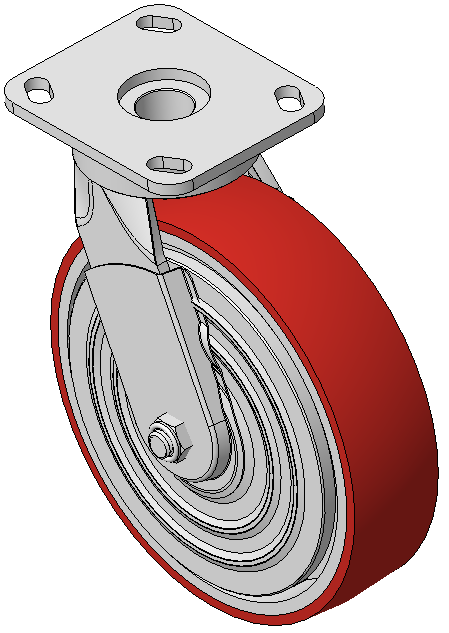

1141 Kingpinless Caster Series
