    Product Data Sheet
1141 Kingpinless Caster Series
　　PU (red round) Wheel Diameter x Wheel Width 200 x 50mm
　　EAN
　　　　　 KS-11410800331123
　　　　　 　　　
Rigid castor, Welded Caster Fork Extended control lever surface, Top Plate installation, Hole spacing 85x70 Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron red Bearing - Ball Bearing, with special Anti-thread wheel cover
　　Wheel tread: Made of high quality polyurethane
　　Wheel center: iron core/cast iron

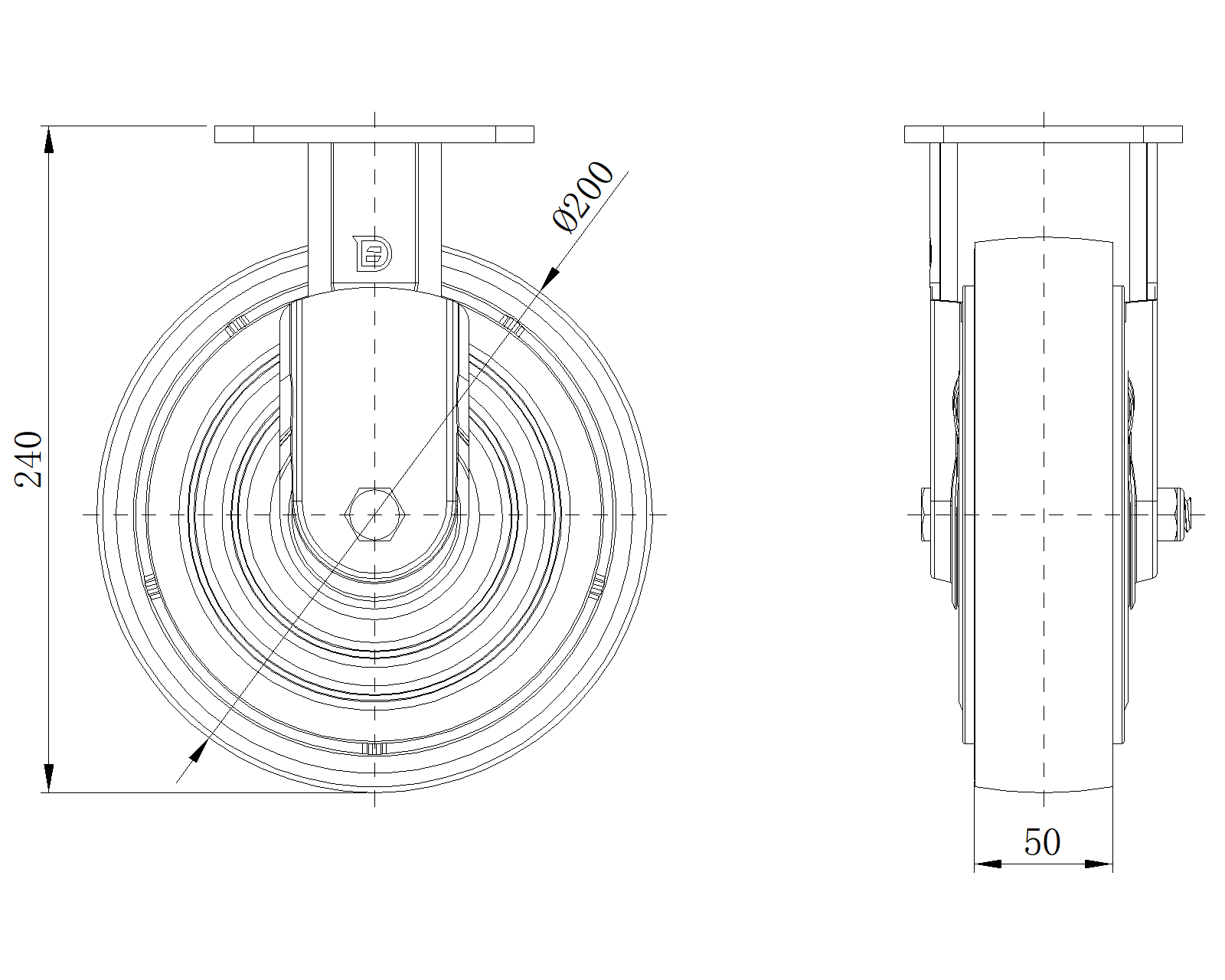

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 200mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings

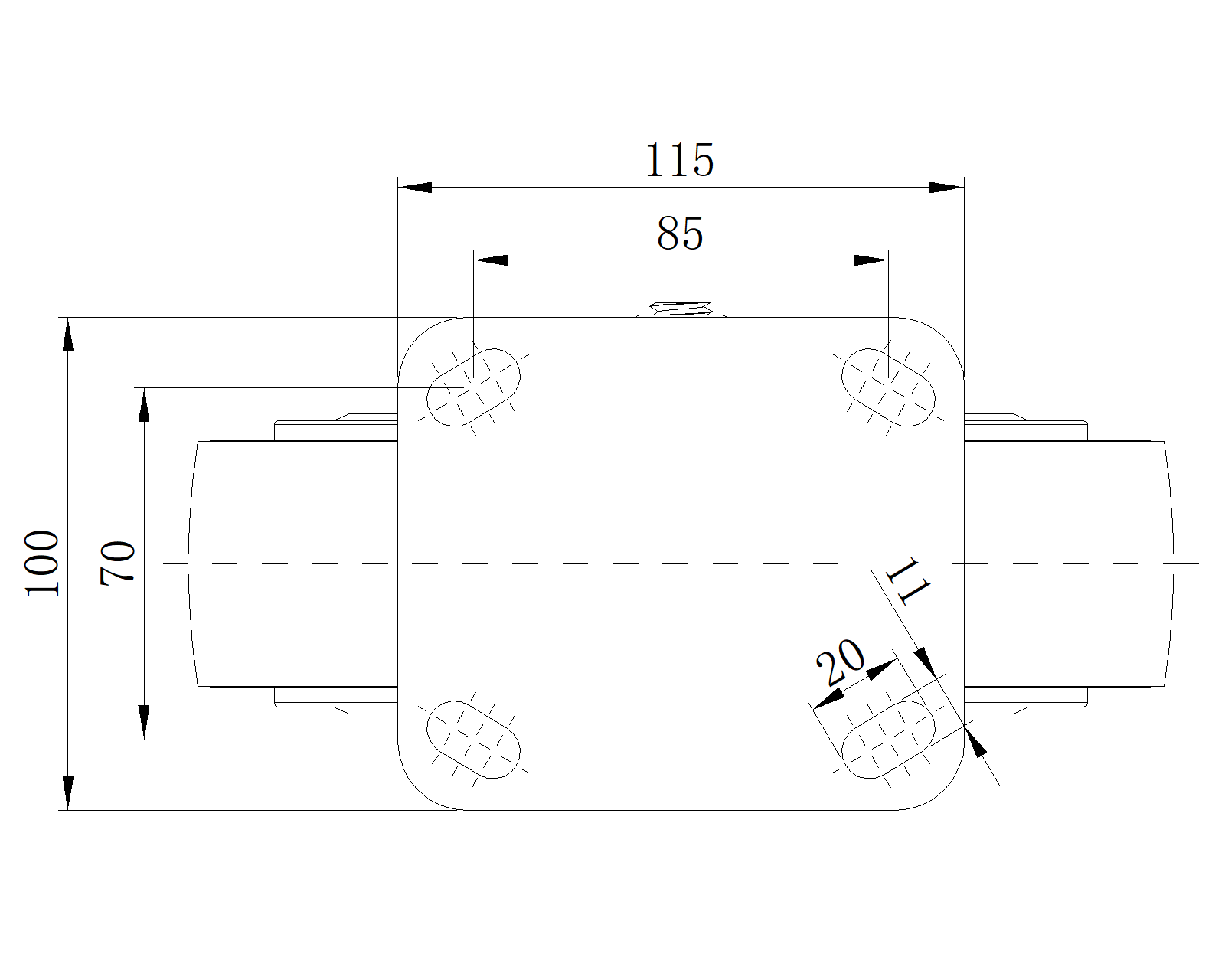

　　Plate Size 100 x 115mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Overall Height 240mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 450kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 675kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 4.59kgs　
　　Standard ISO22883
　　
　　
