    Product Data Sheet
1141 Kingpinless Caster Series
　　CPD Wheel Diameter x Wheel Width 200 x 50mm
　　EAN
　　　　　 KS-11410800294021
　　　　　 　　　
Casters with Side Brakes and Locking system, Welded Caster Fork Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing Polypropylene Wheel Center, natural wheel tread Bearing—Ball Bearing
　　Wheel Tread: PP polypropylene
　　Wheel Center: PP polypropylene

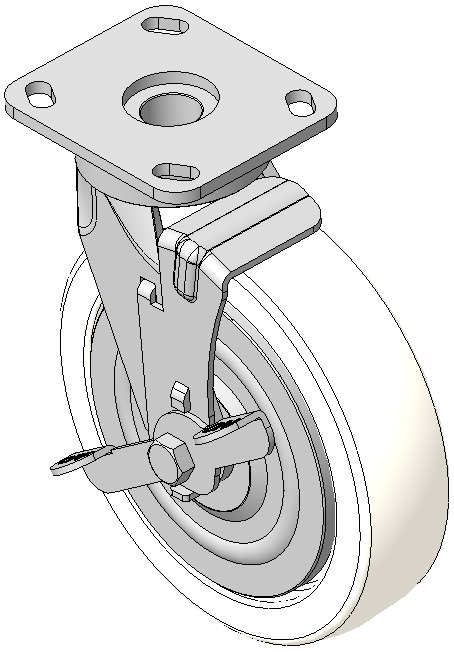

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 200mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 42.8mm　
　　Swivel Interference 290mm　
　　Overall Height 240mm　
　　Swivel Radius 145mm　
　　Hardness Of Tread 72±5° Shore D　
　　Load Capacity (Dynamic) 400kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 600kgs　
　　Temperature -12°C to +60°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 3.69kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

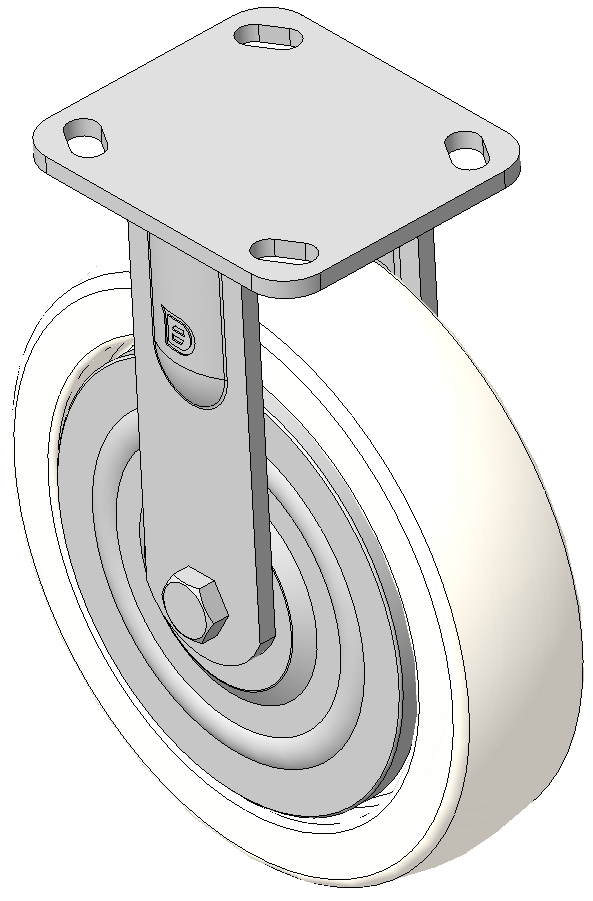

1141 Kingpinless Caster Series
CPD Wheel Diameter x Wheel Width 200 x 50mm
KS-11410800291021
200 mm 400 Kgs 240 mm
Rigid Caster, Welded Caster Fork Extended control lever surface, Top Plate Mounting Type, Hole spacing 85x70 Polypropylene Wheel Center, Wheel Tread Natural Color Bearing - Ball Bearing

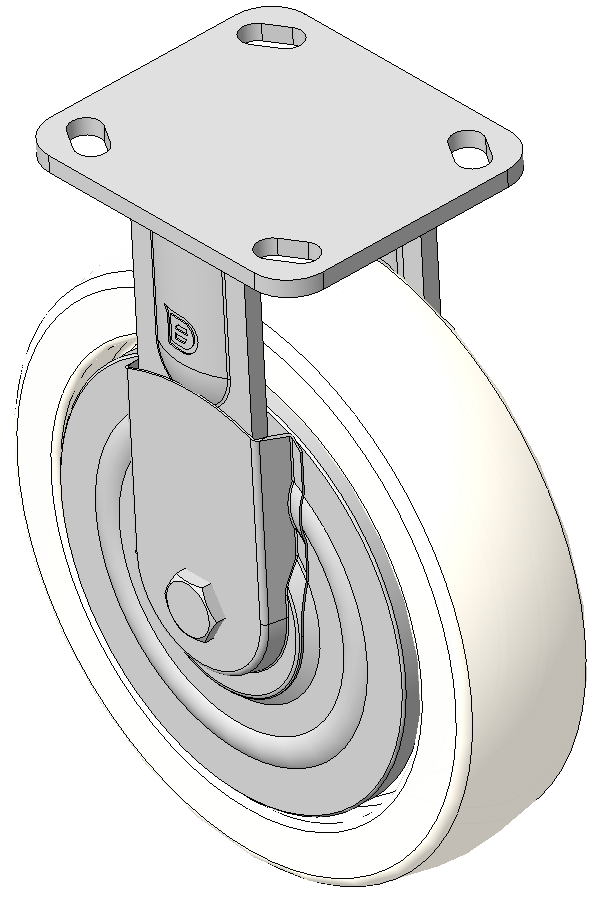

1141 Kingpinless Caster Series
CPD Wheel Diameter x Wheel Width 200 x 50mm
KS-11410800291031
200 mm 400 Kgs 240 mm
Rigid Caster, Welded Caster Fork Extended control lever surface, Top Plate Mounting Type, Hole spacing 85x70 Polypropylene Wheel Center, Wheel Tread Natural Color Bearing - Ball Bearing, with special Anti-thread wheel cover
1141 Kingpinless Caster Series
CPD Wheel Diameter x Wheel Width 200 x 50mm
KS-11410800292021
200 mm 400 Kgs 240 mm
Swivel Caster, Welded Caster Fork Extended control lever surface, Top Plate Mounting Type, Hole spacing 85x70 Polypropylene Wheel Center and Wheel Tread, Natural Color Bearing - Ball Bearing

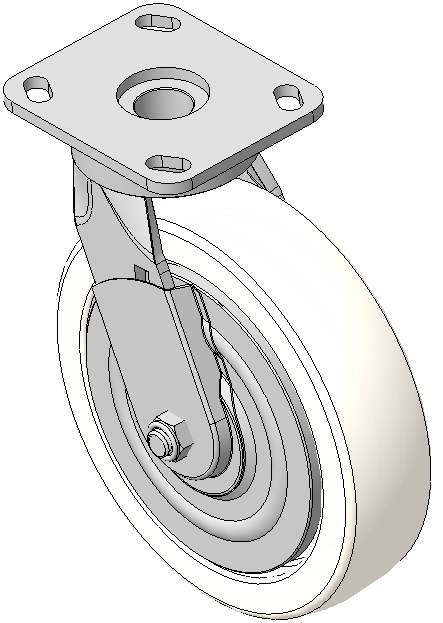

1141 Kingpinless Caster Series
CPD Wheel Diameter x Wheel Width 200 x 50mm
KS-11410800292031
200 mm 400 Kgs 240 mm
Swivel Caster, Welded Caster Fork Extended control lever surface, Top Plate Mounting Type, Hole spacing 85x70 Polypropylene Wheel Center and Wheel Tread, Natural Color Bearing - Ball Bearing, with special Anti-thread wheel cover

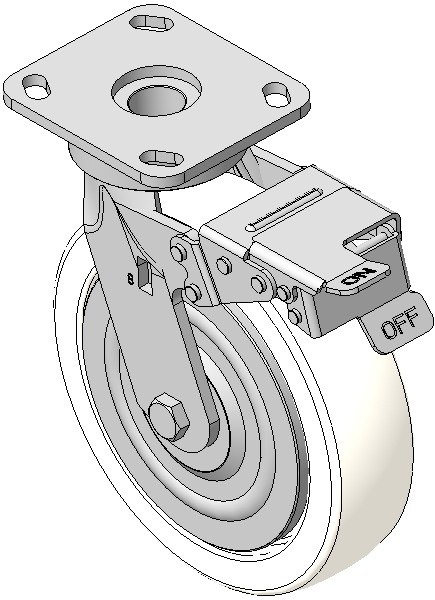

1141 Kingpinless Caster Series
