    Product Data Sheet

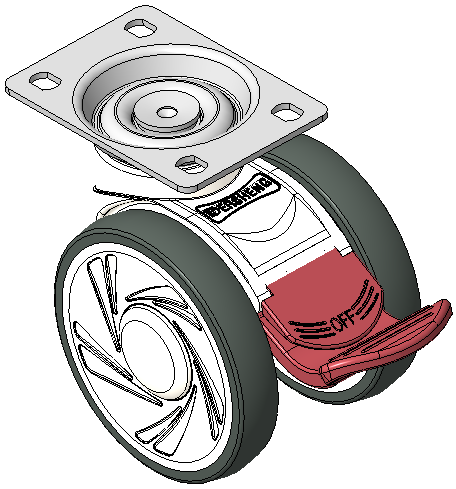

1146 46 Ascendant Series Caster Series(All Plastic)
　　Resolute Rubber wheel (white dark gray) Wheel Diameter x Wheel Width 100 x 18mm
　　EAN
　　　　　 KS-11460400454013
　　　　　 　　　
Long Total Brake Casters, 75x45 angled perforated Top Plate
White legs made of polyamide reinforced material
Rust-proof, Corrosion resistant, Attractive appearance, Economical, and allows for smooth rotation
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing—Ball Bearings
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

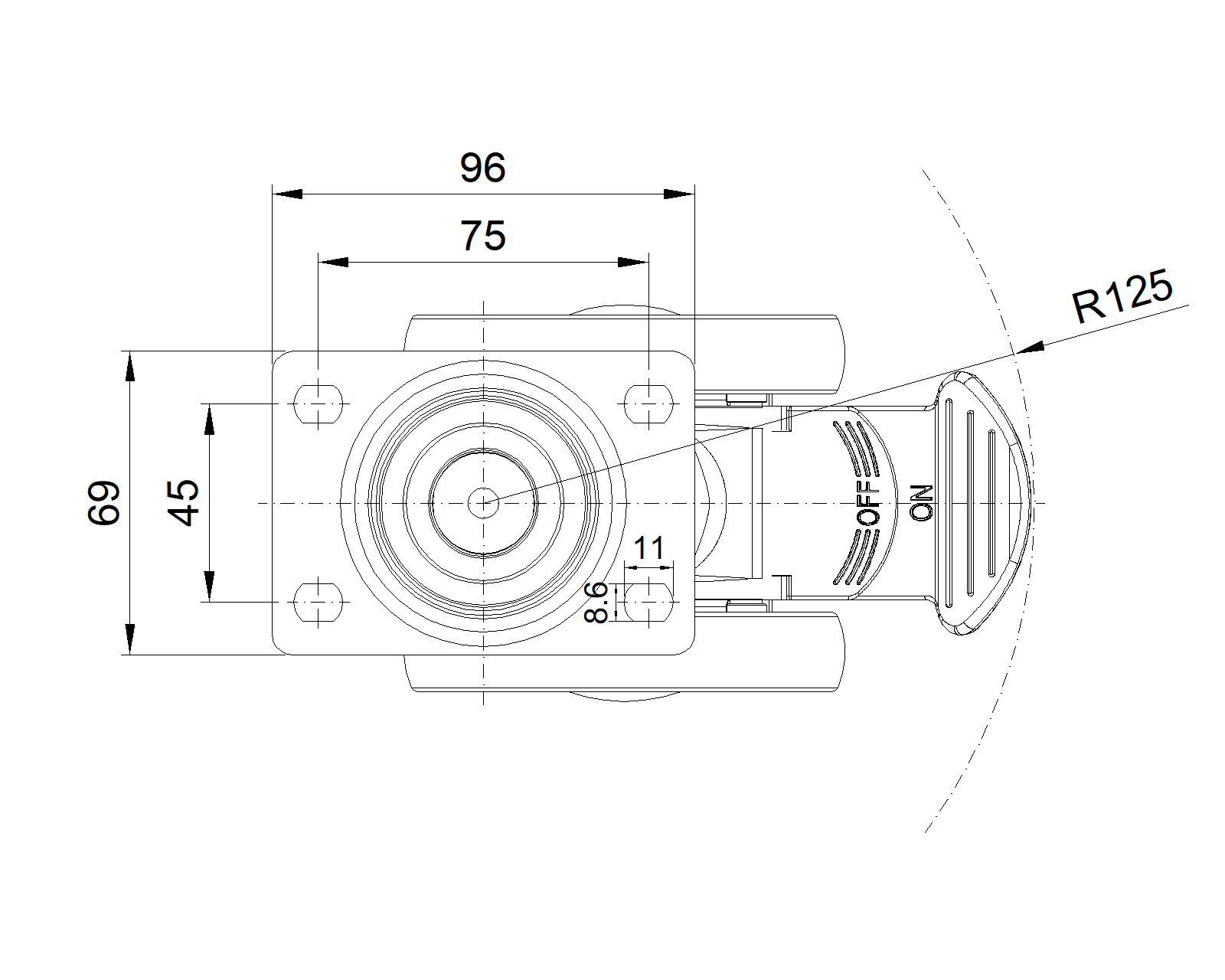

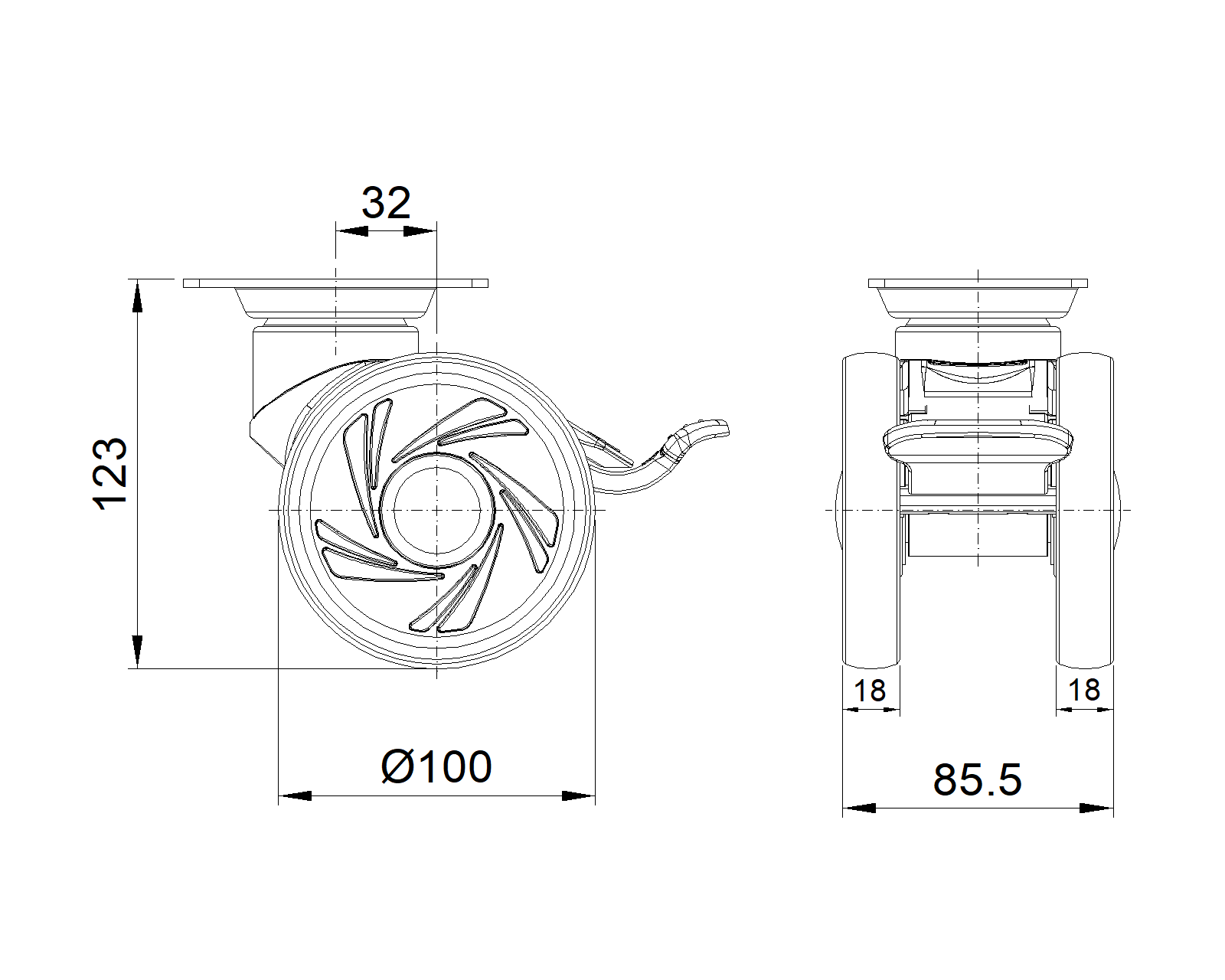

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 85.5mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 69 x 96mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 11 x 8.6mm　
　　Offset 32mm　
　　Swivel Interference 250mm　
　　Overall Height 123mm　
　　Swivel Radius 125mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 100kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 150kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.86kgs　
　　Standard ISO22881
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

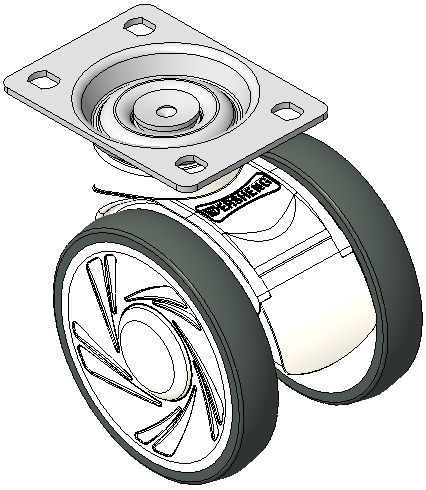

1146 46 Ascendant Series Caster Series(All Plastic)
Double-Ball Full-Effect Wheel (White-Dark Gray) Wheel Diameter × Wheel Width 100 × 18mm
KS-11460400451013
100 mm 100 Kgs 123 mm
Rigid Casters, 75x45 angled perforated Top Plate
White Casters made of polyamide reinforced material
Rust-proof, Corrosion resistant, Attractive appearance, Economical, and allows for smooth rotation
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing—Ball Bearings

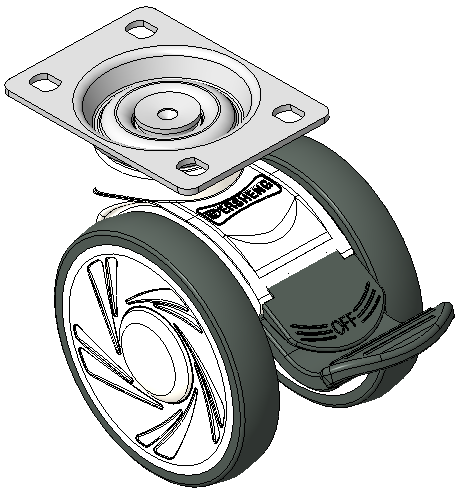

1146 46 Ascendant Series Caster Series(All Plastic)
