Equipped with directional brakes, 75x45mm bolt pattern
White legs made of polyamide reinforced material
Rust-proof, Corrosion resistant, Smooth rotation, suitable for low and medium-sized trolleys
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
White and dark gray, Bearing - Ball Bearings
Wheel Center: Made of high-quality impact-resistant polypropylene

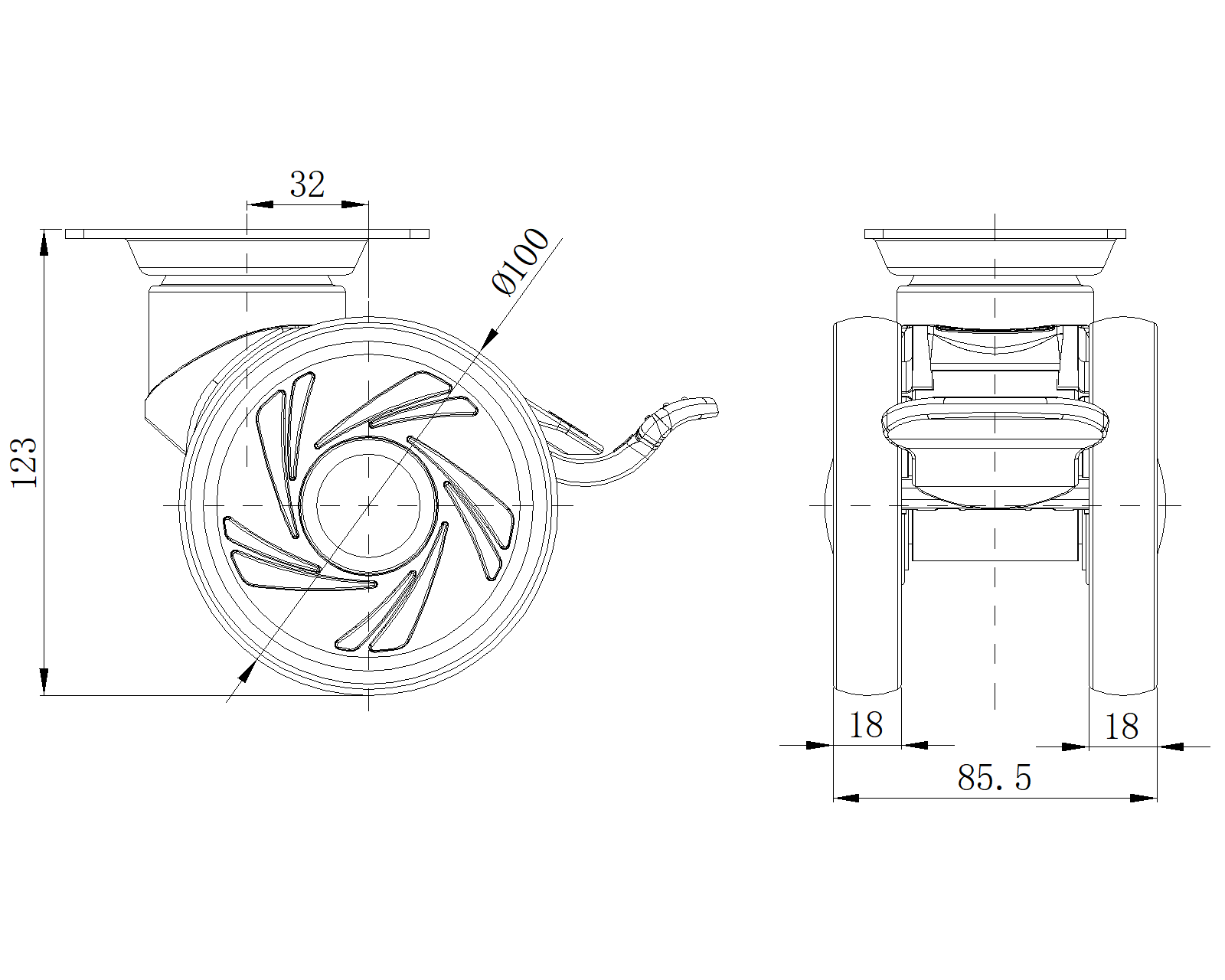

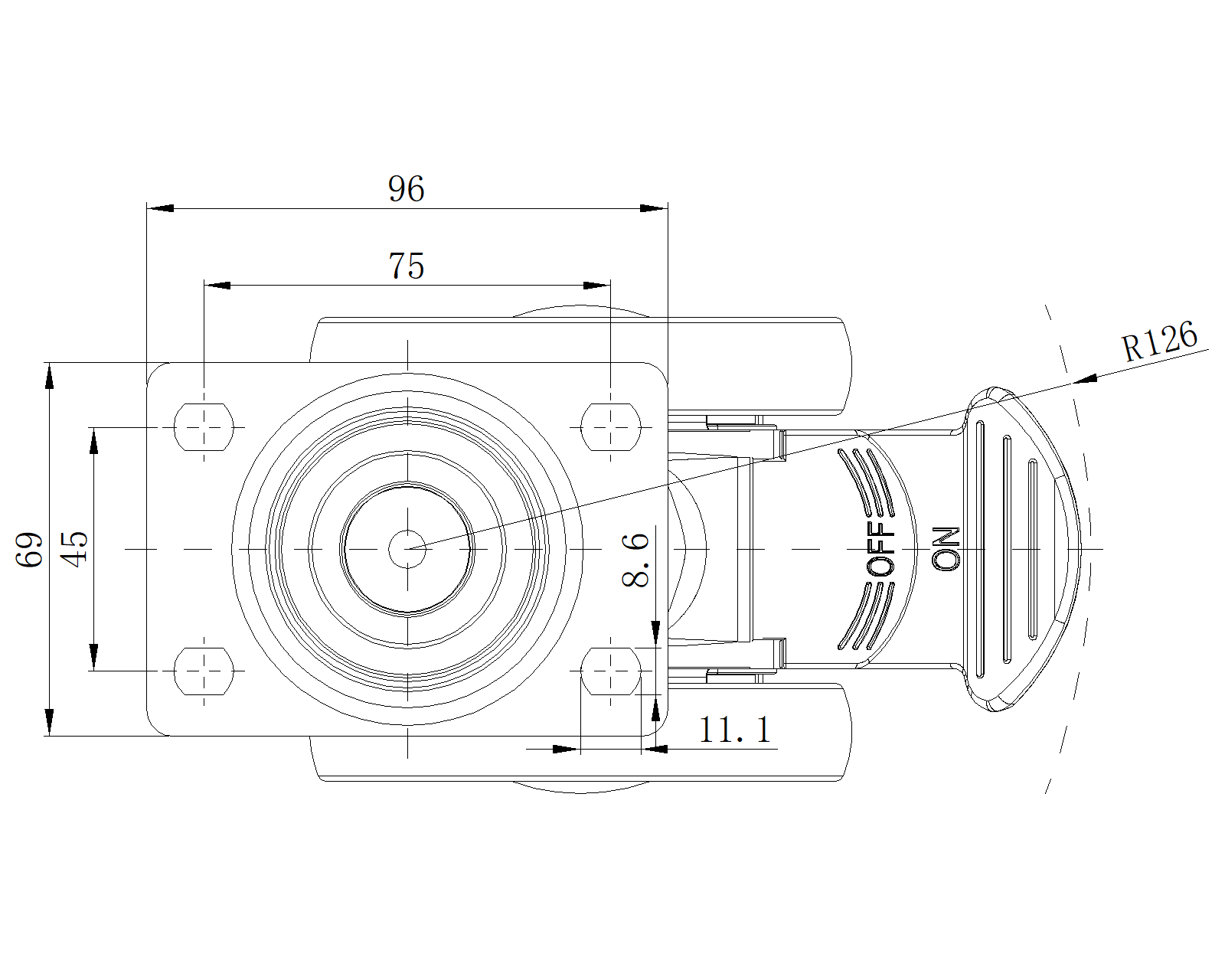

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
100mm
Wheel Width
85mm
Wheel Bearing
Wheels With Ball Bearings
Plate Size
96 x 69mm
Bolt Hole Spacing
75 x 45mm
Plate Hole
11 x 8.6mm
Offset
32mm
Swivel Interference
252mm
Overall Height
123mm
Swivel Radius
126mm
Hardness Of Tread
82±5° Shore A
Load Capacity (Dynamic)
100kgs
Rolling Resistance ● ● ● ● ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
150kgs
Temperature
-20°C to +60°C
Fork Type
Swivel Caster With Directional Lock
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.75kgs
Standard
ISO22881
