    Product Information Sheet

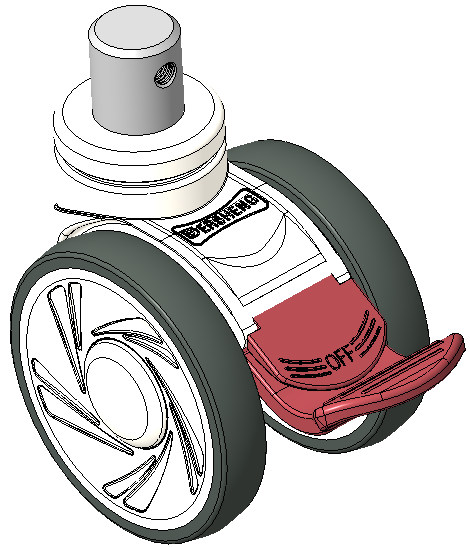

1146 46 Ascendant Series Caster Series(All Plastic)
　　Resolute Rubber wheel (white dark gray) Wheel Diameter x Wheel Width 100 x 18mm
　　EAN
　　　　　 KS-11460400458063
　　　　　 　　　
Long Total Brake Casters, mortise-and-tenon Riveted Stamping Fork — Ø28x30L
White legs made of polyamide reinforced material
Rust-proof, Corrosion resistant, Attractive appearance, Economical, and allows for Smooth rotation
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing — Ball Bearings
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

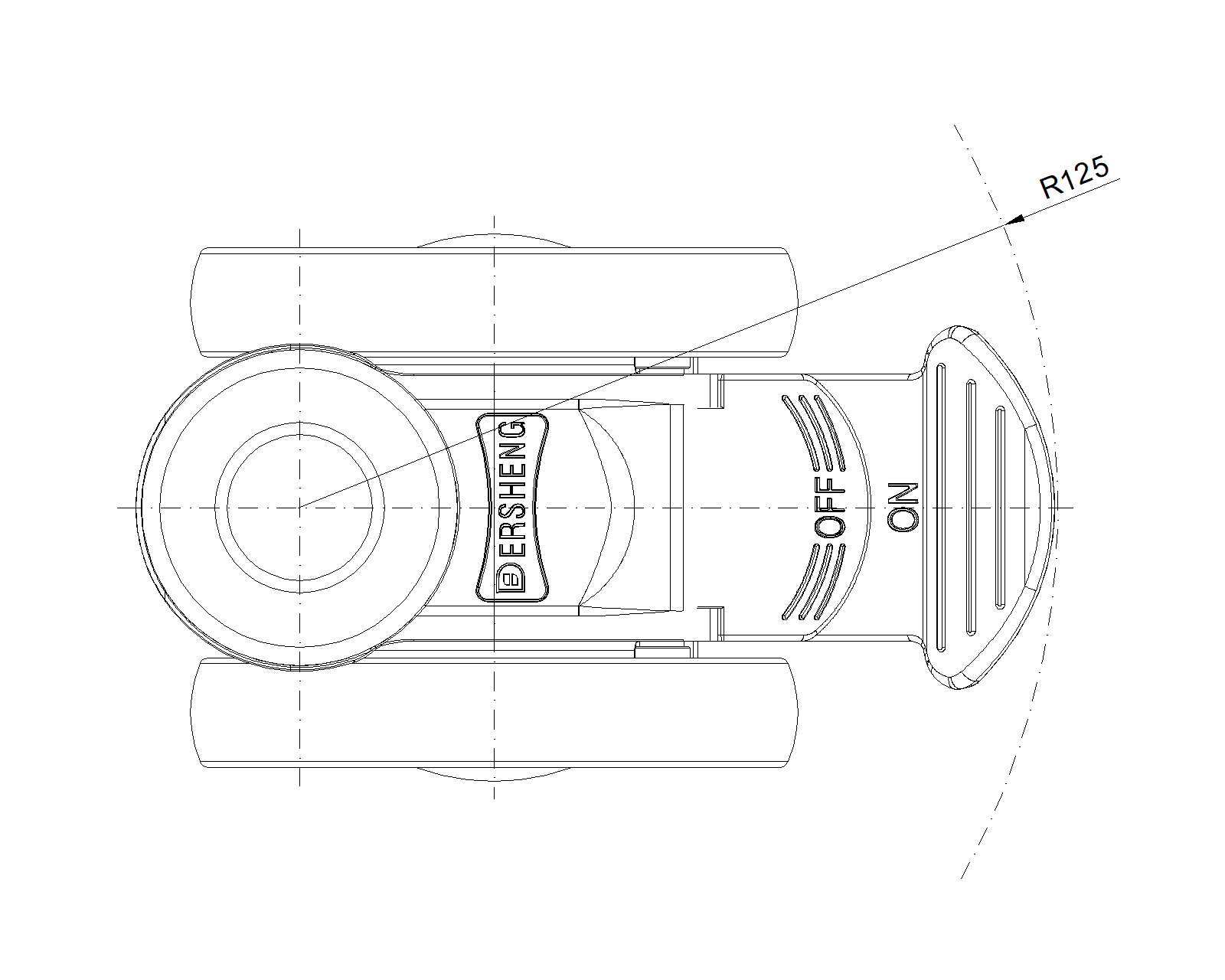

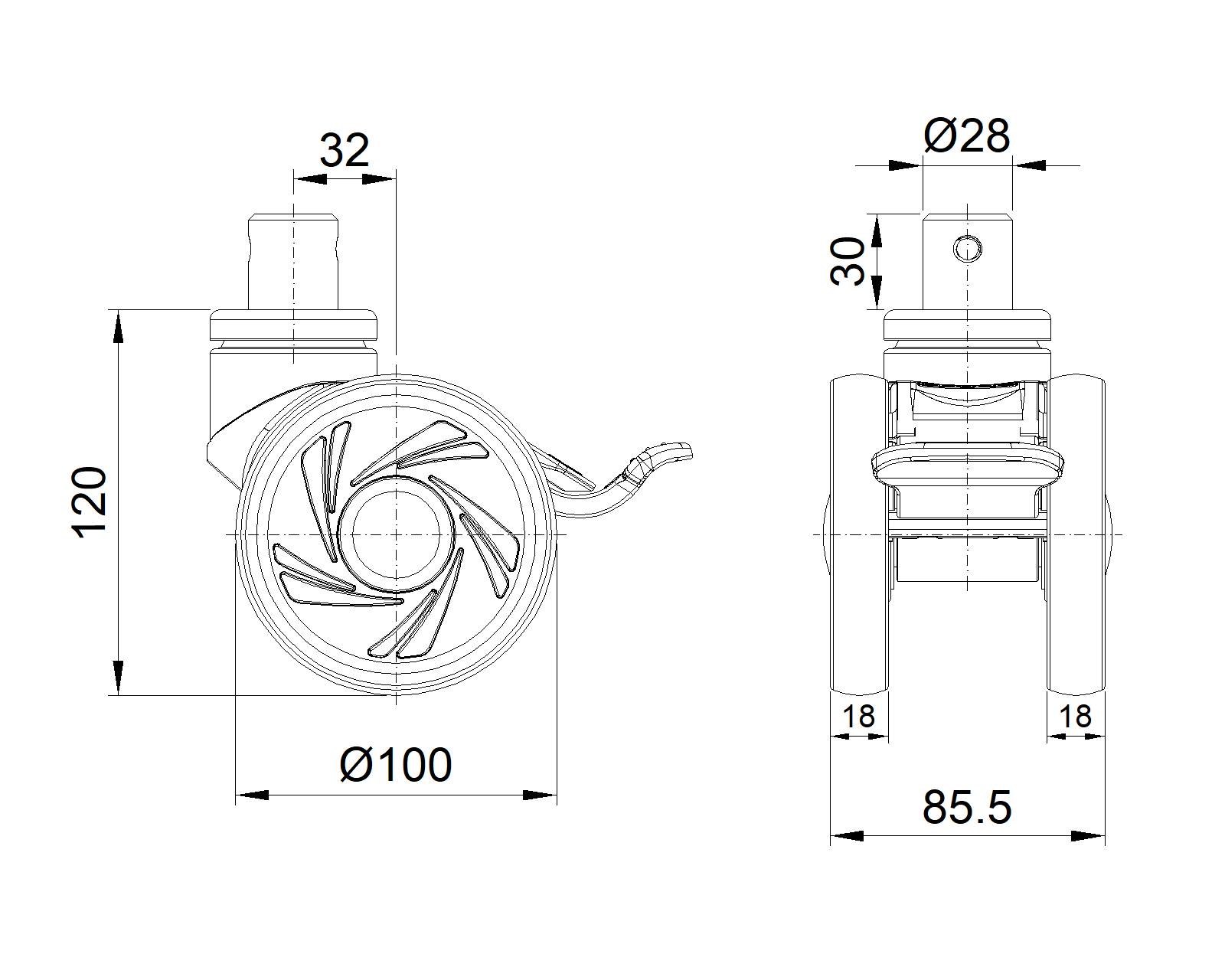

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 85.5mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Stem Diameter 28mm　
　　Stem Length 30mm　
　　Offset 32mm　
　　Swivel Interference 250mm　
　　Overall Height 120mm　
　　Swivel Radius 125mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 100kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 150kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.88kgs　
　　Standard ISO22881
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

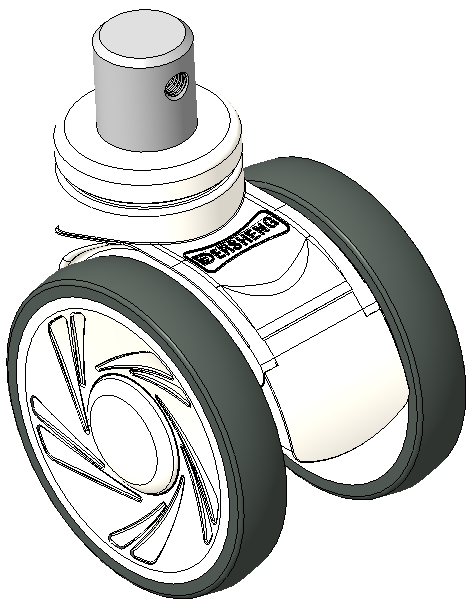

1146 46 Ascendant Series Caster Series(All Plastic)
Double-Ball Full-Effect Wheel (White-Dark Gray) Wheel Diameter × Wheel Width 100 × 18mm
KS-11460400457043
100 mm 100 Kgs 120 mm
Adjustable Casters, mortise-and-tenon Stamping Fork — Ø28x30L
White legs made of polyamide reinforced material
Rust-proof, Corrosion resistant, Attractive appearance, Economical, and allows for Smooth rotation
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing — Ball Bearings

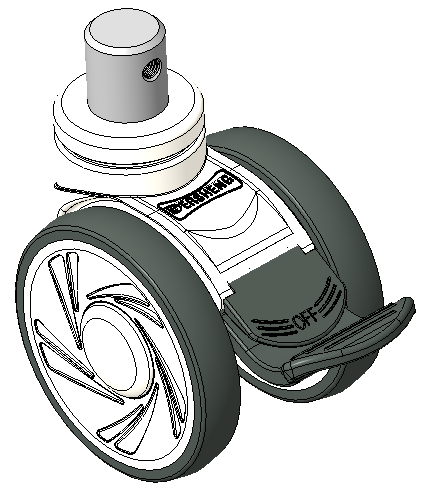

1146 46 Ascendant Series Caster Series(All Plastic)
Double-Ball Full-Effect Wheel (White-Dark Gray) Wheel Diameter × Wheel Width 100 × 18mm
KS-11460400458043
100 mm 100 Kgs 120 mm
Long Total Brake Casters, ferrule-Riveted Stamping Fork—Ø28x30L
White legs made of polyamide reinforced material
Rust-proof, Corrosion resistant, Attractive appearance, Economical, and allows for Smooth rotation
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing—Ball Bearings

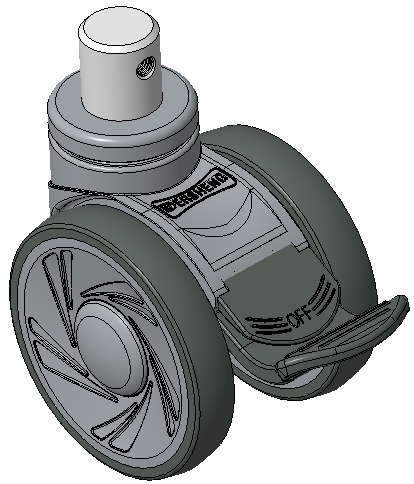

1146 46 Ascendant Series Caster Series(All Plastic)
