Equipped with directional brakes, pin-fitted Stamping Fork—Ø28x30L
Electroplated surface, pin-fit Mounting Type device
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) wheel rim
White/dark gray, Bearing—Ball Bearings
Wheel Center: Made of high-quality impact-resistant polypropylene

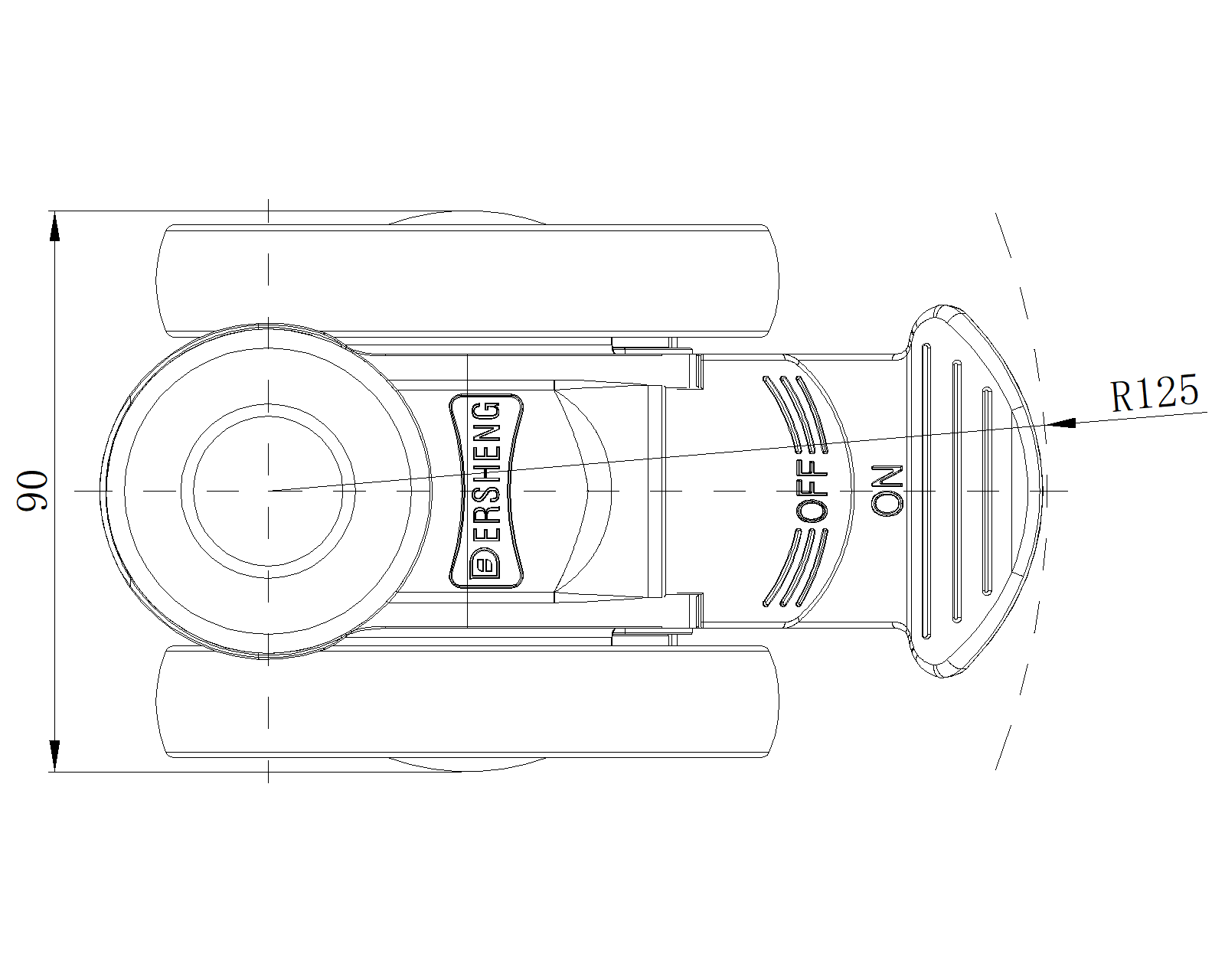

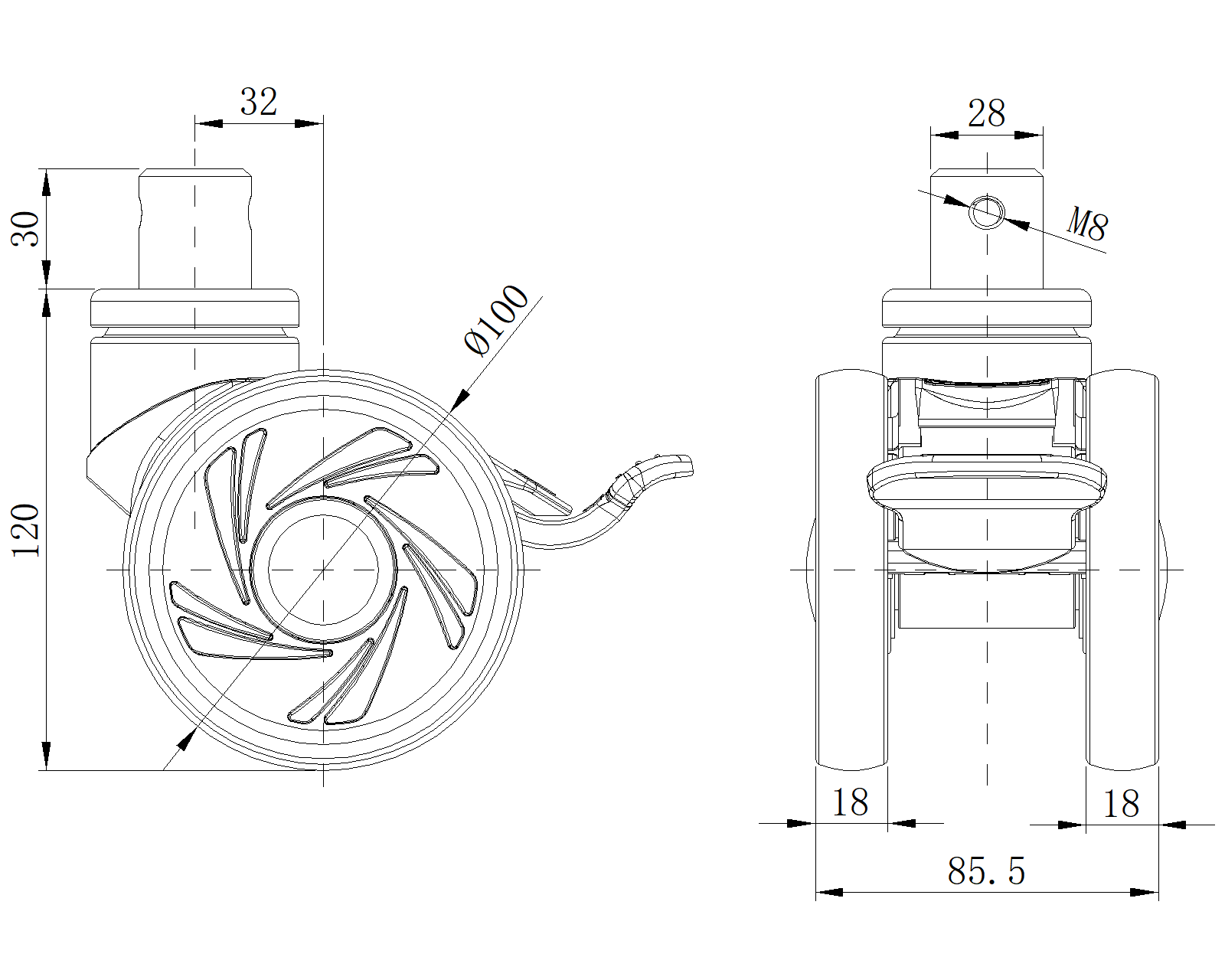

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
100mm
Wheel Width
85mm
Wheel Bearing
Wheels With Ball Bearings
Stem Diameter
28mm
Stem Length
30mm
Offset
32mm
Swivel Interference
250mm
Overall Height
120mm
Swivel Radius
125mm
Hardness Of Tread
72±5° Shore A
Load Capacity (Dynamic)
100kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
150kgs
Temperature
-20°C to +60°C
Fork Type
Swivel Caster With Directional Lock
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.79kgs
Standard
ISO22881
