    Product Data Sheet
1151D Heavy Duty 1.5" Wide General Purposes Caster Series
　　Firecat (milling red) Wheel Diameter x Wheel Width 150 x 40mm
　　EAN
　　　　　 　　　
　　YJ-11510600811013 　　　
Rigid Caster with integral Stamping Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing Mounting Type. Zine-Plated, Top Plate (3.5T) Mounting Type system. Cast Iron Wheel Center with High-Quality Resilient Rubber tread. Red Cast Iron finish, Ball Bearing.
　　Wheel Tread: high-quality elastic rubber
　　Wheel Center: cast iron core

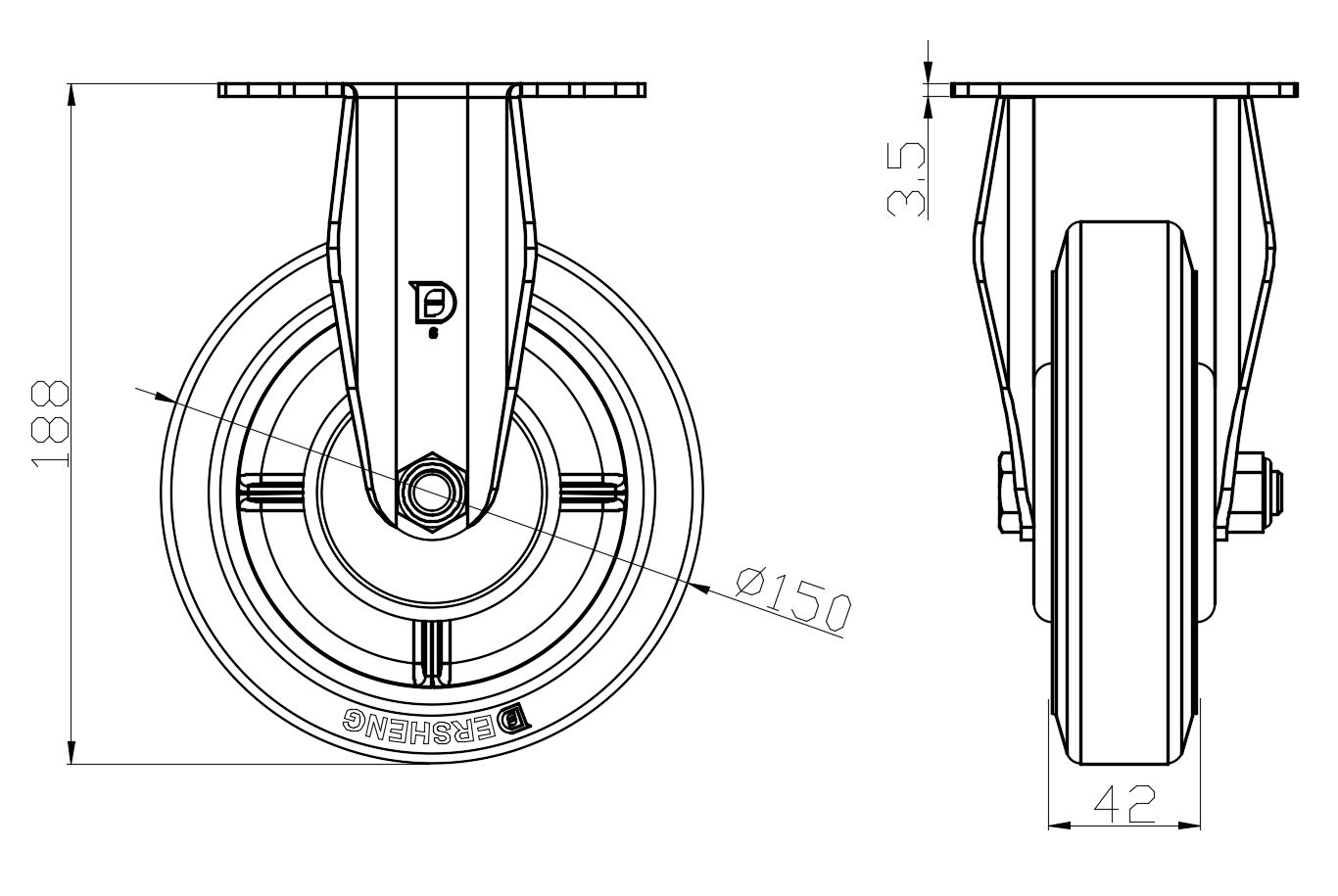

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings

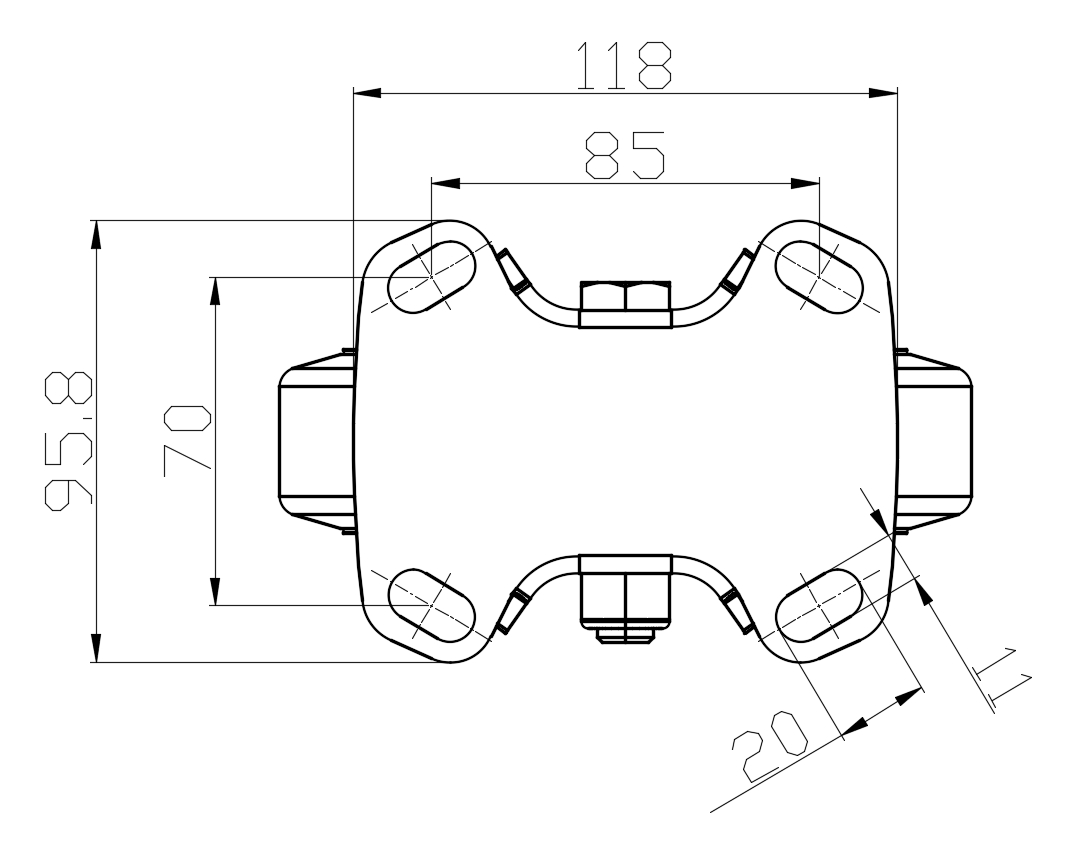

　　Plate Size 118 x 95.8mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Overall Height 188mm　
　　Hardness Of Tread 85±5° Shore A　
　　Load Capacity (Dynamic) 150kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 225kgs　
　　Temperature -25°C to +150°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.19kgs　
　　Standard ISO22883
　　
　　
