    Product Data Sheet

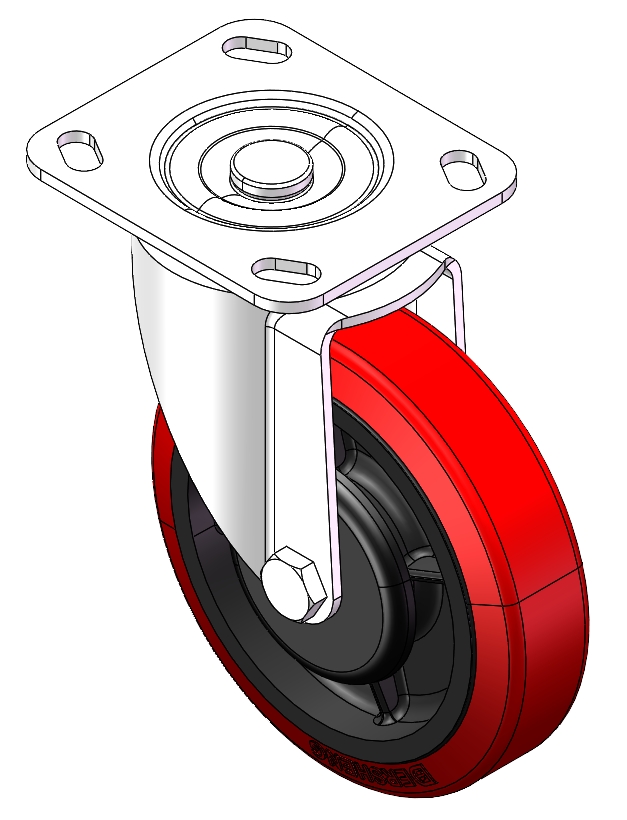

1151D Heavy Duty 1.5" Wide General Purposes Caster Series
　　Firecat (milling red) Wheel Diameter x Wheel Width 150 x 40mm
　　EAN
　　　　　 　　　
　　YJ-11510600812013 　　　
Swivel Caster, Top Plate with Riveted Stamping bracket and D-shaped hole. Zine-Plated, Top Plate (4T) Mounting Type mechanism. Cast Iron Wheel Center with High-Quality Resilient Rubber tread. Red Cast Iron finish, Bearing with Ball Bearing.
　　Wheel Tread: high-quality elastic rubber
　　Wheel Center: cast iron core

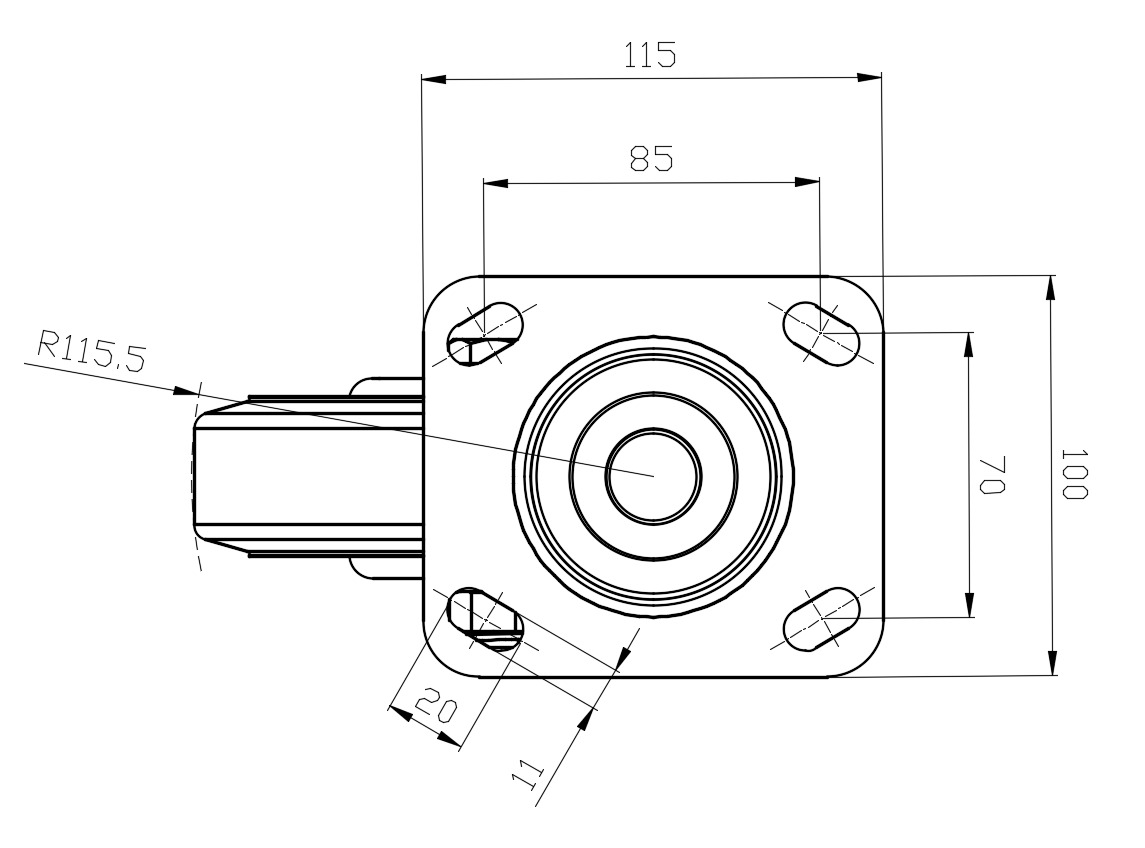

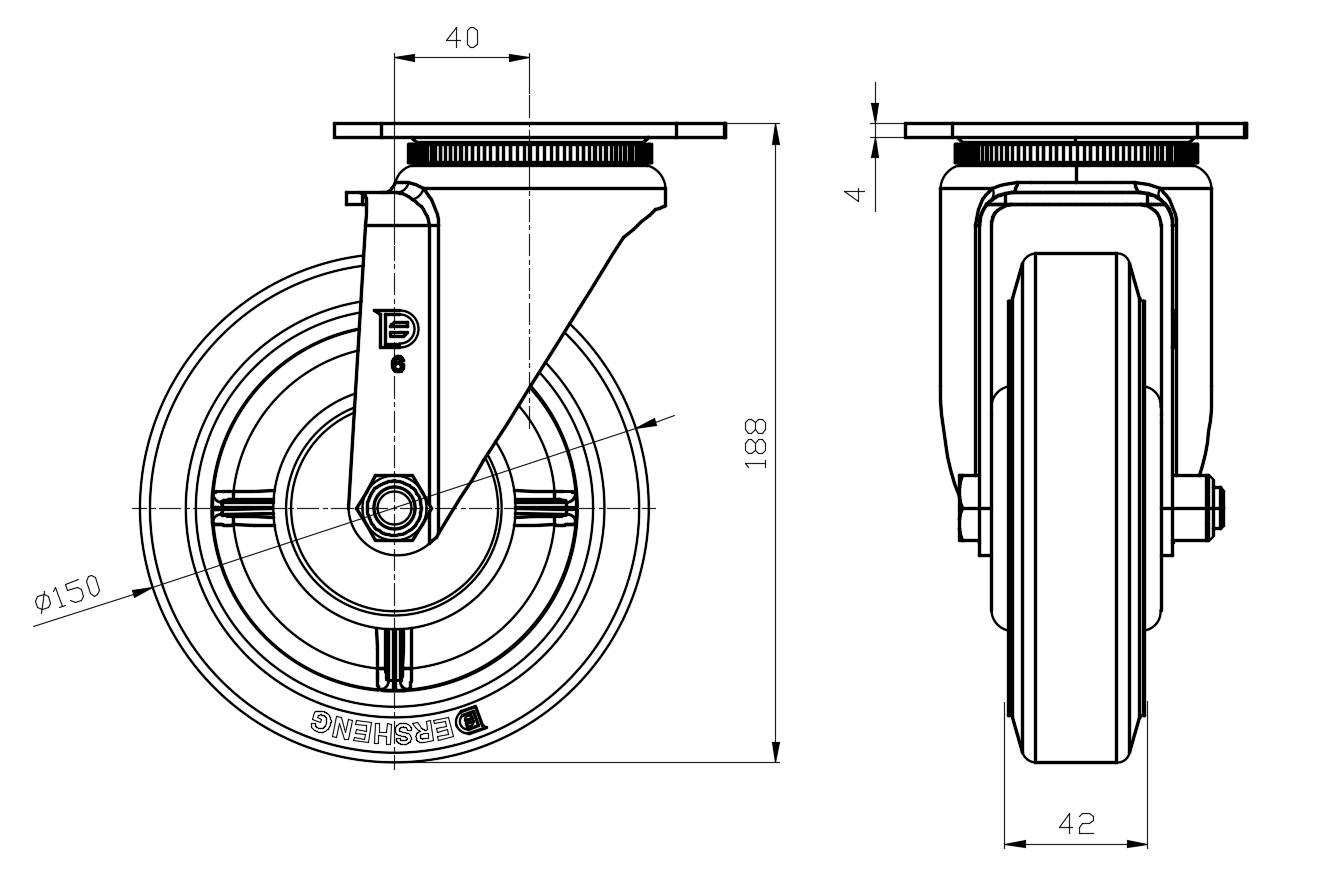

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 40mm　
　　Swivel Interference 231mm　
　　Overall Height 188mm　
　　Swivel Radius 115.5mm　
　　Hardness Of Tread 85±5° Shore A　
　　Load Capacity (Dynamic) 150kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 225kgs　
　　Temperature -25°C to +150°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.60kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
Related　　Products　　

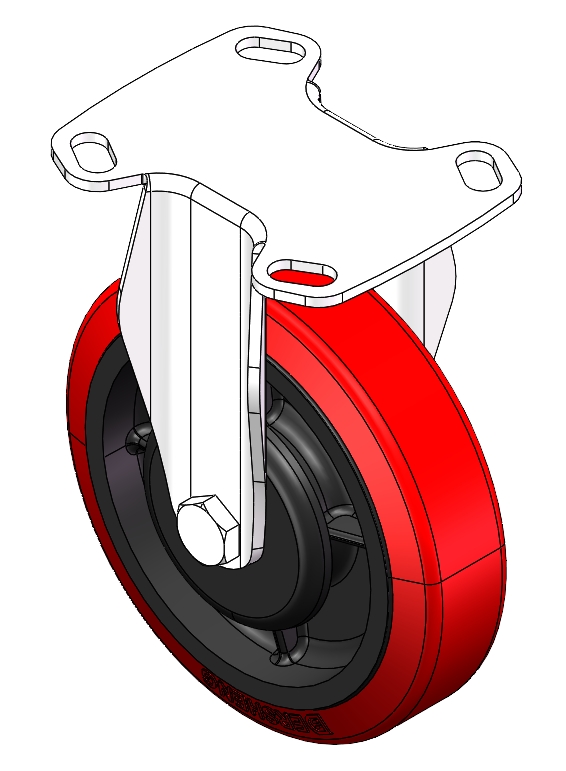

1151D Heavy Duty 1.5" Wide General Purposes Caster Series
