    Product Data Sheet
1102 B Type Caster Series
　　CPD Wheel Diameter × Wheel Width 100 x 32mm
　　D
　　　　　 KS-11020400291021
　　　　　 　　　

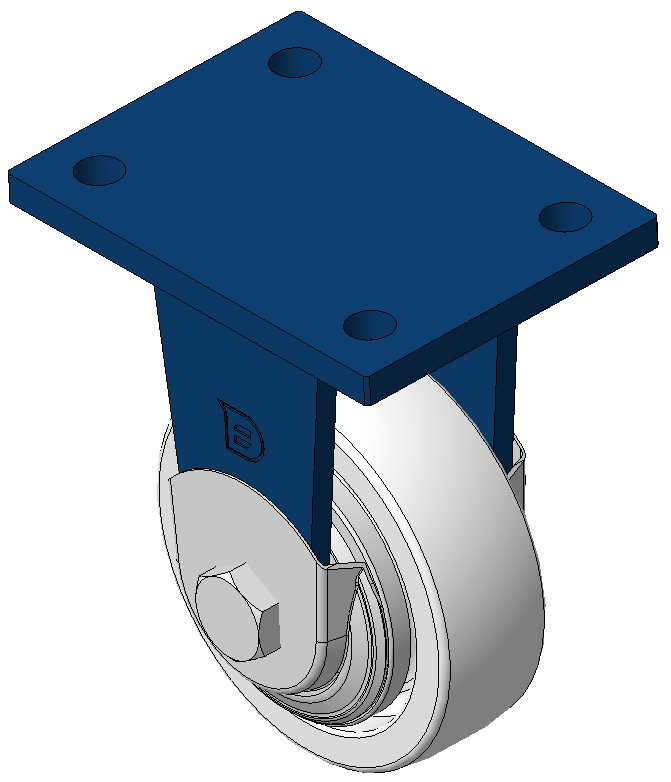

Rigid Caster, Welded Caster Fork - 90x60 Bolt Hole Spacing
Blue-painted finish, Mounting Type - Top Plate
Natural polypropylene Wheel Center and Wheel Tread
Ball Bearing bearings with special anti-tangle wheel covers
　　Wheel tread: Thermoplastic (PA6)
　　Wheel Center: Thermoplastic (PA6)

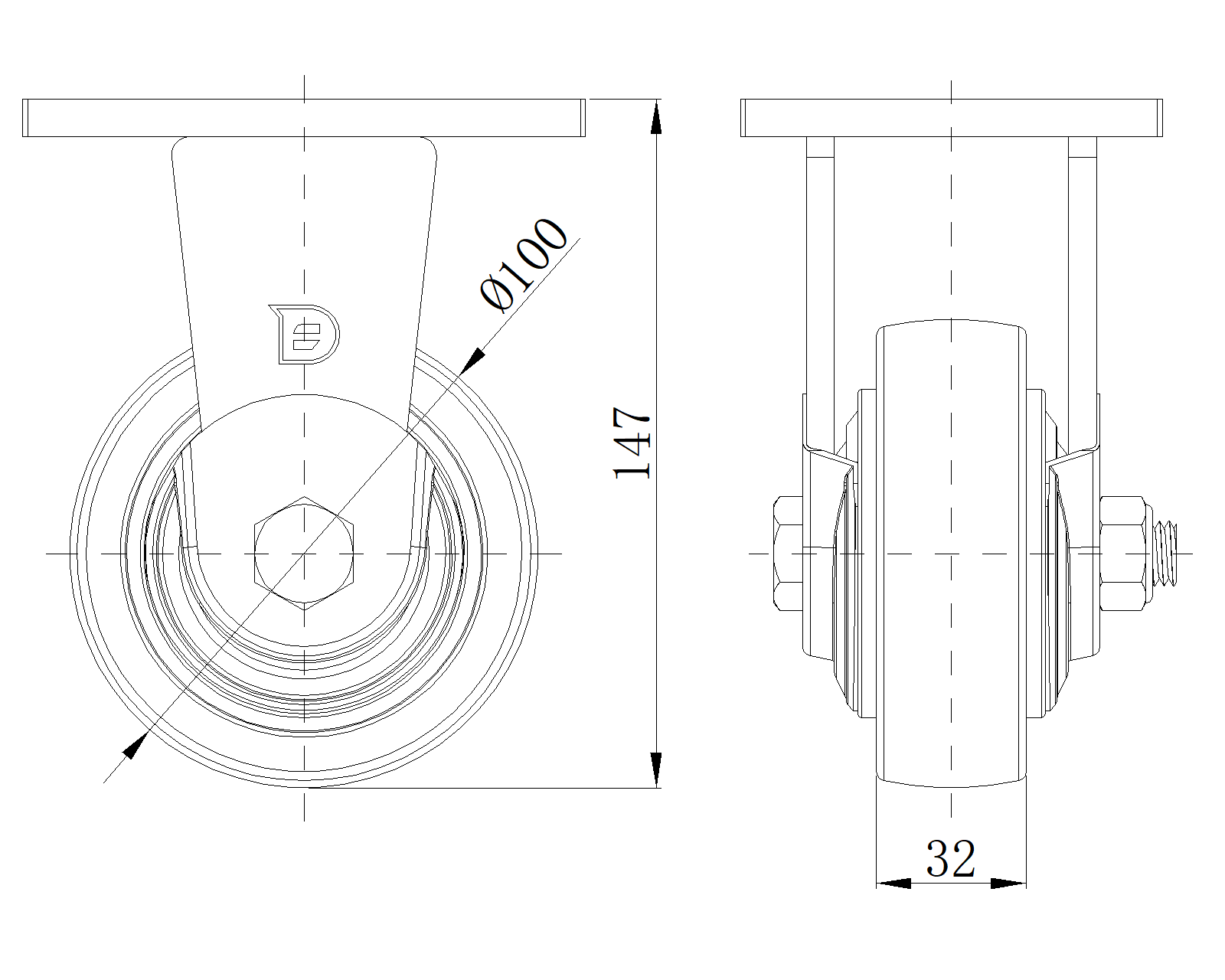

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheels With Ball Bearings

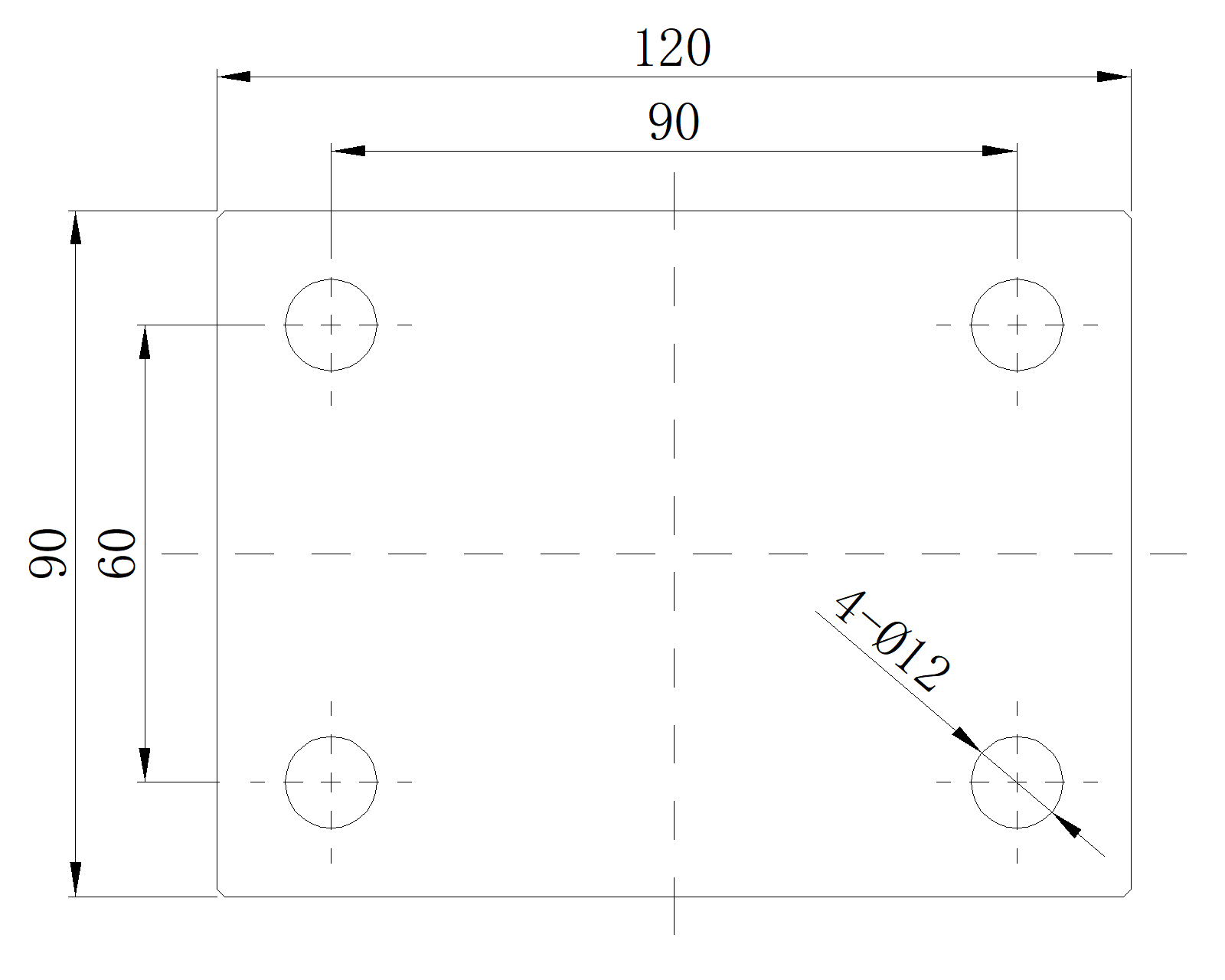

　　Plate Size 120 x 90mm　
　　Bolt Hole Spacing 90 x 60mm　
　　Plate Hole 12mm　
　　Overall Height 147mm　
　　Hardness Of Tread 72±5° Shore D　
　　Load Capacity (Dynamic) 200kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 300kgs　
　　Temperature -12°C to +60°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.66kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1102 B Type Caster Series
CPD Wheel Diameter × Wheel Width 100 x 32mm
KS-11020400294021
100 mm 200 Kgs 147 mm

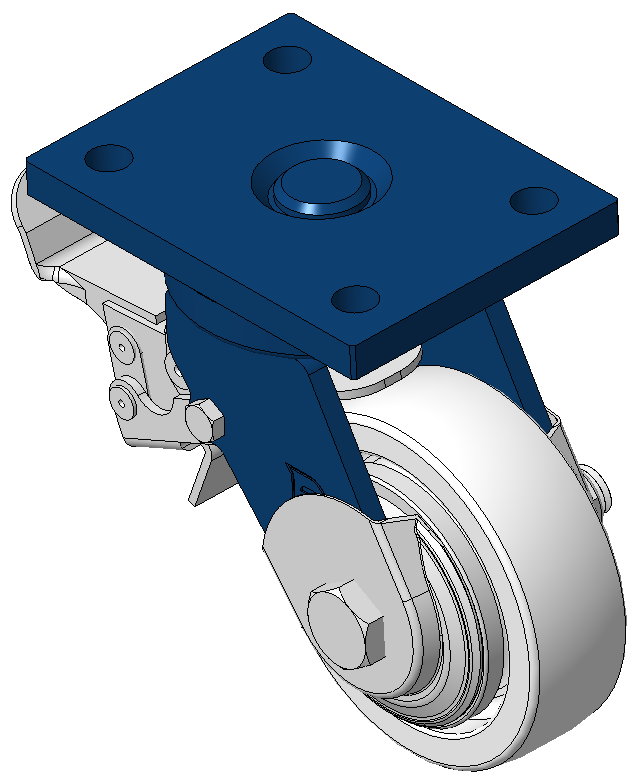

Casters with rear brake and With locking system, Welded Caster Fork
