    Product Data Sheet

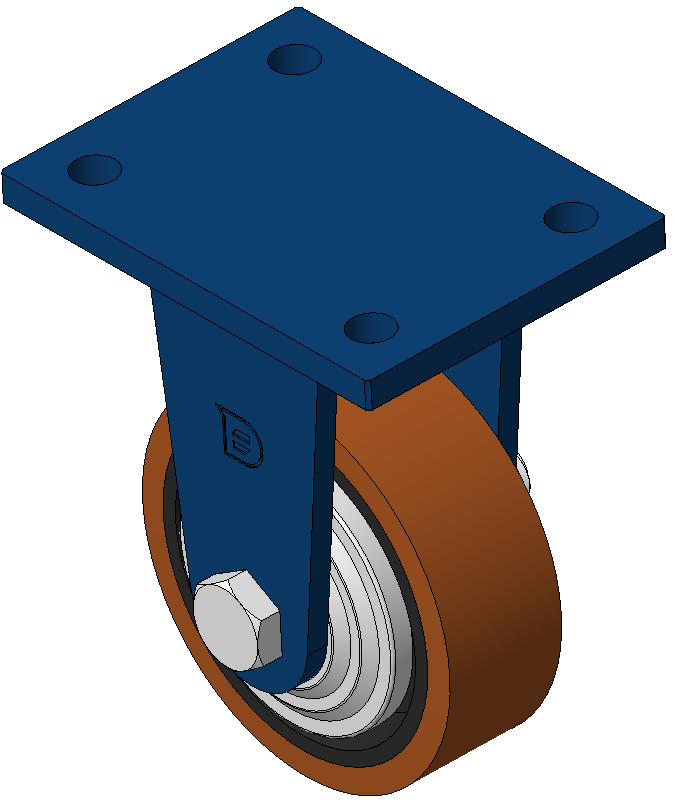

1102 B Type Caster Series
　　QPU (brown flat) Wheel Diameter × Wheel Width 100 x 34mm
　　EAN
　　　　　 KS-11020400531011
　　　　　 　　　
Rigid Caster, Welded Caster Fork
Blue painted finish, Mounting Type - Top Plate, 90x60 Bolt Hole Spacing
Cast Iron core, High Quality Polyurethane Wheel Tread, Cast Iron brown
Bearings—Ball Bearings
　　Wheel Tread: Hhigh-Quality Polyurethane
　　Wheel Center: iron core/cast iron core

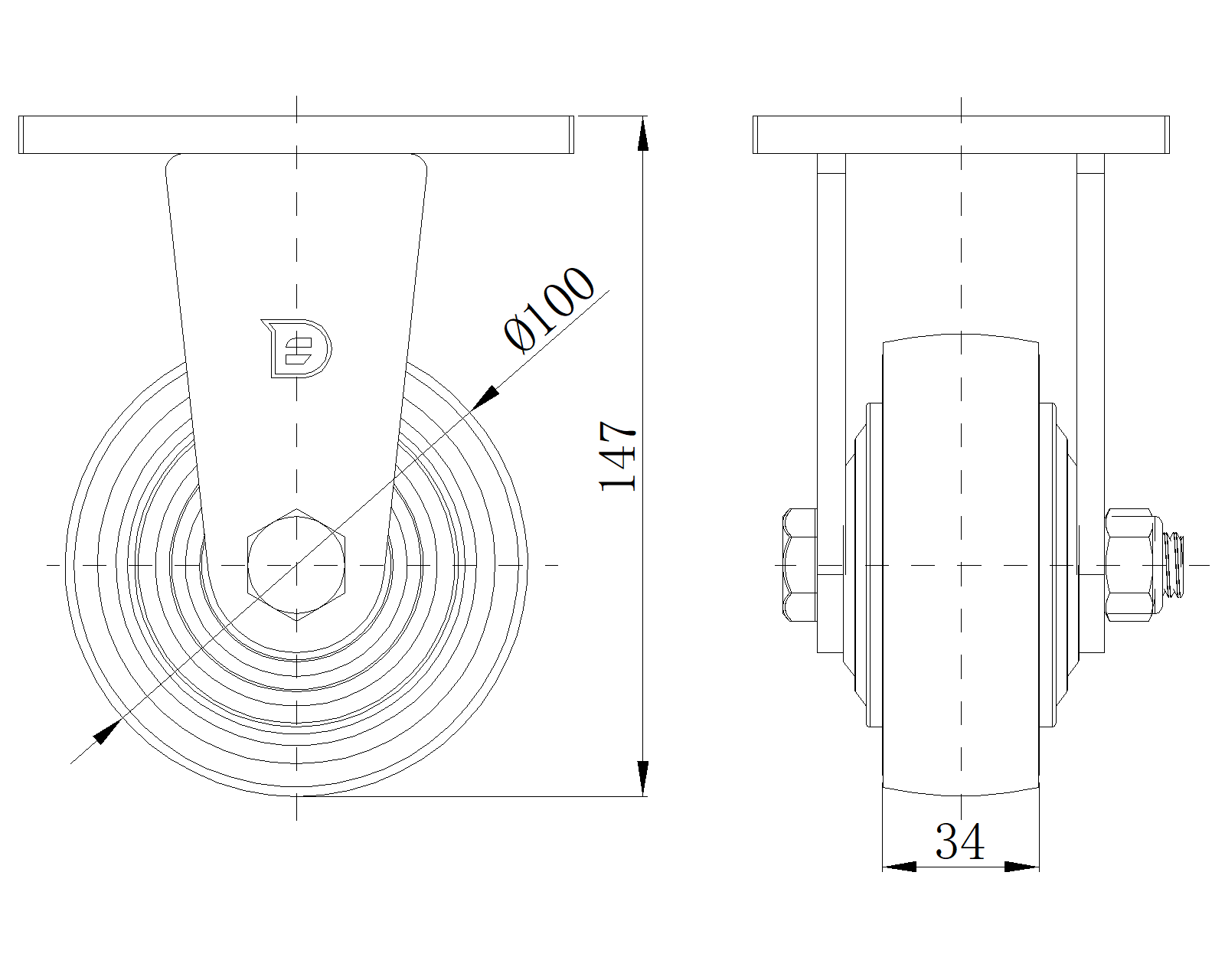

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 34mm　
　　Wheel Bearing Wheels With Ball Bearings

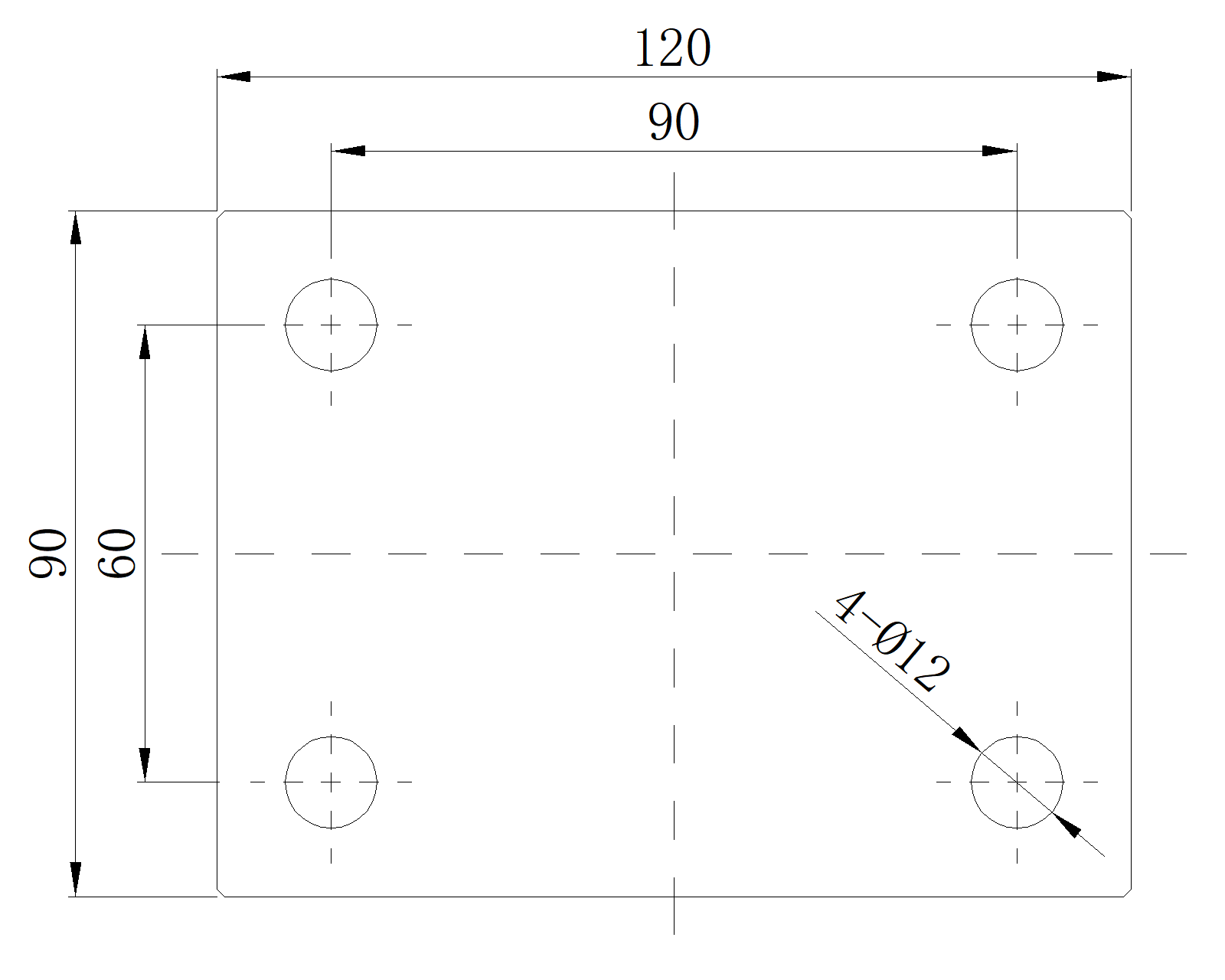

　　Plate Size 120 x 90mm　
　　Bolt Hole Spacing 90 x 60mm　
　　Plate Hole 12mm　
　　Overall Height 147mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 385kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 577.5kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.03kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

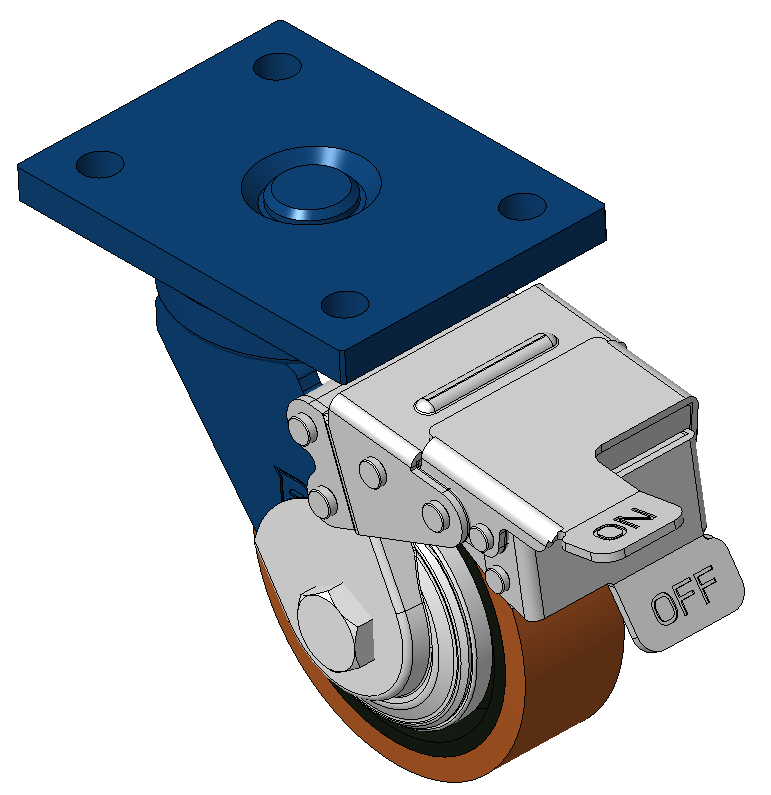

1102 B Type Caster Series
