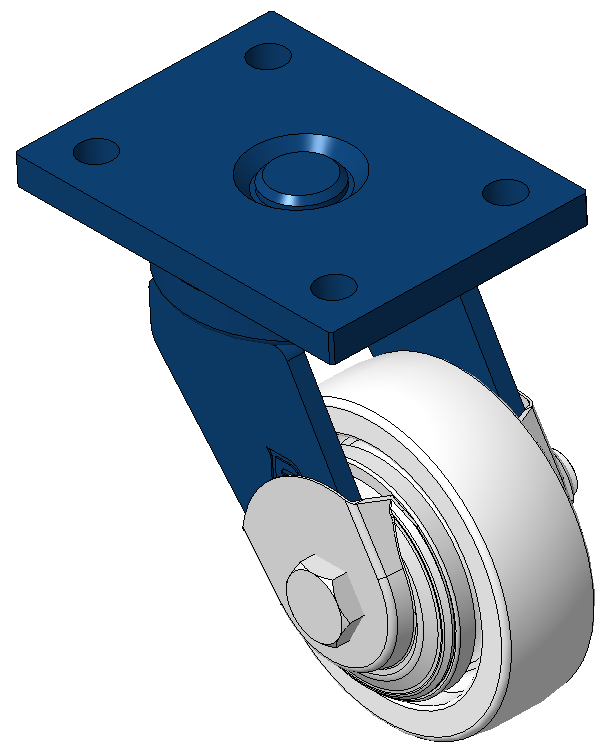

Picture may differ from original product
1102 B Type Caster Series
CPD Wheel Diameter × Wheel Width 100 x 32mm
KS-11020400292021
Wheel Diameter100mm 4＂
Load Capacity (Dynamic)200kgs 441lbs
Overall Height147mm 5-7/8＂
Wheel BearingWheels With Ball Bearings
- Swivel Caster with Welded Caster Fork
- Blue-painted finish, Mounting Type - Top Plate, 90x60 Bolt Hole Spacing
- Natural polypropylene Wheel Center and Wheel Tread
- Ball Bearing bearings with special Anti-thread wheel cover
- Wheel surface: PP polypropylene
- Wheel Center: PP polypropylene
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

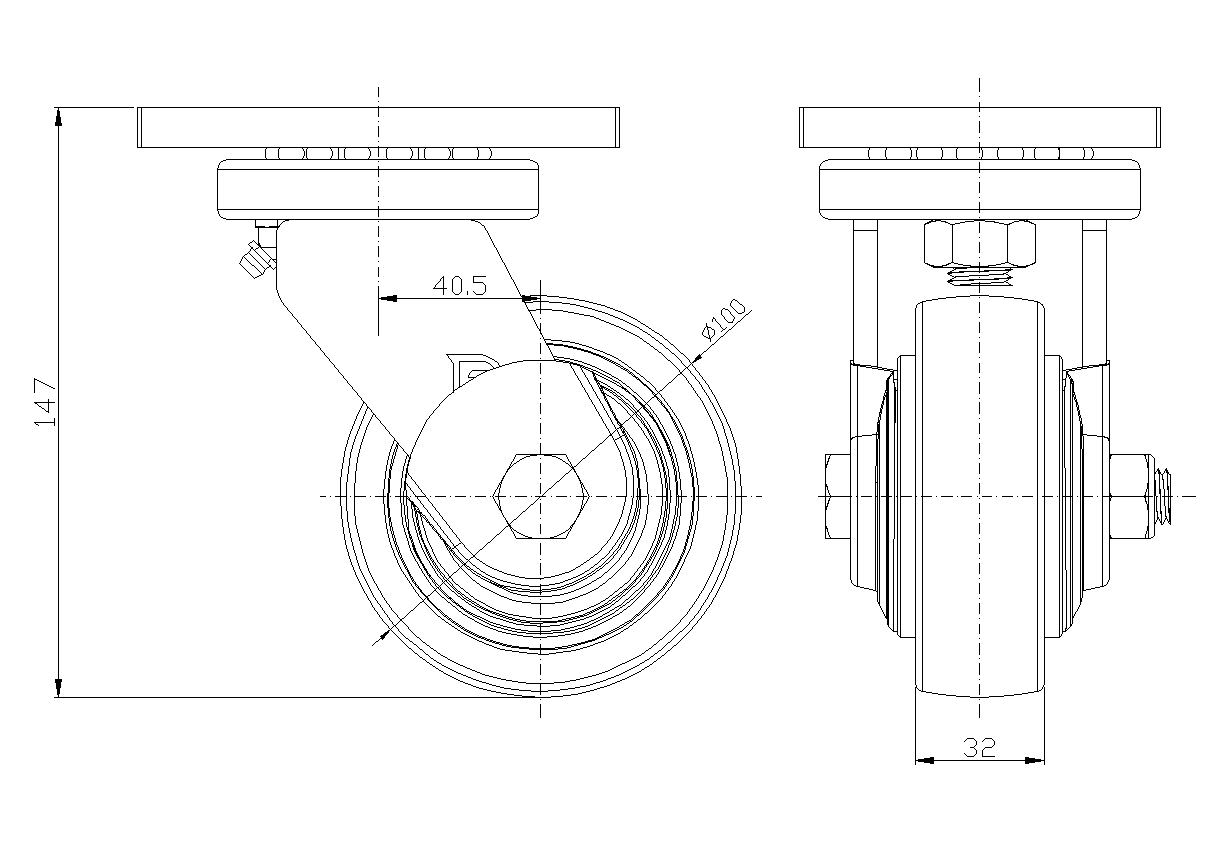

Product Data Sheet
- Wheel Diameter
- 100mm4＂
- Wheel Width
- 32mm1-5/16＂
- Wheel Bearing
- Wheels With Ball Bearings

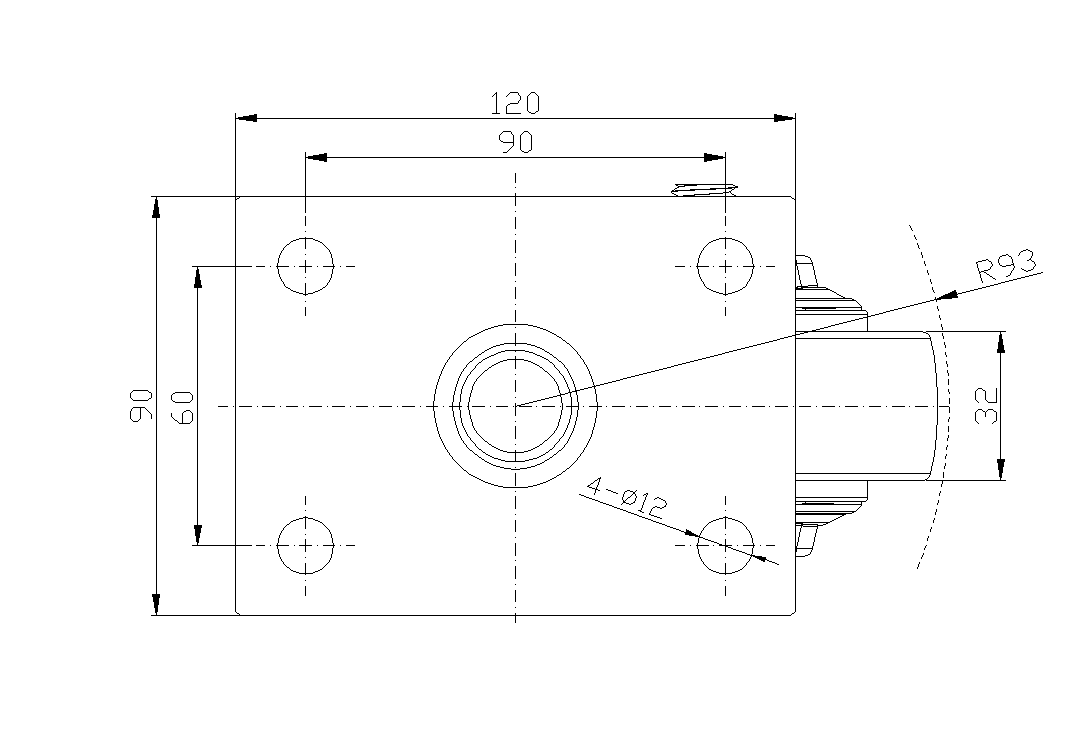

- Plate Size
- 120 x 90mm4-13/16＂ x 3-9/16＂
- Bolt Hole Spacing
- 90X60mm3-9/16＂x2-7/16＂
- Plate Hole
- 12mm1/2＂
- Offset
- 40.5mm1-5/8＂
- Swivel Interference
- 186mm7-7/16＂
- Overall Height
- 147mm5-7/8＂
- Swivel Radius
- 93mm3-11/16＂
- Hardness Of Tread
- 72±5° Shore D
- Load Capacity (Dynamic)
- 200kgs441lbs
- Load Capacity (Static)
- 300kgs661lbs
- Temperature
- -12°C to +60°C4°F to +140°F
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 2.30kgs5.1lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
