PU (red flat) Wheel Diameter × Wheel Width 125 × 40 mm

Picture may differ from original product

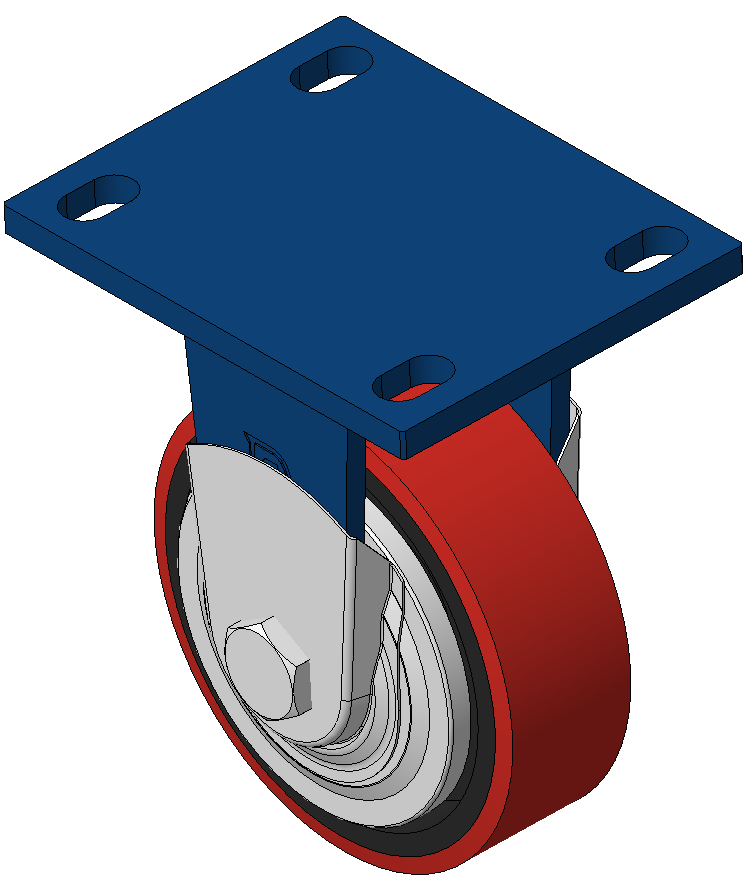

1102 B Type Caster Series

PU (red flat) Wheel Diameter × Wheel Width 125 × 40 mm

KS-11020500331021

Wheel Diameter125mm　5＂

Load Capacity (Dynamic)340kgs　750lbs

Overall Height170mm　6-13/16＂

Wheel BearingWheels With Ball Bearings

Fixed caster，Welded steel plate bracket—Hole spacing 110x75
Blue-painted finish，Top plate mounting，With special anti-wrap wheel covers
Cast iron wheel core，High-quality polyurethane tread
Reddish brown，Wheel bearing—Precision ball bearing
Tread:High-quality polyurethane
Wheel core:Iron/cast iron

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

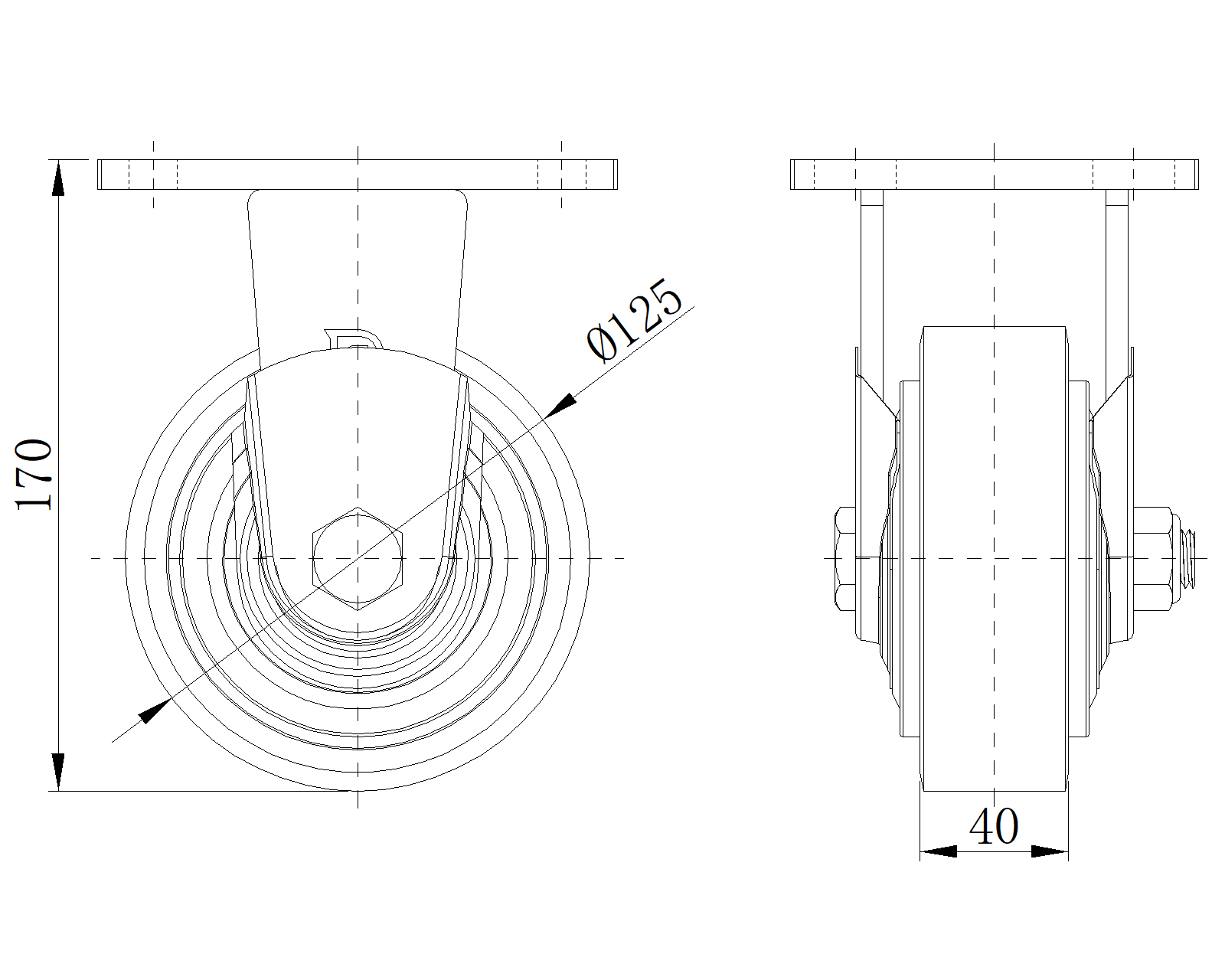

Wheel Diameter: 125mm5＂
Wheel Width: 40mm1-5/8＂
Wheel Bearing: Wheels With Ball Bearings

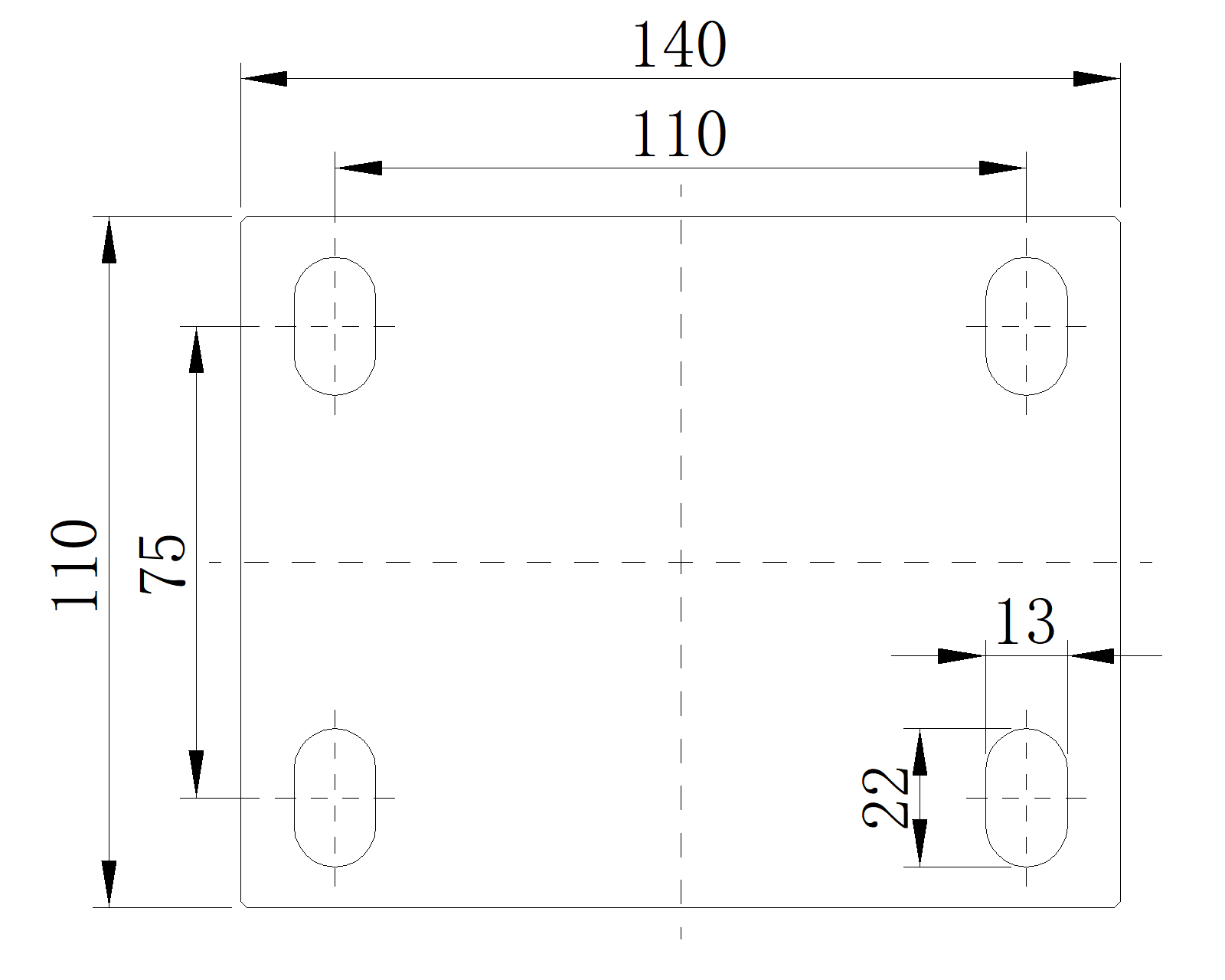

Plate Size: 140 x 110mm5-9/16＂ x 4-3/8＂
Bolt Hole Spacing: 110x75mm4-5/16＂x3”
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Overall Height: 170mm6-13/16＂
Hardness Of Tread: 93±5° Shore A
Load Capacity (Dynamic): 340kgs750lbs
Load Capacity (Static): 510kgs1124lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Rigid Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 3.00kgs6.6lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 3

Quiet OperationMax. 5 pointsScore: 4

Floor Surface PreservationMax. 5 pointsScore: 4
