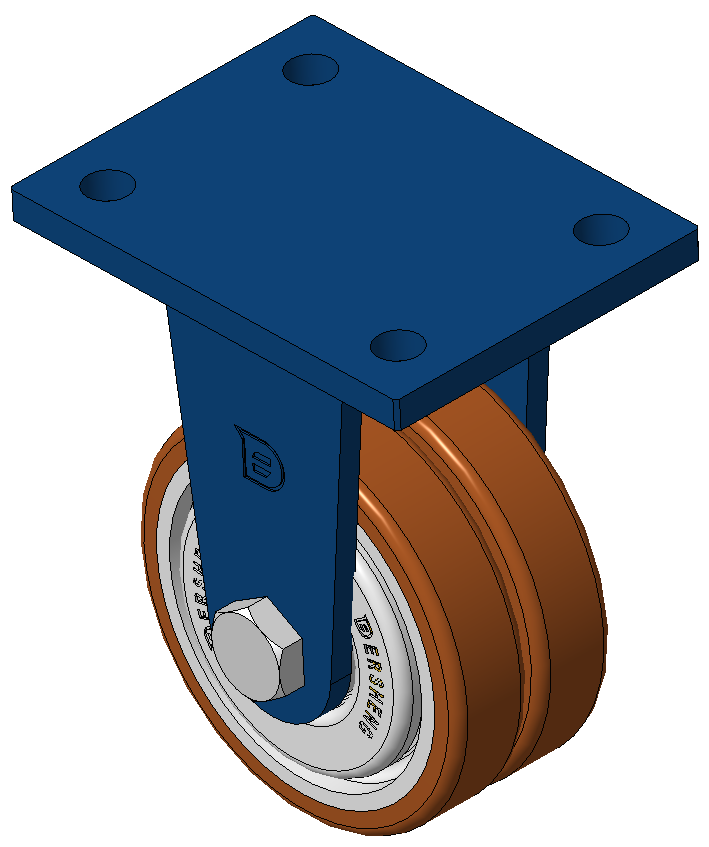

ZQPU (brown round) Wheel Diameter x Wheel Width 100 x 22 (46.5) mm

Picture may differ from original product

1102 B Type Caster Series

ZQPU (brown round) Wheel Diameter x Wheel Width 100 x 22 (46.5) mm

KS-11020400801021

Wheel Diameter100mm　4＂

Load Capacity (Dynamic)335kgs　739lbs

Overall Height147mm　5-7/8＂

Wheel BearingWheels With Ball Bearings

Fixed caster，Welded steel plate bracket—Hole spacing 90 x 60
Blue-painted finish，Top plate mounting
Cast iron wheel core，High-quality polyurethane tread，Brown
Wheel bearing—Special precision ball bearing，Reduced running resistance
ZQPU twin wheels，Ergonomic design，Easier starting and swiveling
Tread:High-quality polyurethane
Wheel core：Iron/cast iron core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

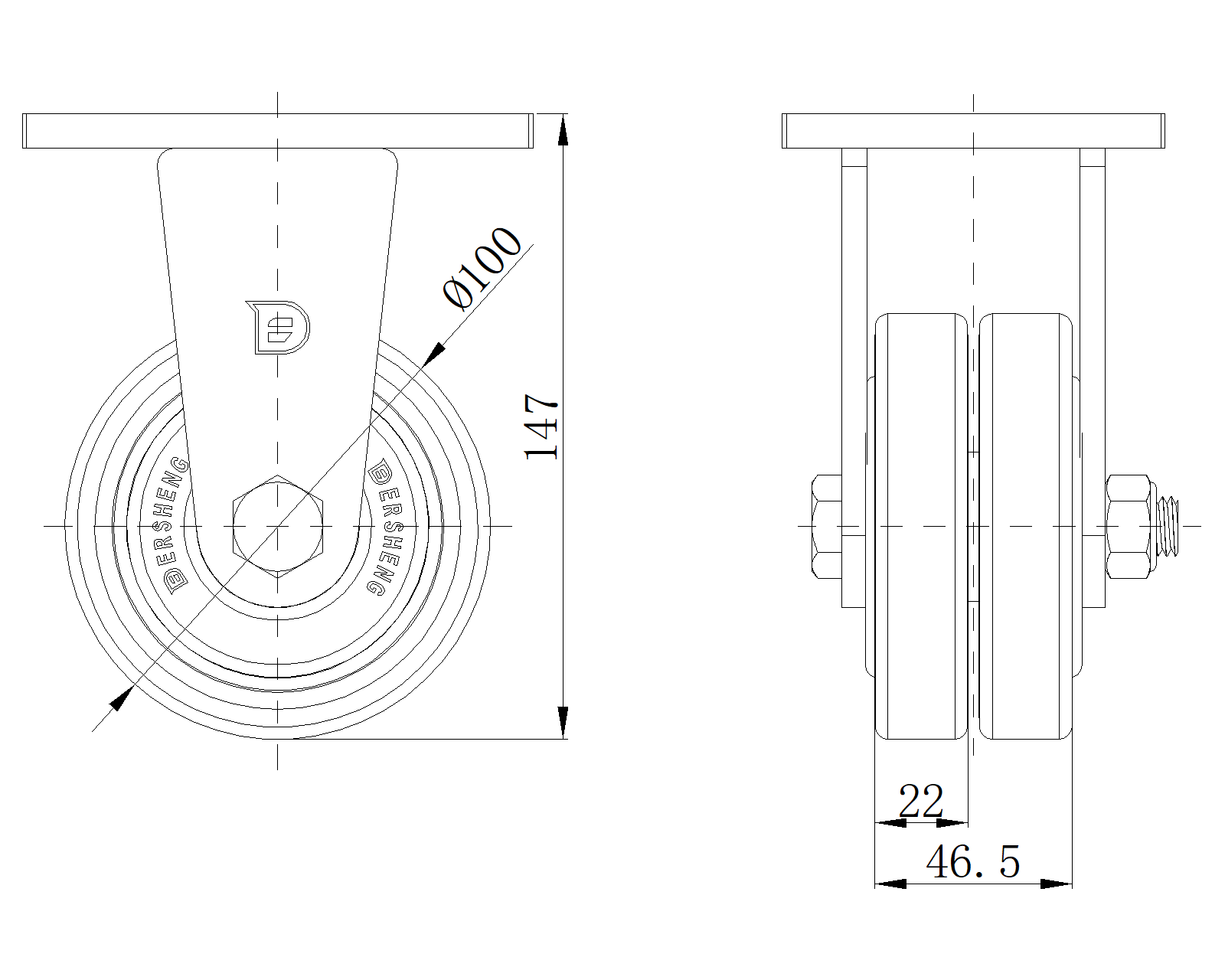

Product Data Sheet

Wheel Diameter: 100mm4＂
Wheel Width: 22mm7/8＂
Wheel Bearing: Wheels With Ball Bearings

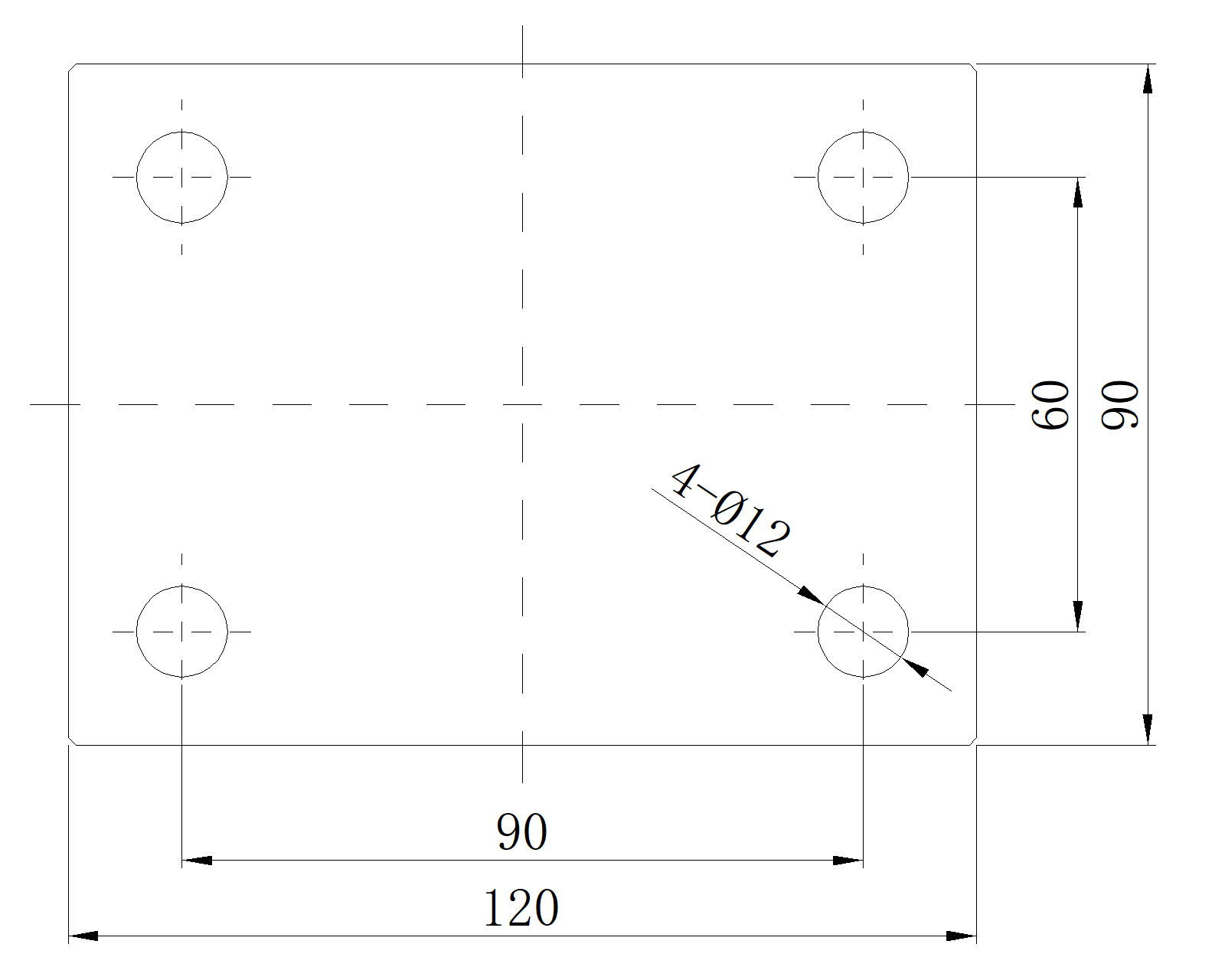

Plate Size: 120 x 90mm4-13/16＂ x 3-9/16＂
Bolt Hole Spacing: 90 x 60mm3-9/16＂x 2-3/8＂
Plate Hole: 12mm1/2＂
Overall Height: 147mm5-7/8＂
Hardness Of Tread: 93±5° Shore A
Load Capacity (Dynamic): 335kgs739lbs
Load Capacity (Static): 502.5kgs1108lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Rigid Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 2.67kgs5.9lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 5

Floor Surface PreservationMax. 5 pointsScore: 5
