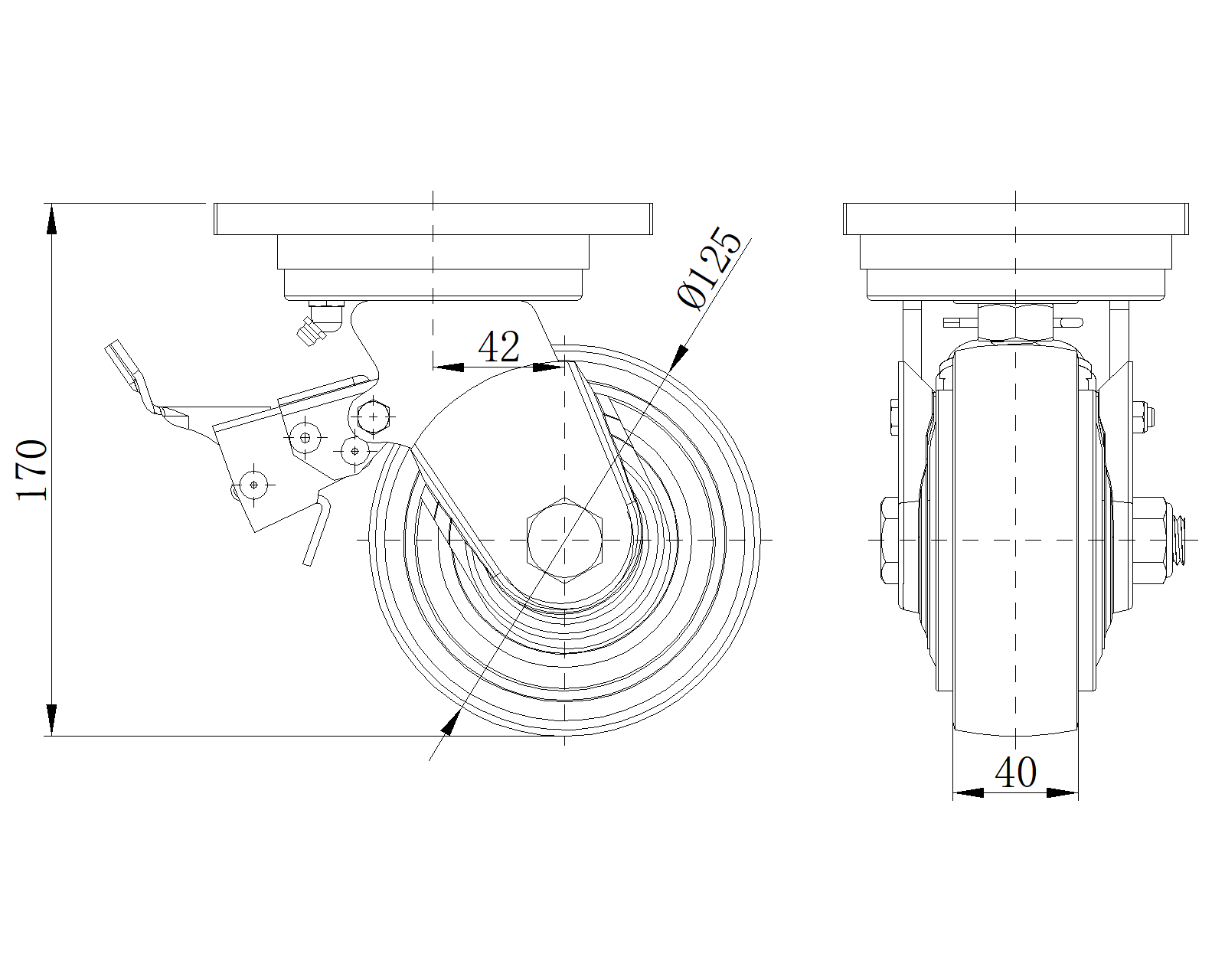

- Wheel Diameter
- 125mm5＂
- Wheel Width
- 40mm1-5/8＂
- Wheel Bearing
- Wheels With Ball Bearings

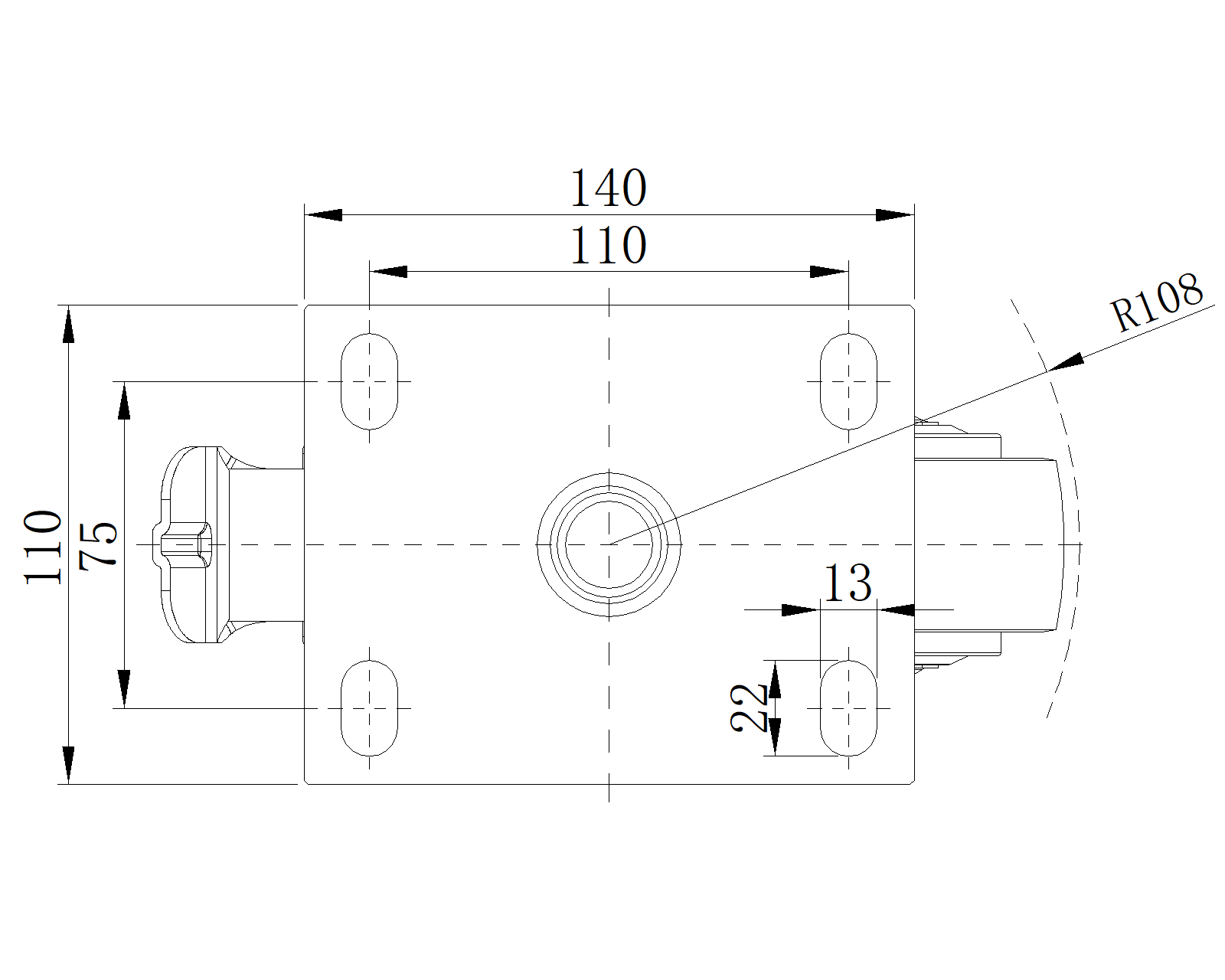

- Plate Size
- 140 x 110mm5-9/16＂ x 4-3/8＂
- Bolt Hole Spacing
- 110x75mm4-5/16＂x3”
- Plate Hole
- 22 x 13mm7/8＂ x 9/16＂
- Offset
- 42mm1-11/16＂
- Swivel Interference
- 216mm8-9/16＂
- Overall Height
- 170mm6-13/16＂
- Swivel Radius
- 108mm4-5/16＂
- Hardness Of Tread
- 93±5° Shore A
- Load Capacity (Dynamic)
- 340kgs750lbs
- Load Capacity (Static)
- 510kgs1124lbs
- Temperature
- -20°C to +70°C-4°F to +158°F
- Fork Type
- Swivel Caster With Rear Brake
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 4.32kgs9.5lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
