    Product Data Sheet
1102 B Type Caster Series
　　CPD Wheel Diameter x Wheel Width 125 x 40mm
　　EAN
　　　　　 KS-11020500294021
　　　　　 　　　

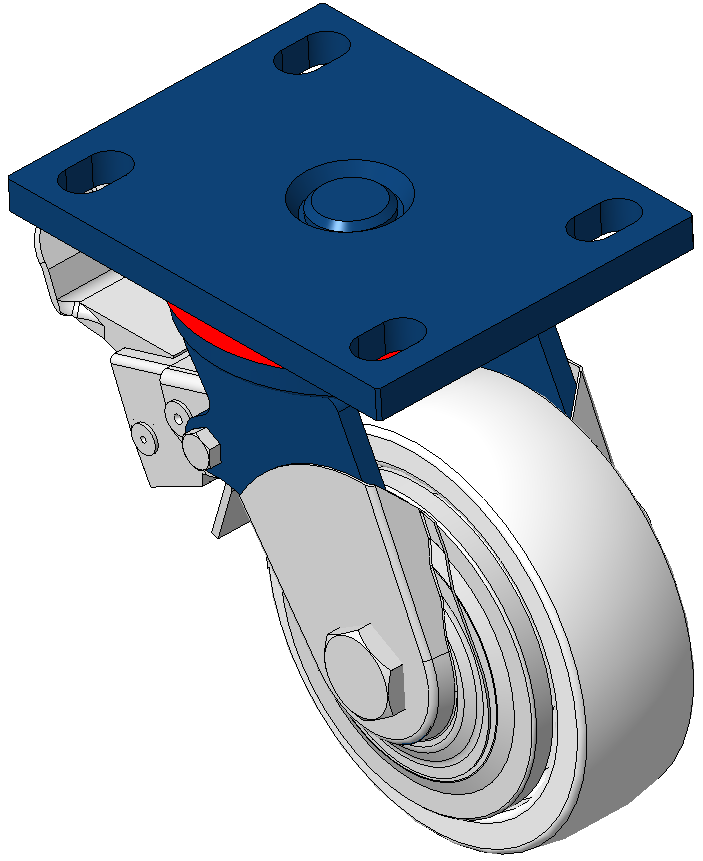

Casters with rear brake and With locking system, Welded Caster Fork
Blue-painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing
Polypropylene Wheel Center and Wheel Tread, natural color
Bearings—Ball Bearings with special Anti-thread wheel cover
　　Wheel surface: PP polypropylene
　　Wheel Center: PP polypropylene

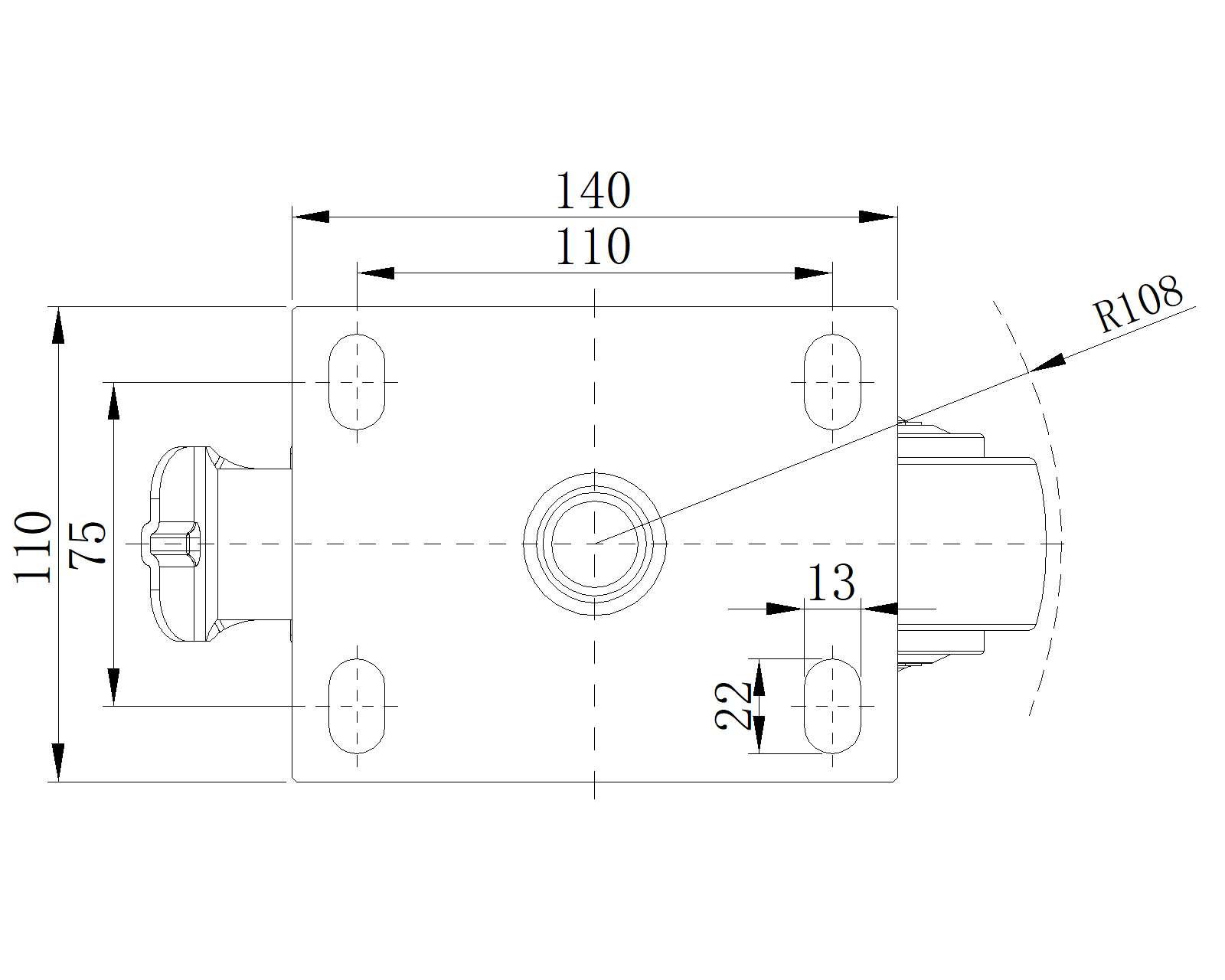

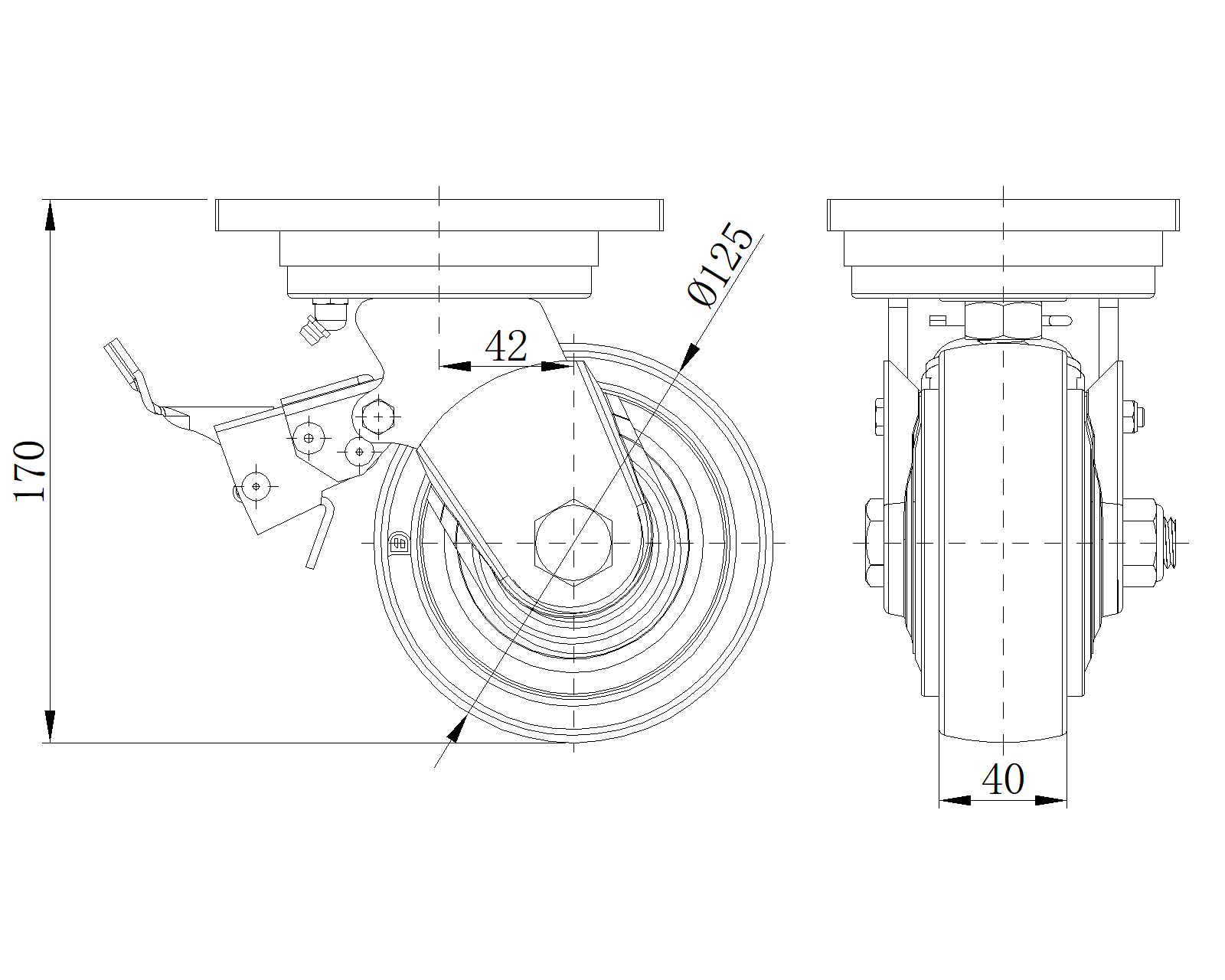

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 22 x 13mm　
　　Offset 42mm　
　　Swivel Interference 216mm　
　　Overall Height 170mm　
　　Swivel Radius 108mm　
　　Hardness Of Tread 72±5° Shore D　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 375kgs　
　　Temperature -12°C to +60°C　
　　Fork Type Swivel Caster With Rear Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 3.51kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1102 B Type Caster Series
CPD Wheel Diameter x Wheel Width 125 x 40mm
KS-11020500291021
125 mm 250 Kgs 170 mm

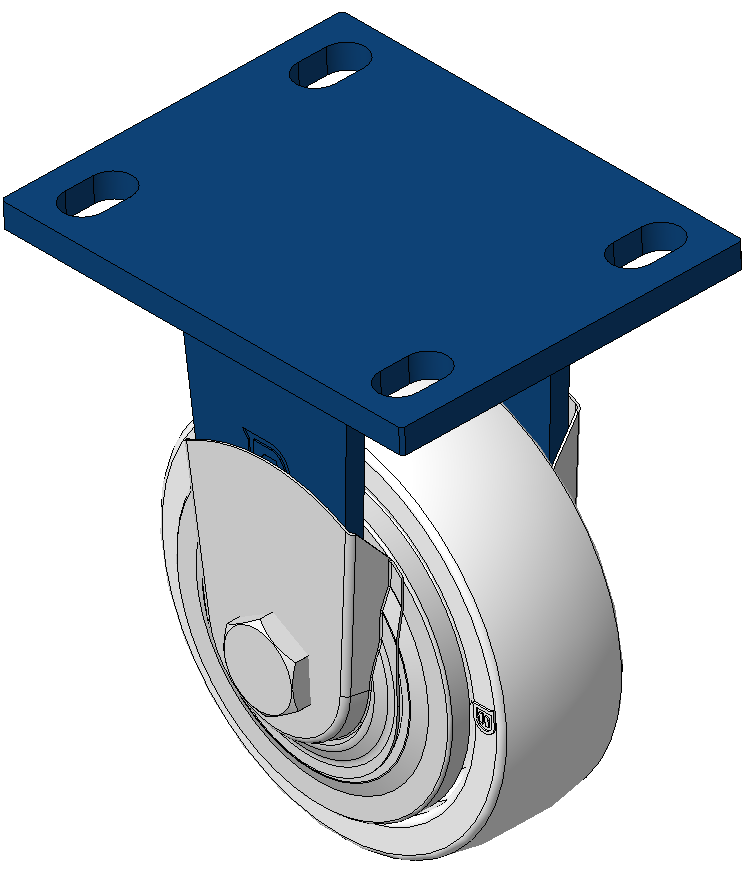

Rigid Caster with Welded Caster Fork
