QPU (Brown round) Wheel Diameter × Wheel Width 125 x 40mm

Picture may differ from original product

1102 B Type Caster Series

QPU (Brown round) Wheel Diameter × Wheel Width 125 x 40mm

KS-11020500534131

Wheel Diameter125mm　5＂

Load Capacity (Dynamic)450kgs　992lbs

Overall Height170mm　6-13/16＂

Wheel BearingWheels With Ball Bearings

Casters with Front Brake locking system, Welded Caster Fork - Hole spacing 110x75
Blue painted finish, Mounting Type - Top Plate
Cast Iron Wheel Center, High Quality Polyurethane tread
Iron brown, Bearing - Ball Bearing.
Wheel Tread: Made of high-quality polyurethane
Wheel center: iron core/cast iron

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

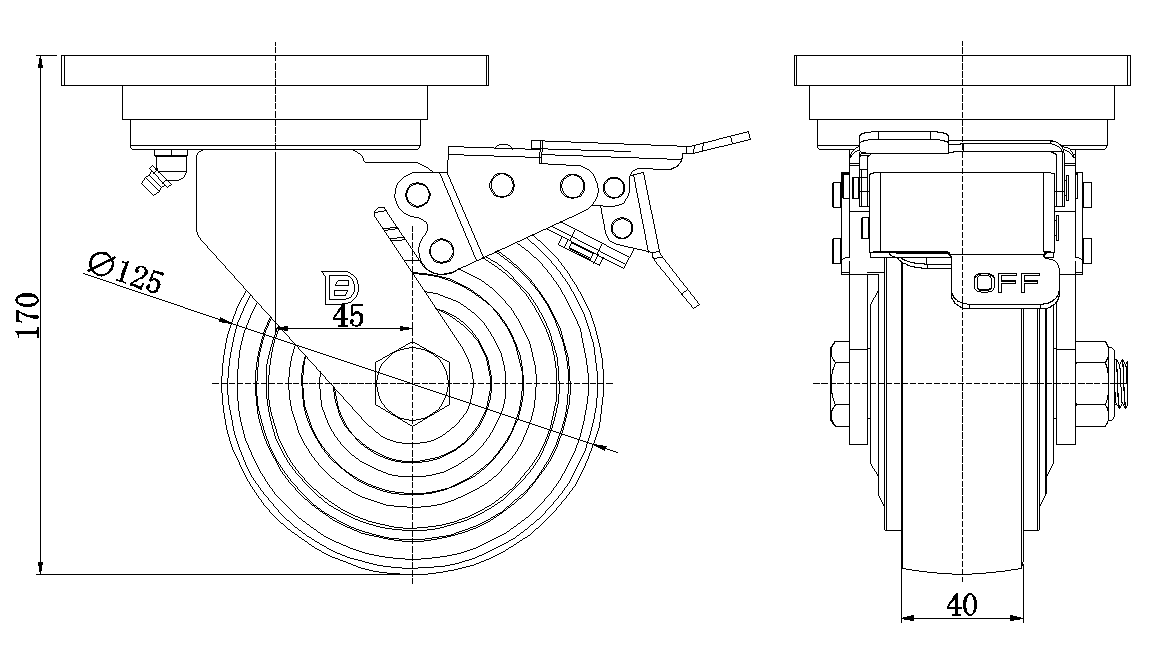

Wheel Diameter: 125mm5＂
Wheel Width: 40mm1-5/8＂
Wheel Bearing: Wheels With Ball Bearings

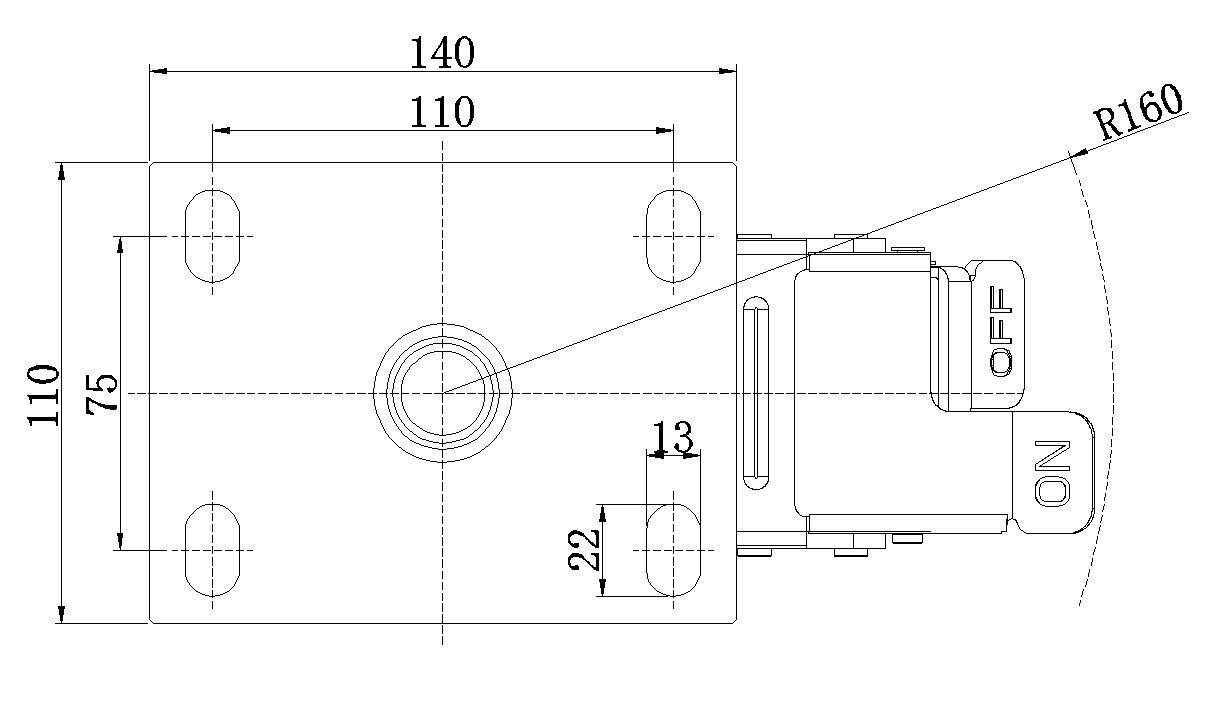

Plate Size: 140 x 110mm5-9/16＂ x 4-3/8＂
Bolt Hole Spacing: 110x75mm4-5/16＂x3”
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Offset: 45mm1-13/16＂
Swivel Interference: 320mm12-11/16＂
Overall Height: 170mm6-13/16＂
Swivel Radius: 160mm6-3/8＂
Hardness Of Tread: 92±5° Shore A
Load Capacity (Dynamic): 450kgs992lbs
Load Capacity (Static): 675kgs1488lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Swivel Caster With Front Brake
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 4.27kgs9.4lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 5

Floor Surface PreservationMax. 5 pointsScore: 5
