    Product Data Sheet
1102 B Type Caster Series
　　MRC (Transparent) Wheel Diameter x Wheel Width 200 x 50mm
　　EAN
　　　　　 KS-11020800071011
　　　　　 　　　
Rigid Caster, Welded Caster Fork, blue paint finish
Mounting Type - Top Plate, 110x75 Bolt Hole Spacing
Polypropylene Wheel Center, natural color Wheel Tread
Bearing—Ball Bearing
　　Wheel surface: PP polypropylene
　　Wheel Center: PP polypropylene

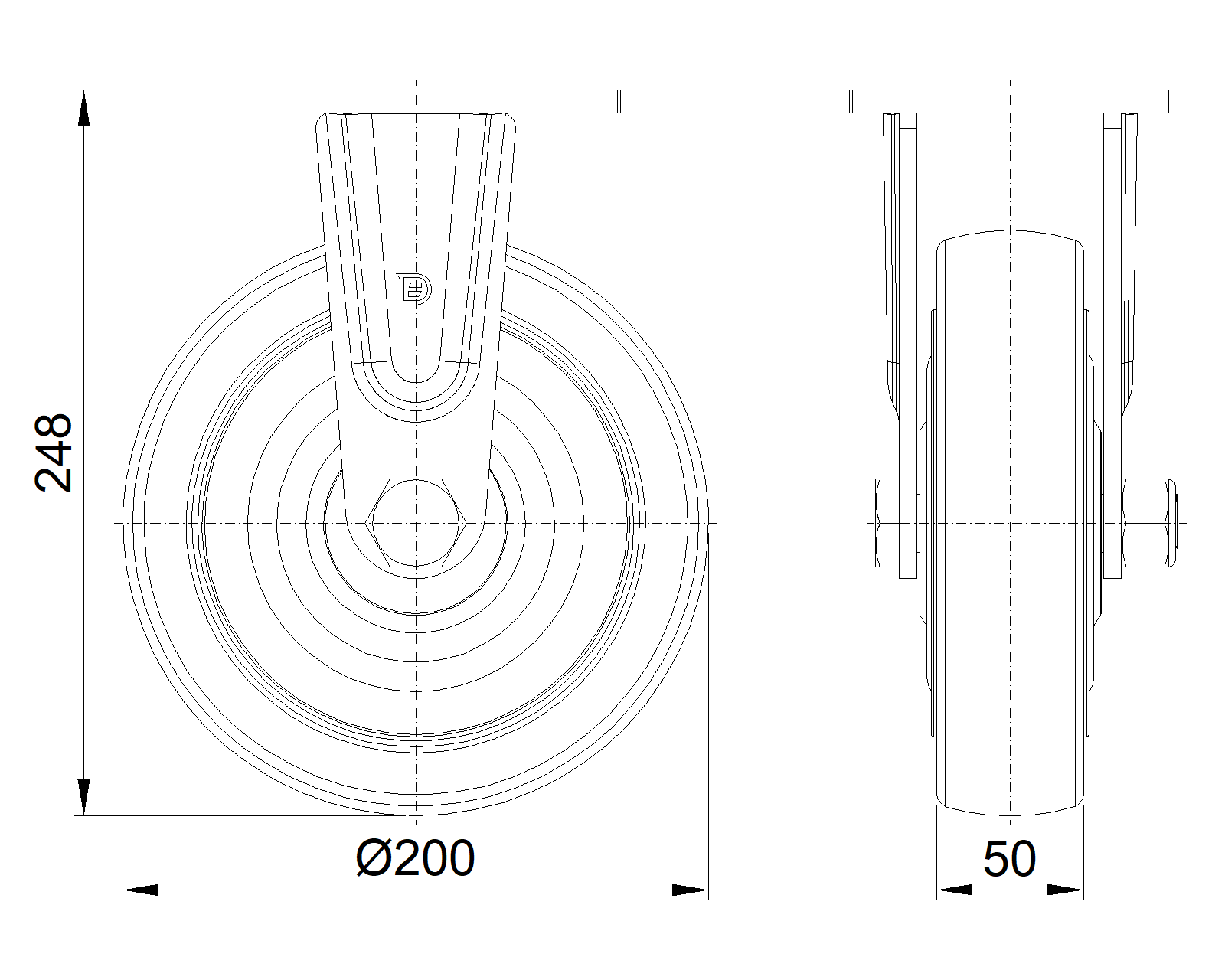

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 200mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings

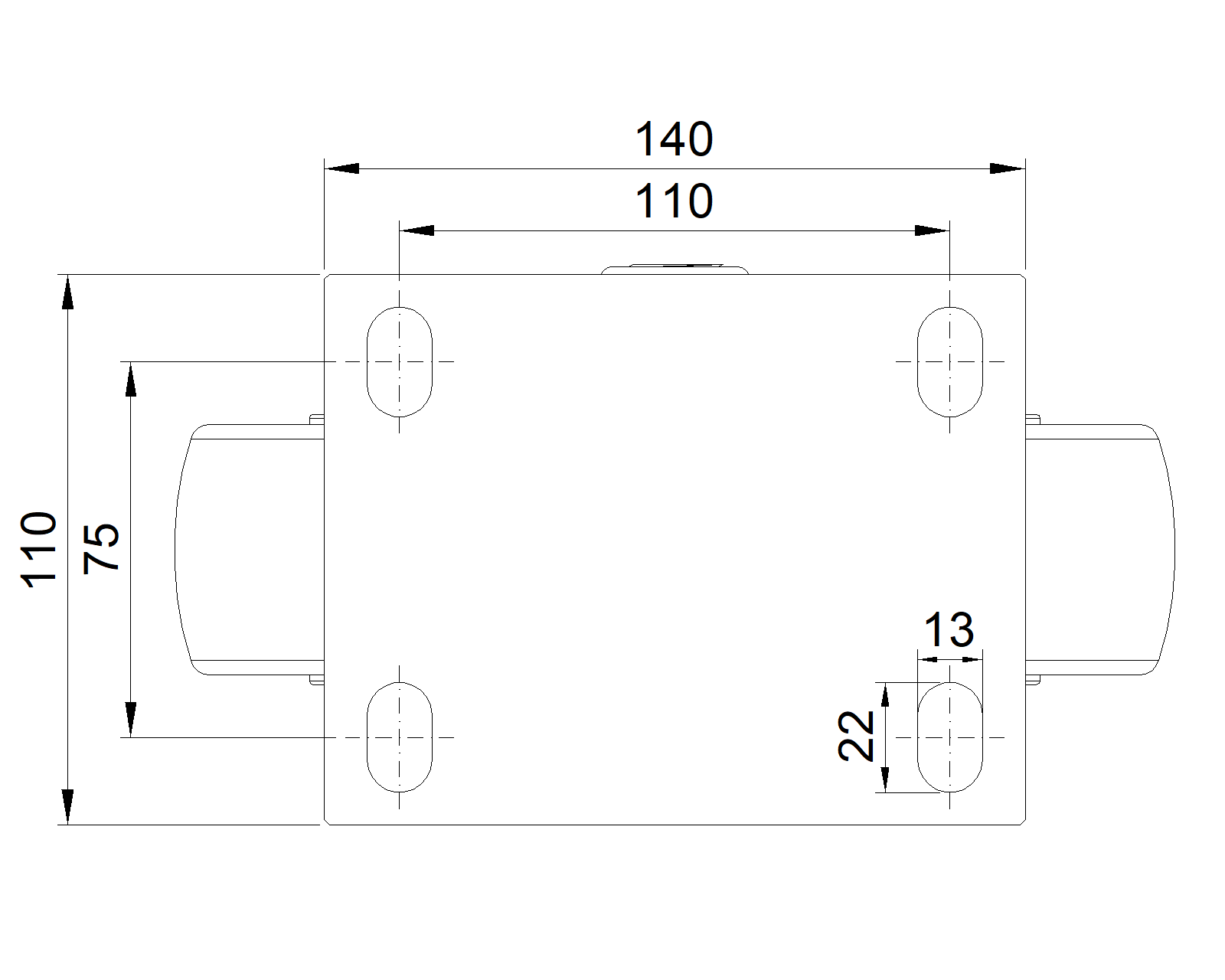

　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 22 x 13mm　
　　Overall Height 248mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 450kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 675kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 3.72kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1102 B Type Caster Series
MRC (Transparent) Wheel Diameter x Wheel Width 200 x 50mm
KS-11020800071021
200 mm 450 Kgs 248 mm
Rigid Caster with Welded Caster Fork and blue paint finish.
Mounting Type - Top Plate, 110x75 Bolt Hole Spacing
Polypropylene Wheel Center, natural Wheel Tread
Bearings—Ball Bearings with special anti-twist wheel covers
1102 B Type Caster Series
MRC (Transparent) Wheel Diameter x Wheel Width 200 x 50mm
KS-11020800074011
200 mm 450 Kgs 248 mm
Casters with rear brake and With locking system, Welded Caster Fork Blue-painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Reinforced Polypropylene Wheel Center, natural Wheel Tread Bearings—Ball Bearings
1102 B Type Caster Series
MRC (Transparent) Wheel Diameter x Wheel Width 200 x 50mm
KS-11020800074021
200 mm 450 Kgs 248 mm
Casters with rear brake and With locking system, Welded Caster Fork Blue-painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Reinforced Polypropylene Wheel Center, natural Wheel Tread Bearings—Ball Bearings with special Anti-thread wheel cover

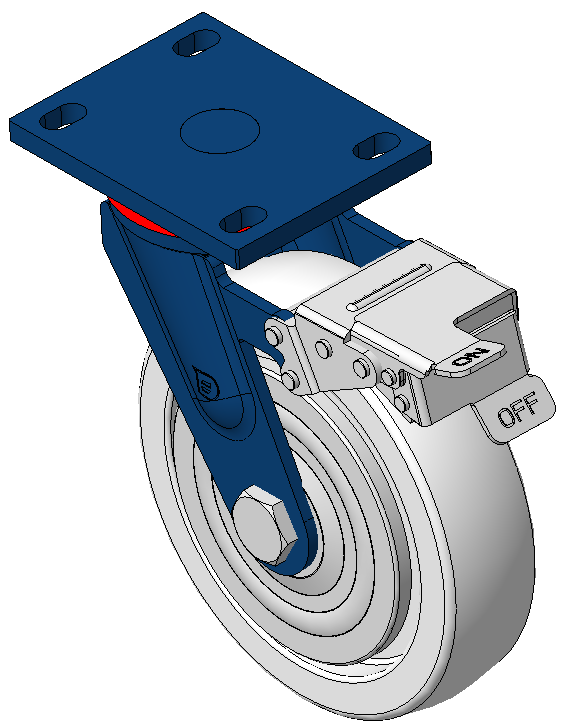

1102 B Type Caster Series
MRC (Transparent) Wheel Diameter x Wheel Width 200 x 50mm
KS-11020800074071
200 mm 400 Kgs 248 mm
Casters with front brake and With locking system, Welded Caster Fork Blue-painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Reinforced Polypropylene Wheel Center, natural Wheel Tread Bearings—Ball Bearings
1102 B Type Caster Series
MRC (Transparent) Wheel Diameter x Wheel Width 200 x 50mm
KS-11020800074061
200 mm 400 Kgs 248 mm
Casters with front brake and With locking system, Welded Caster Fork Blue-painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Reinforced Polypropylene Wheel Center, natural Wheel Tread Bearings—Ball Bearings with special Anti-thread wheel cover
