    Product Data Sheet
1102 B Type Caster Series
　　QPU (Brown Flat) Wheel Diameter x Wheel Width 200 x 50mm
　　EAN

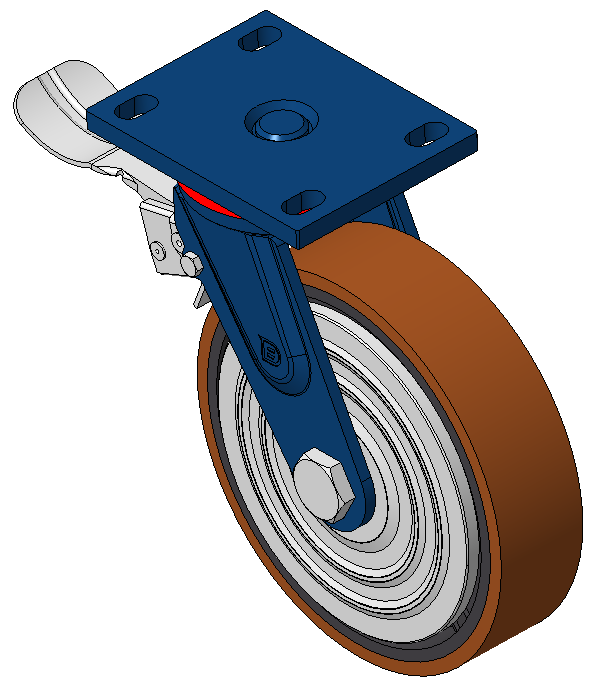

　　　　　 KS-11020800534041
　　　　　 　　　
Casters with rear brake and With locking system, Welded Caster Fork Blue-painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron brown Bearings—Ball Bearings
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

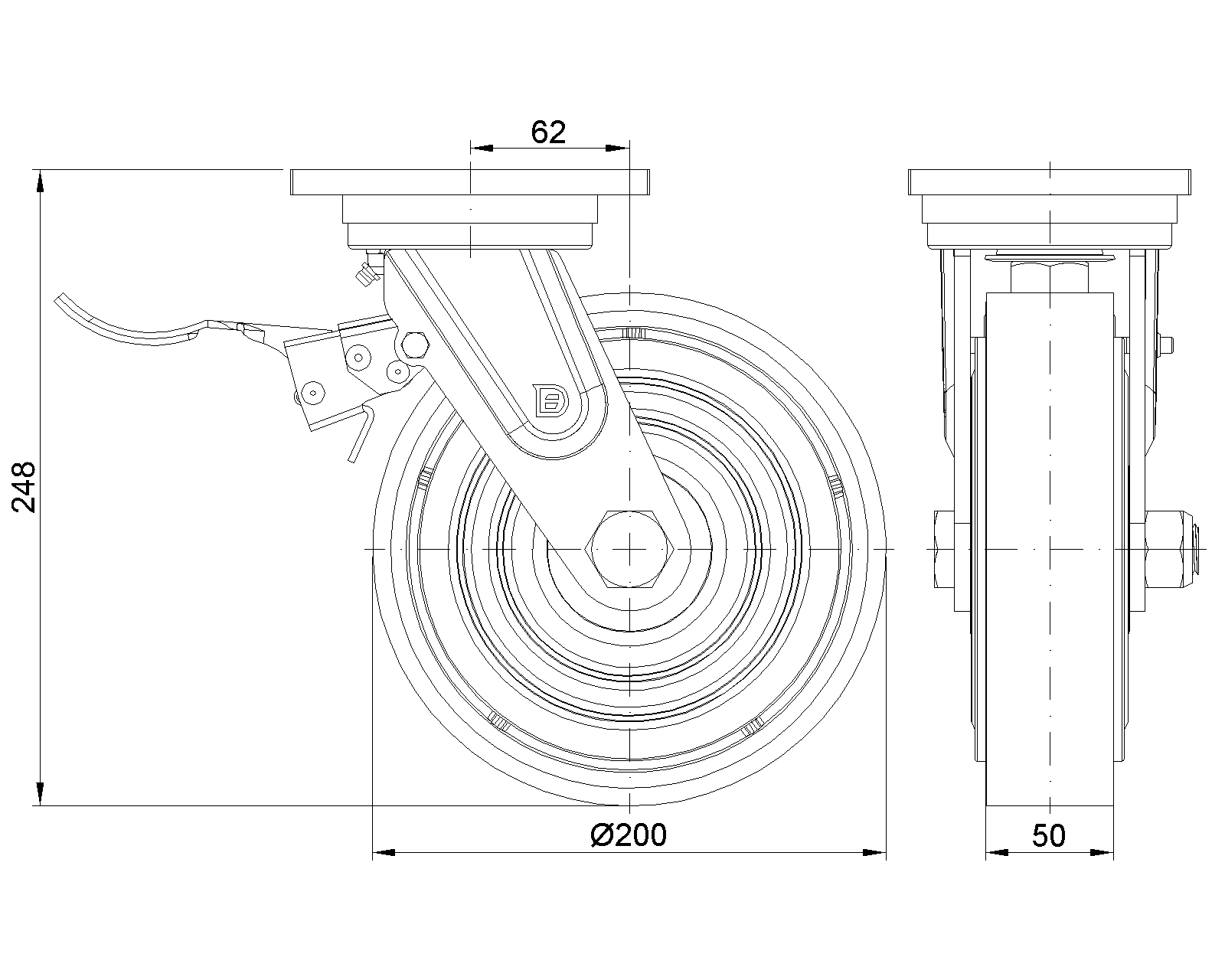

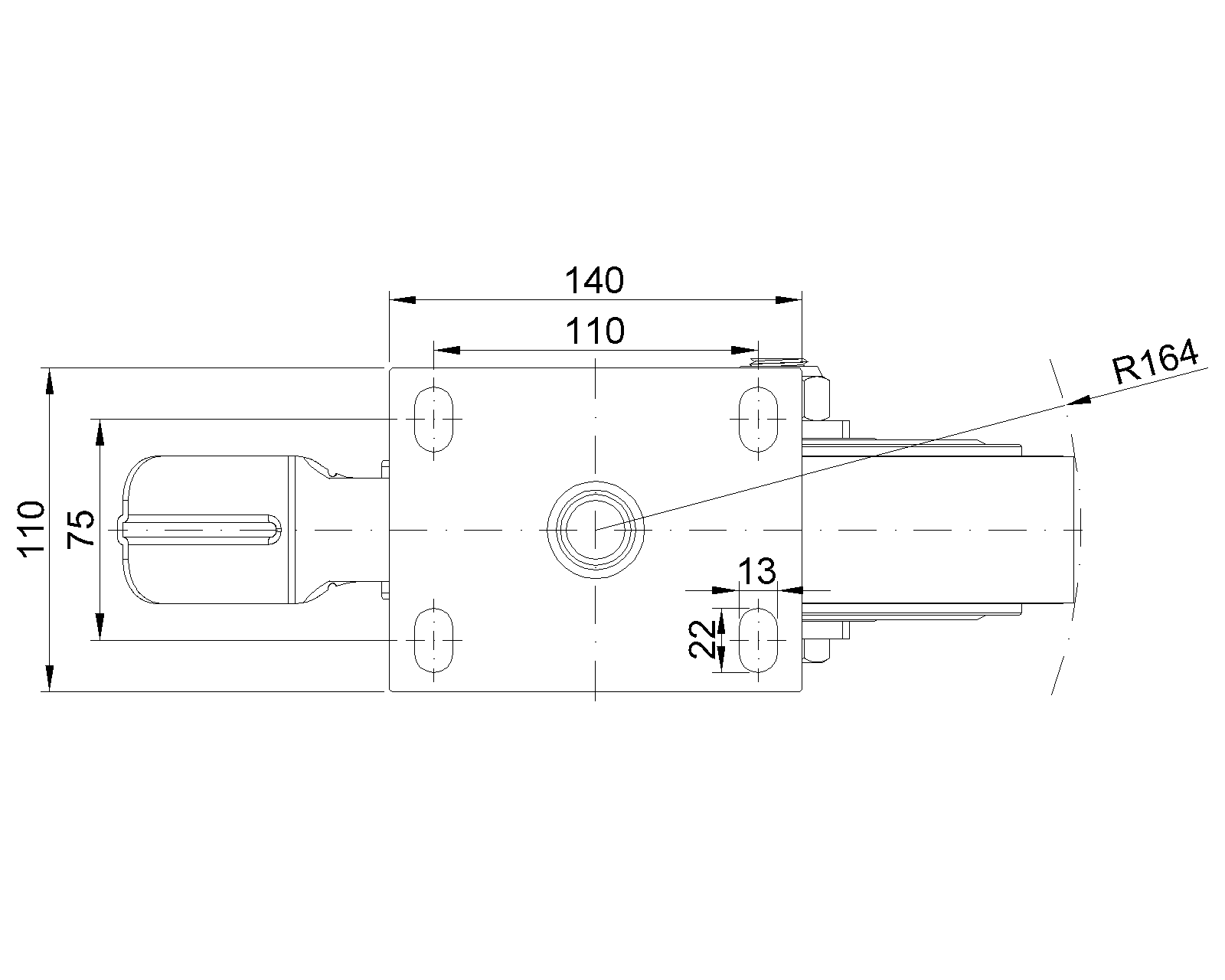

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 200mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 22 x 13mm　
　　Offset 62mm　
　　Swivel Interference 328mm　
　　Overall Height 248mm　
　　Swivel Radius 164mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 720kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 1080kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Rear Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 6.32kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1102 B Type Caster Series
QPU (Brown Flat) Wheel Diameter x Wheel Width 200 x 50mm

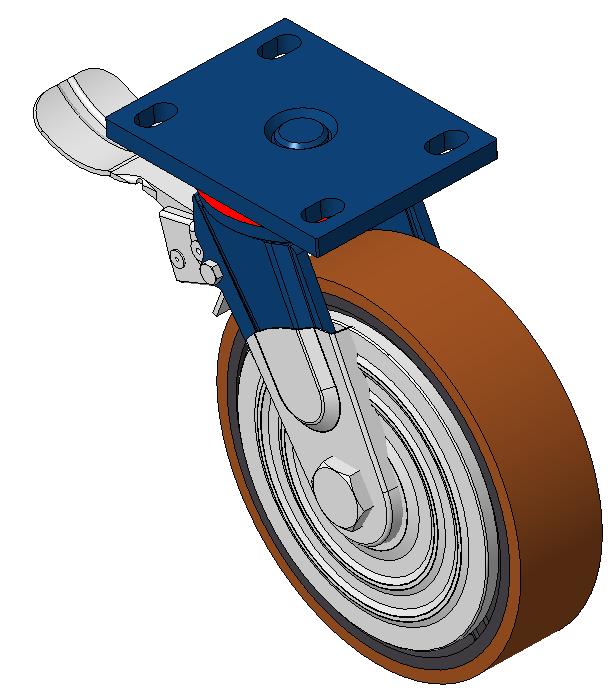

KS-11020800534031
200 mm 720 Kgs 248 mm
Casters with rear brake and With locking system, Welded Caster Fork Blue-painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron brown Bearings—Ball Bearings with special Anti-thread wheel cover
1102 B Type Caster Series
QPU (Brown Flat) Wheel Diameter x Wheel Width 200 x 50mm

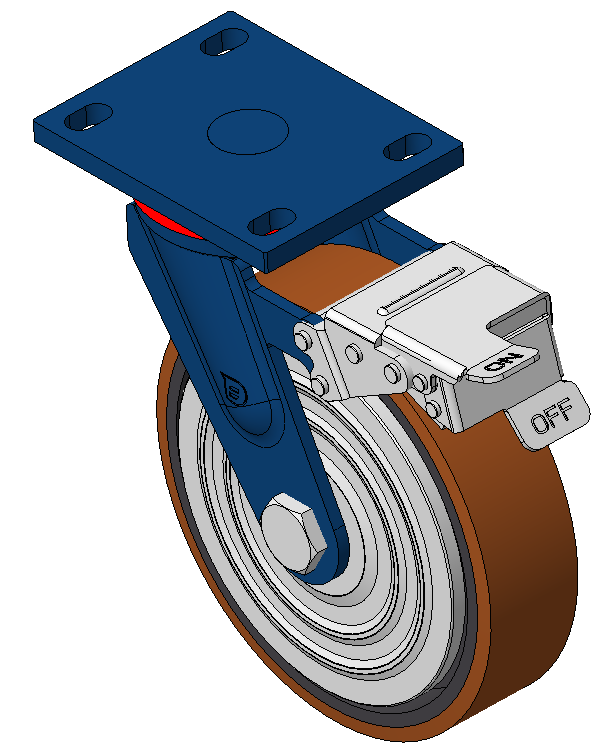

KS-11020800534061
200 mm 720 Kgs 248 mm
Castors with Front Brake locking system, Welded Caster Fork, blue painted surface Top Plate Mounting Type, Hole spacing 110x75 Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron brown Bearing - Ball Bearing
1102 B Type Caster Series
QPU (Brown Flat) Wheel Diameter x Wheel Width 200 x 50mm
KS-11020800534061
200 mm 720 Kgs 248 mm

Caster with front brake and With locking system, Welded Caster Fork
Blue painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron brown
Bearings - Ball Bearings
1102 B Type Caster Series
QPU (Brown Flat) Wheel Diameter x Wheel Width 200 x 50mm

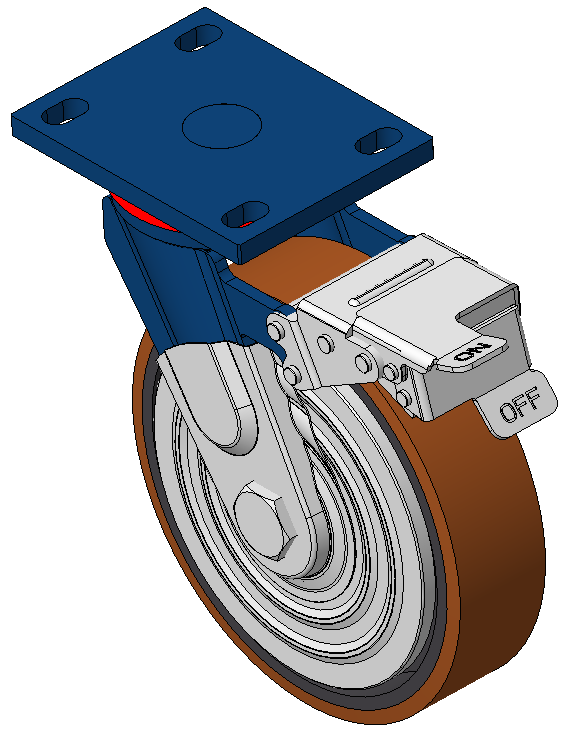

KS-11020800534051
