MRC (Transparent) Wheel Diameter × Wheel Width 150 x 40mm

Picture may differ from original product

1102 B Type Caster Series

MRC (Transparent) Wheel Diameter × Wheel Width 150 x 40mm

KS-11020600074021

Wheel Diameter150mm　6＂

Load Capacity (Dynamic)400kgs　882lbs

Overall Height197mm　7-7/8＂

Wheel BearingWheels With Ball Bearings

Rear Brake Locking system, Welded Caster Fork
Blue-painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing
Natural thermoplastic Wheel Center and tread
Precision ball bearings with special Anti-thread wheel cover
Wheel tread: Thermoplastic (PA6)
Wheel Center: Thermoplastic (PA6)

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

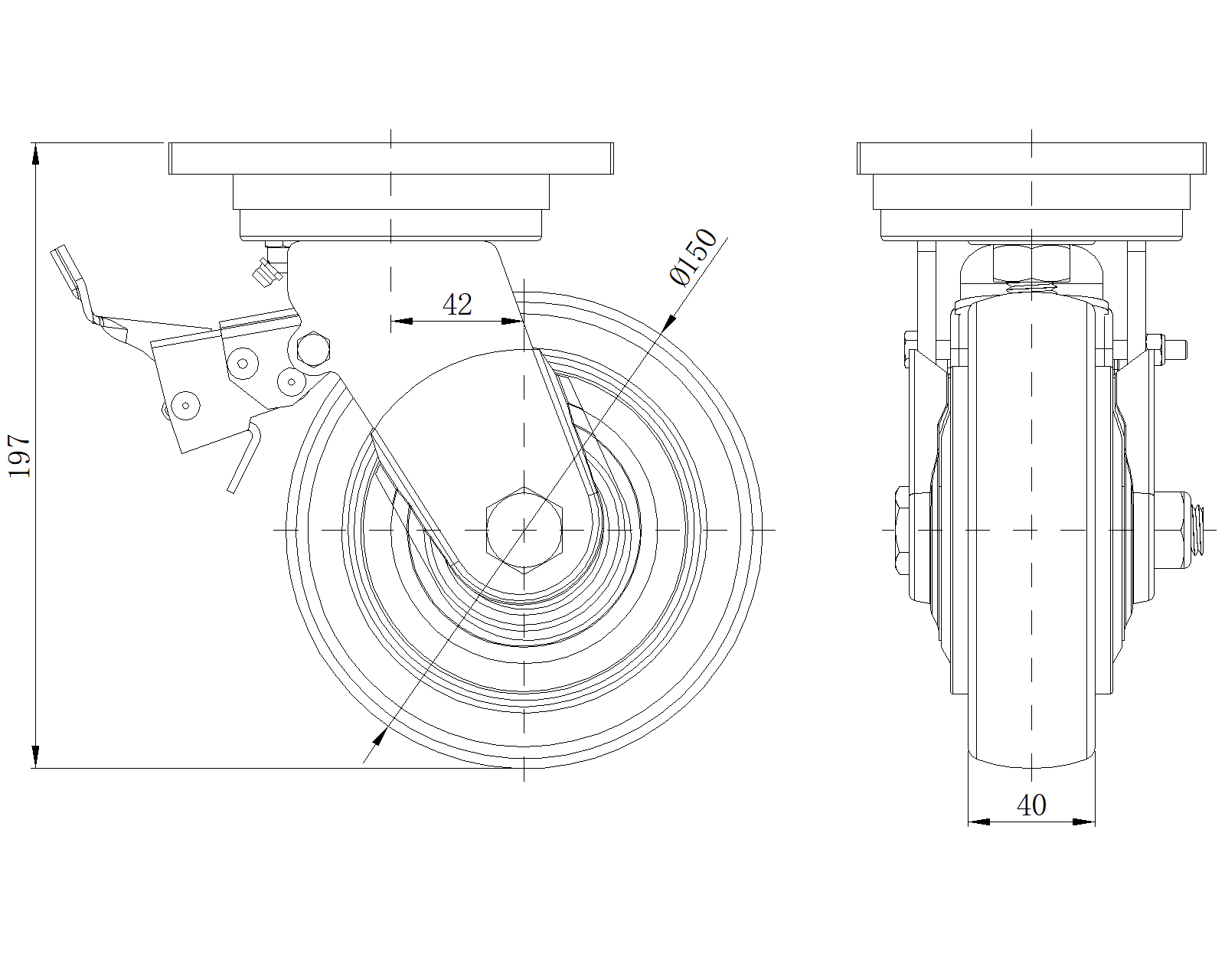

Product Data Sheet

Wheel Diameter: 150mm6＂
Wheel Width: 40mm1-5/8＂
Wheel Bearing: Wheels With Ball Bearings

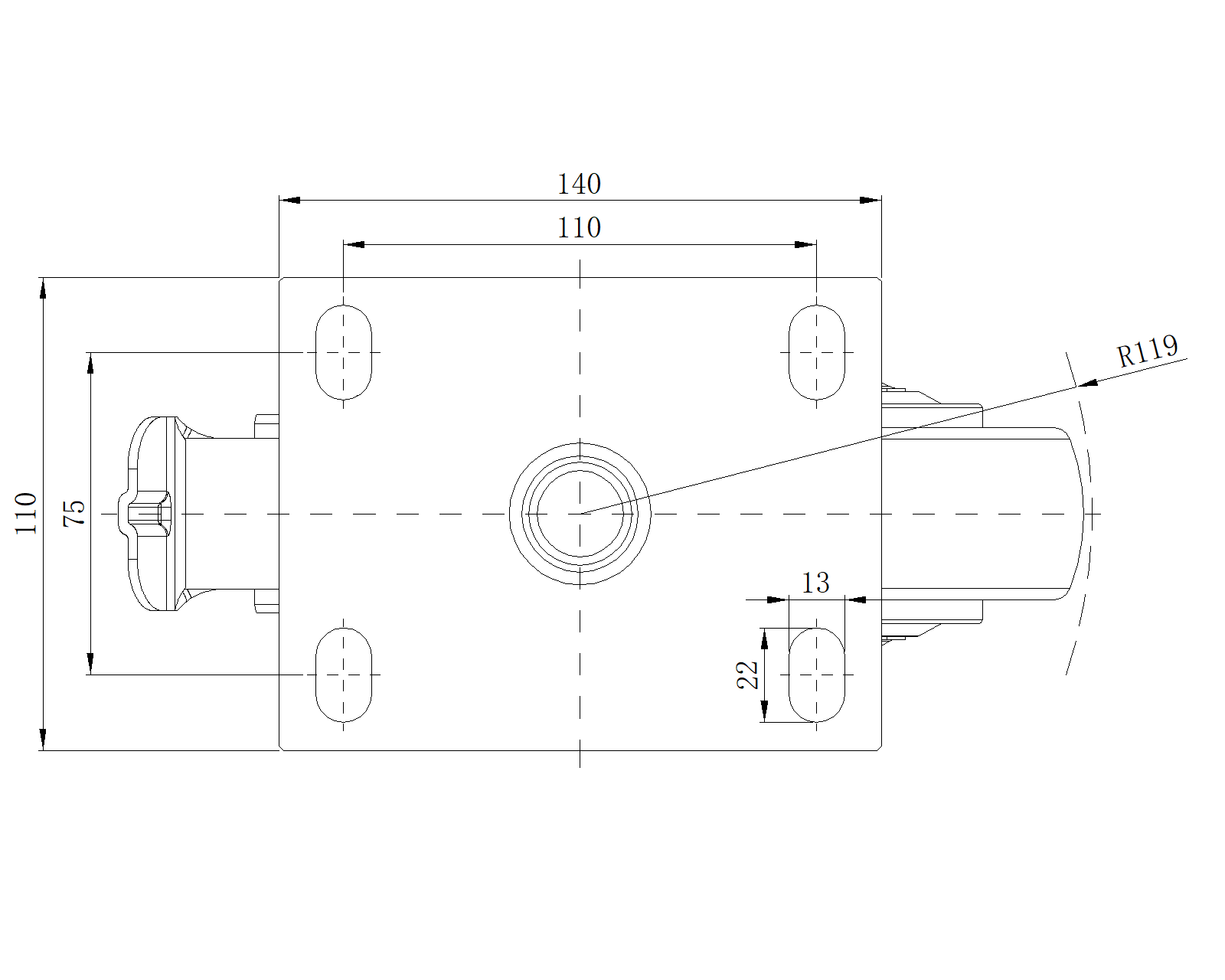

Plate Size: 140 x 110mm5-9/16＂ x 4-3/8＂
Bolt Hole Spacing: 110x75mm4-5/16＂x3”
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Offset: 42mm1-11/16＂
Swivel Interference: 238mm9-1/2＂
Overall Height: 197mm7-7/8＂
Swivel Radius: 119mm4-3/4＂
Hardness Of Tread: 75±5° Shore D
Load Capacity (Dynamic): 400kgs882lbs
Load Capacity (Static): 600kgs1323lbs
Temperature: -20°C to +80°C-4°F to +176°F
Fork Type: Swivel Caster With Rear Brake
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 4.32kgs9.5lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 2

Floor Surface PreservationMax. 5 pointsScore: 2
