QPU (brown round) Wheel Diameter x Wheel Width 254x 62mm

Picture may differ from original product

1102 B Type Caster Series

QPU (brown round) Wheel Diameter x Wheel Width 254x 62mm

KS-11021000534111

Wheel Diameter254mm　10-1/16＂

Load Capacity (Dynamic)900kgs　1984lbs

Overall Height307mm　12-3/16＂

Wheel BearingWheels With Ball Bearings

With rear brake，Caster with locking system，Welded steel plate bracket
Blue-painted finish，Top plate mounting，Hole spacing 140x85
Cast iron wheel core，High-quality polyurethane tread，Brown
Wheel bearing—Precision ball bearing
Tread：High-quality polyurethane
Wheel core：Iron/cast iron core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

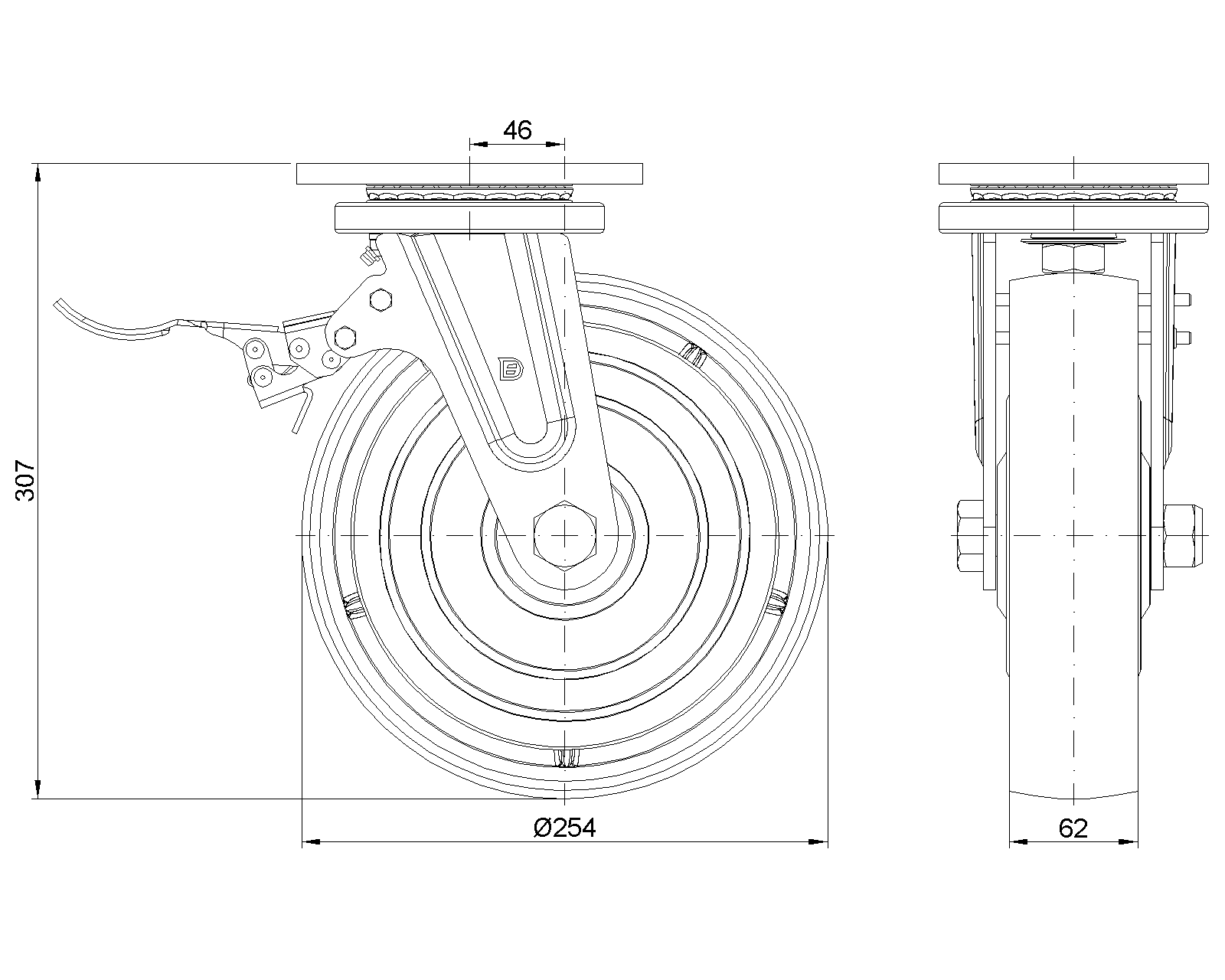

Wheel Diameter: 254mm10-1/16＂
Wheel Width: 62mm2-1/2＂
Wheel Bearing: Wheels With Ball Bearings

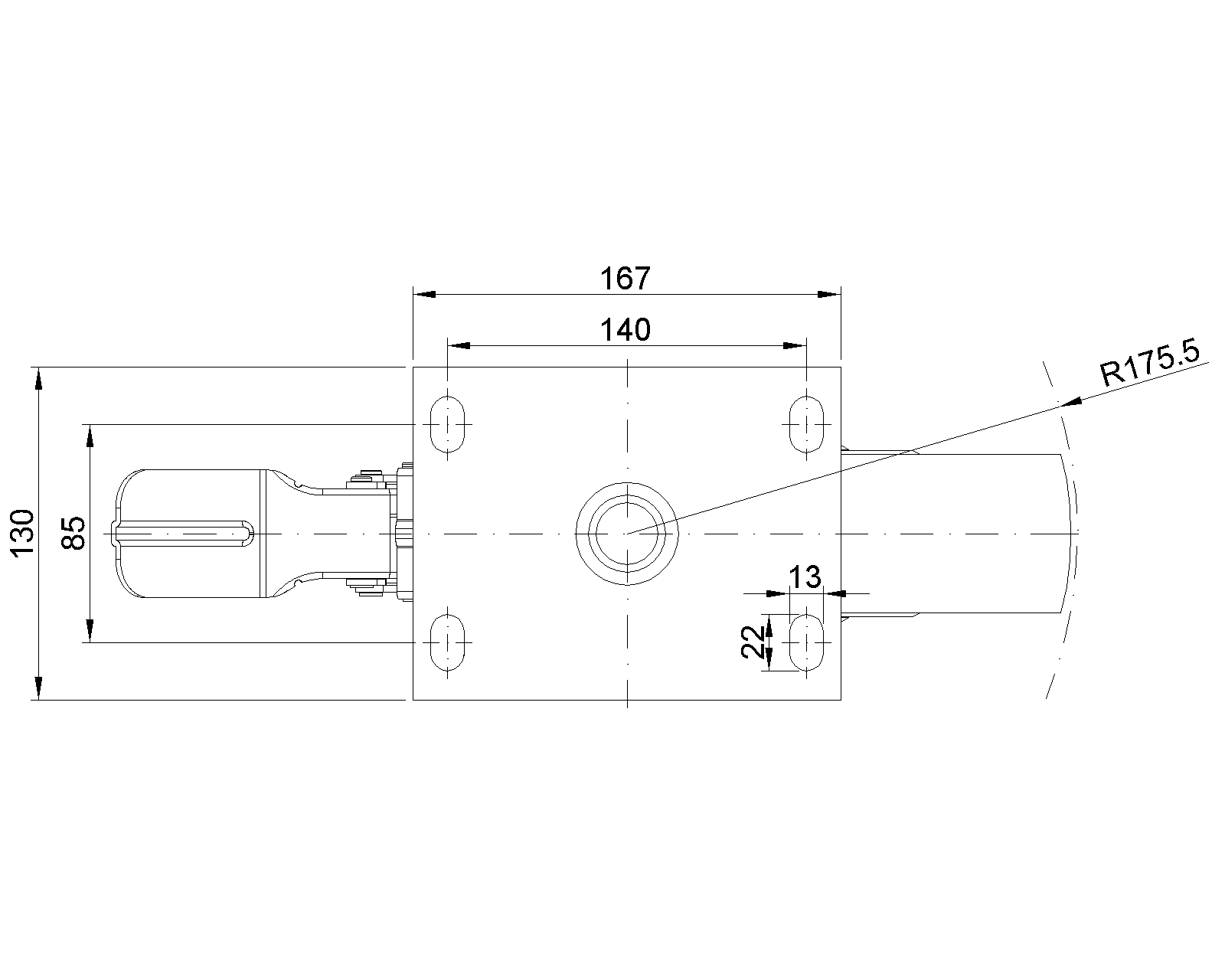

Plate Size: 167 x 130mm6-5/8＂ x 5-3/16＂
Bolt Hole Spacing: 140x85mm5-1/2＂x3-3/8＂
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Offset: 46mm1-7/8＂
Swivel Interference: 351mm351
Overall Height: 307mm12-3/16＂
Swivel Radius: 175.5mm7＂
Hardness Of Tread: 92±5° Shore A
Load Capacity (Dynamic): 900kgs1984lbs
Load Capacity (Static): 1350kgs2976lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Swivel Caster With Rear Brake
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 11.74kgs25.9lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 5

Floor Surface PreservationMax. 5 pointsScore: 5
