    Product Data Sheet
1102 B Type Caster Series
　　Non-marking NBR Rubber (milling) Wheel Diameter x Wheel Width 250 x 63mm
　　EAN
　　　　　 KS-11021000044031
　　　　　 　　　

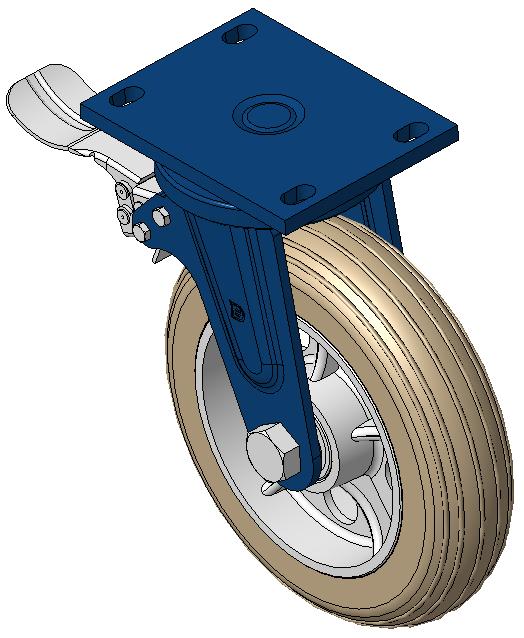

Casters with rear brake and With locking system, Welded Caster Fork Blue-painted finish, Mounting Type - Top Plate, 140x85 Bolt Hole Spacing Cast Iron Wheel Center, High-Quality, highly Resilient Rubber Wheel Tread, Cast Iron in natural color Bearings—Ball Bearings
　　Wheel surface: Made of high-quality and highly elastic rubber
　　Wheel Center: iron core/cast iron core

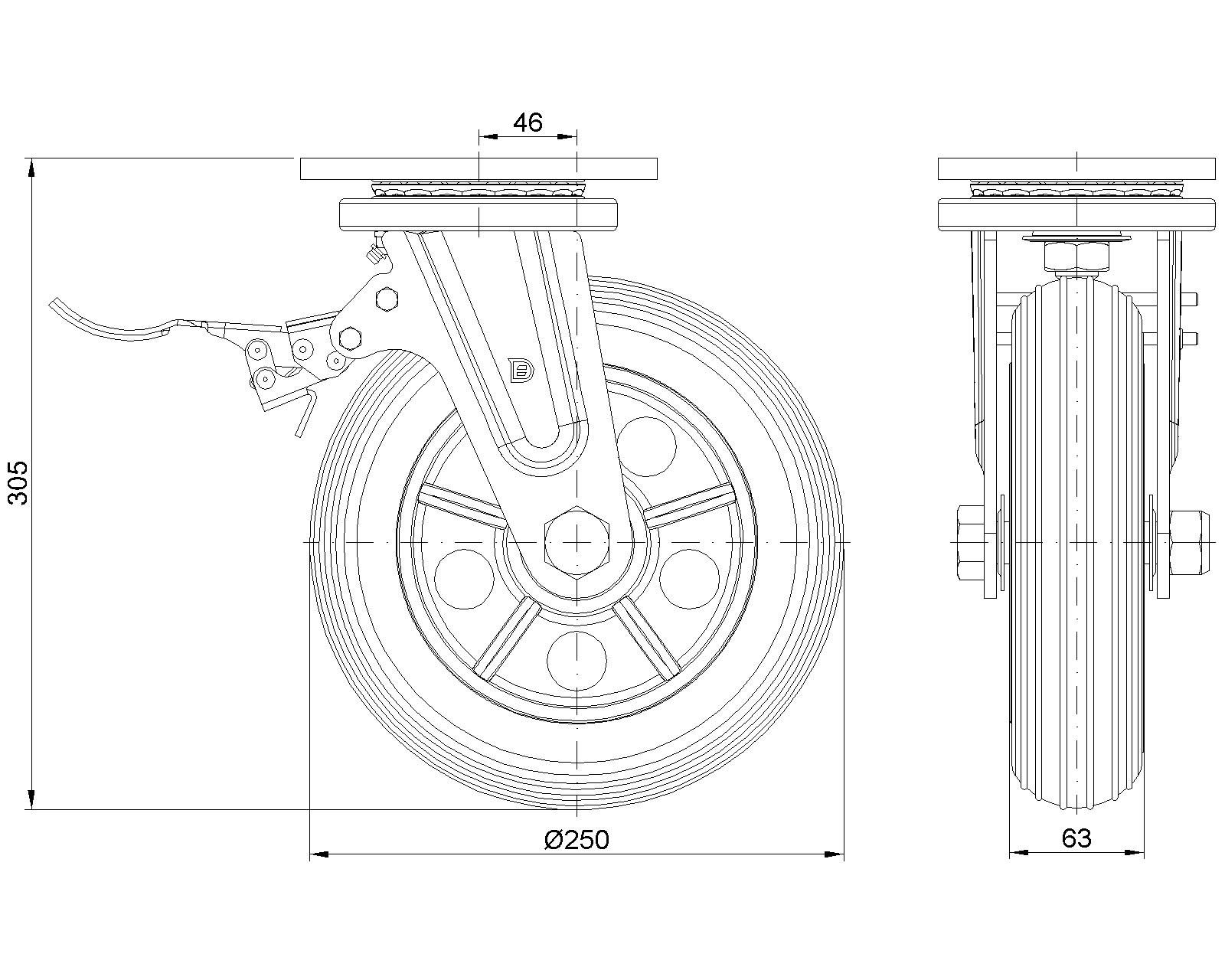

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 250mm　

　　Wheel Width 63mm　
　　Wheel Bearing Wheels With Ball Bearings

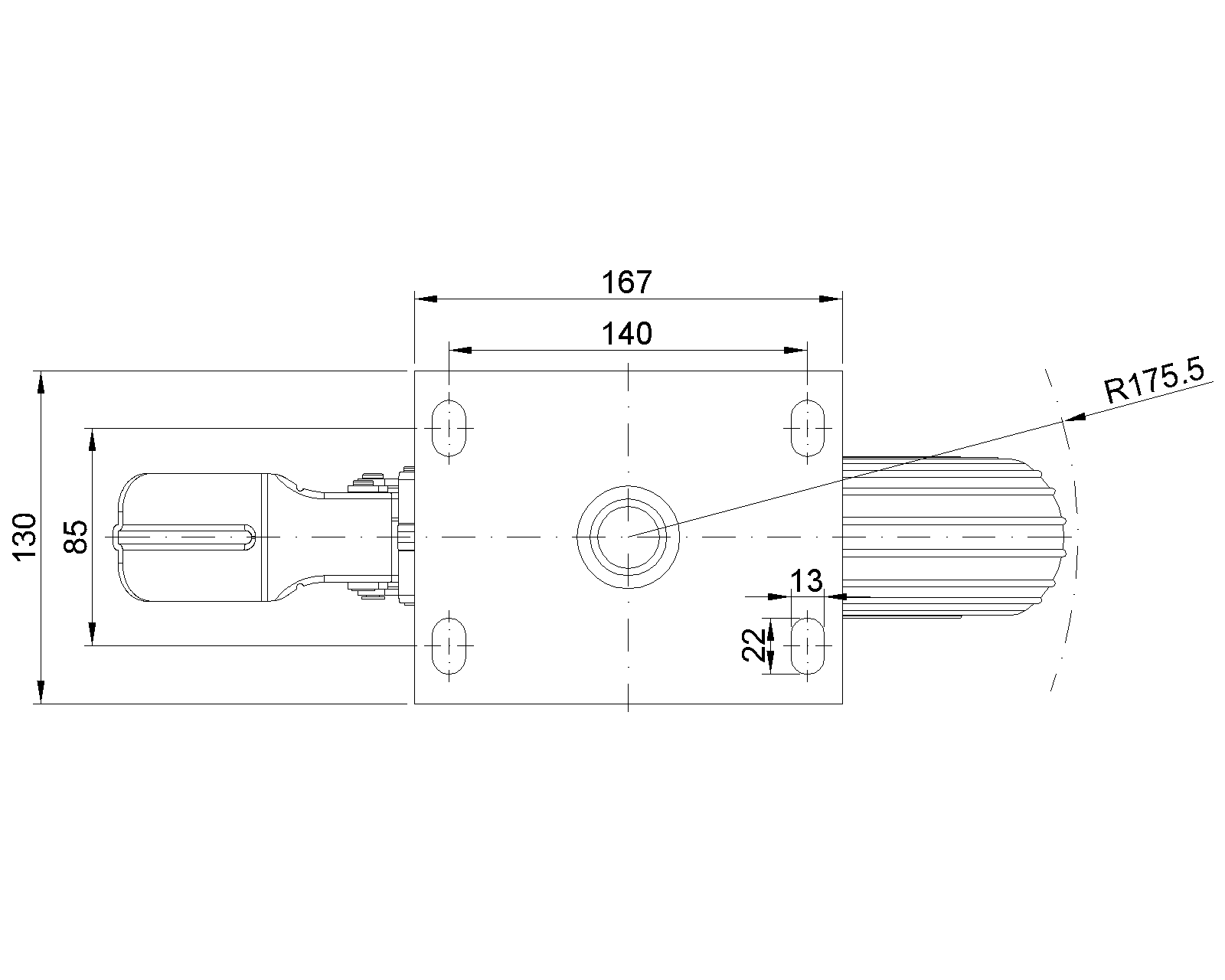

　　Plate Size 167 x 130mm　
　　Bolt Hole Spacing 140x85mm　
　　Plate Hole 22 x 13mm　
　　Offset 46mm　
　　Swivel Interference 351mm　
　　Overall Height 305mm　
　　Swivel Radius 175.5mm　
　　Hardness Of Tread 85±5° Shore A　
　　Load Capacity (Dynamic) 400kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 600kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Rear Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 10.77kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1102 B Type Caster Series
Non-marking NBR Rubber (milling) Wheel Diameter x Wheel Width 250 x 63mm

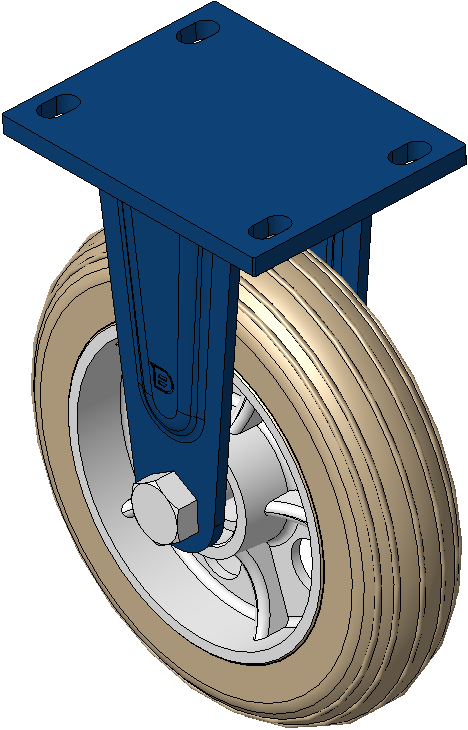

KS-11021000041071
250 mm 400 Kgs 305 mm
Rigid Caster, Welded Caster Fork, blue-painted finish
Mounting Type - Top Plate, 140x85 Bolt Hole Spacing
Cast Iron Wheel Center, High-Quality, highly Resilient Rubber Wheel Tread, Cast Iron in natural color
Bearings—Ball Bearings
1102 B Type Caster Series
Non-marking NBR Rubber (milling) Wheel Diameter x Wheel Width 250 x 63mm

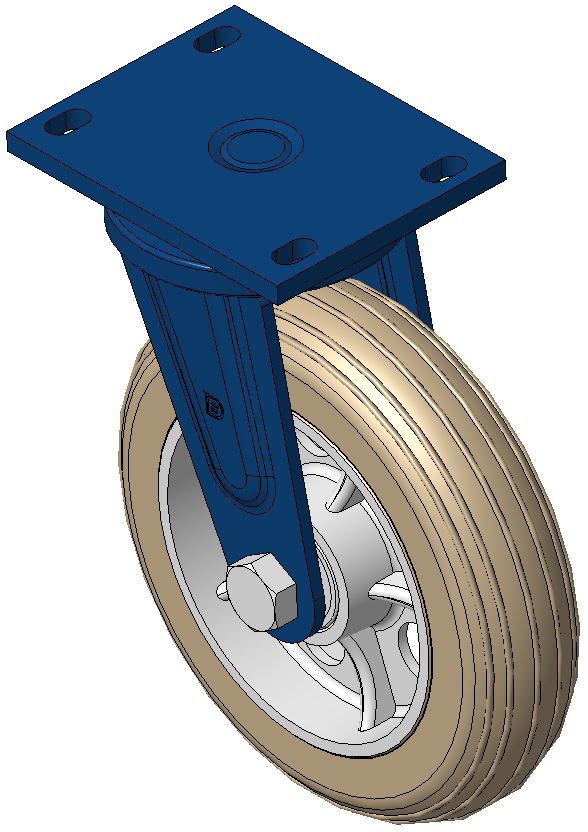

KS-11021000042071
