1102 B Type Caster Series
　　PU (Red round) Wheel Diameter × Wheel Width 200 × 50mm
　　EAN
　　　　　 KS-11020800334181
　　　　　 　　　
　　
　　

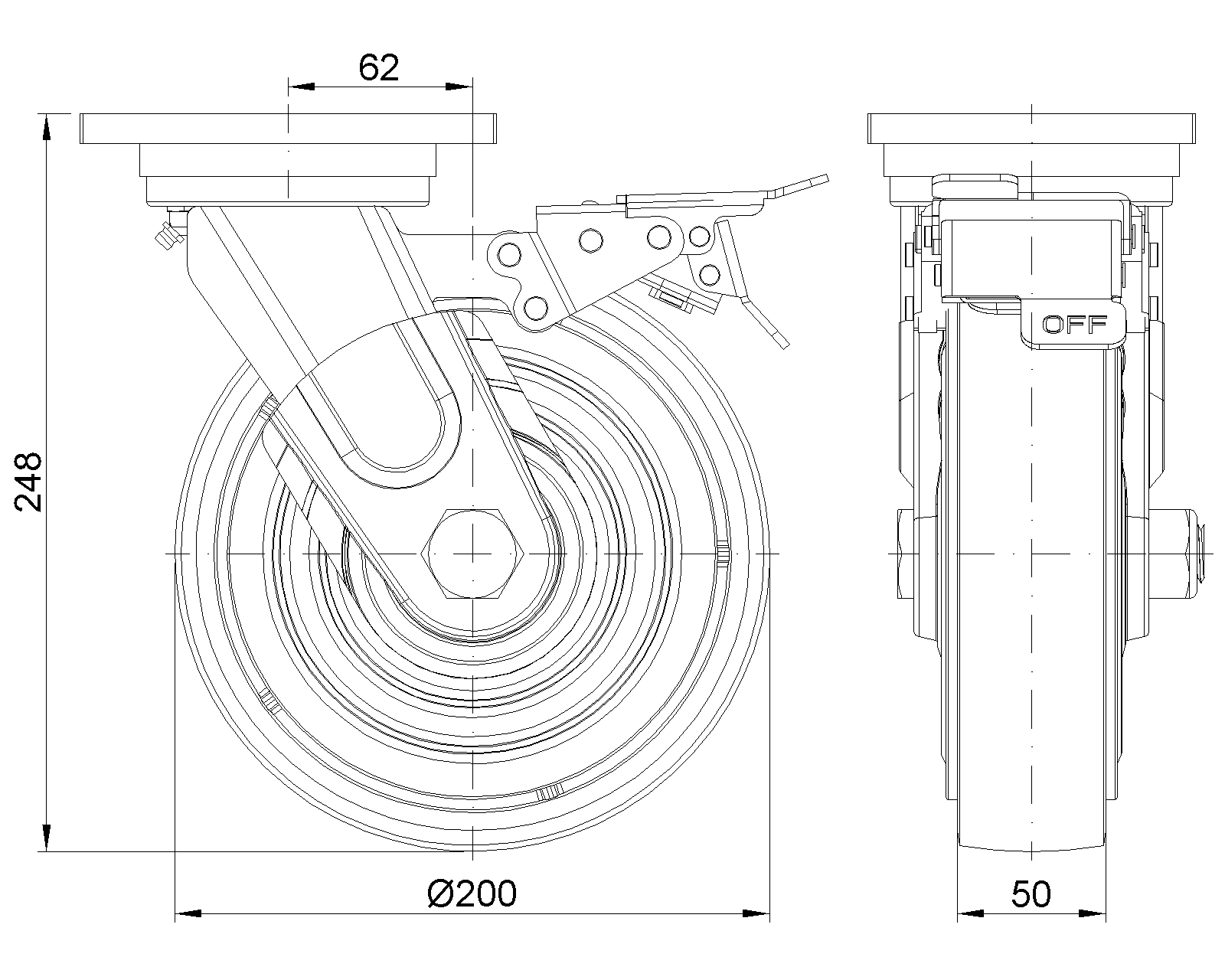

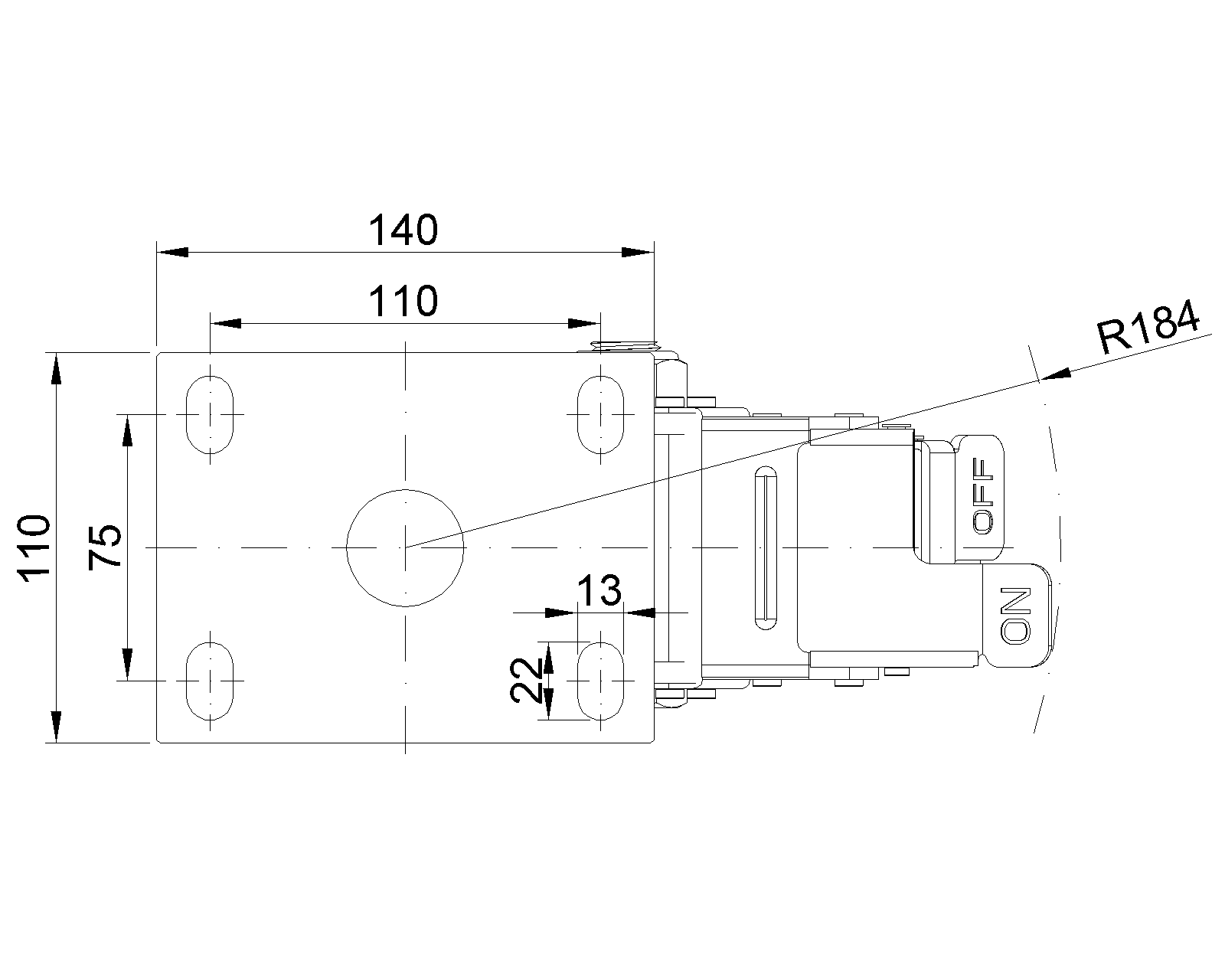

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 200mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 22 x 13mm　
　　Offset 62mm　
　　Swivel Interference 368mm　
　　Overall Height 248mm　
　　Swivel Radius 184mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 450kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 675kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Front Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 6.55kgs　
　　Standard ISO22883
　　
　　
