QPU (brown round) Wheel Diameter x Wheel Width 200 x 50mm

Picture may differ from original product

1102 B Type Caster Series

QPU (brown round) Wheel Diameter x Wheel Width 200 x 50mm

KS-11020800534171B

Wheel Diameter200mm　4＂

Load Capacity (Dynamic)670kgs　1477lbs

Overall Height248mm　9-15/16＂

Wheel BearingWheels With Ball Bearings

With front brake，Caster with locking system，Welded steel plate bracket
Blue-painted finish，Top plate mounting，Hole spacing 110x75
Cast iron wheel core，High-quality polyurethane tread，Brown
Wheel bearing—Precision ball bearing，With special anti-wrap wheel covers
Tread：High-quality polyurethane
Wheel core：Iron/cast iron core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

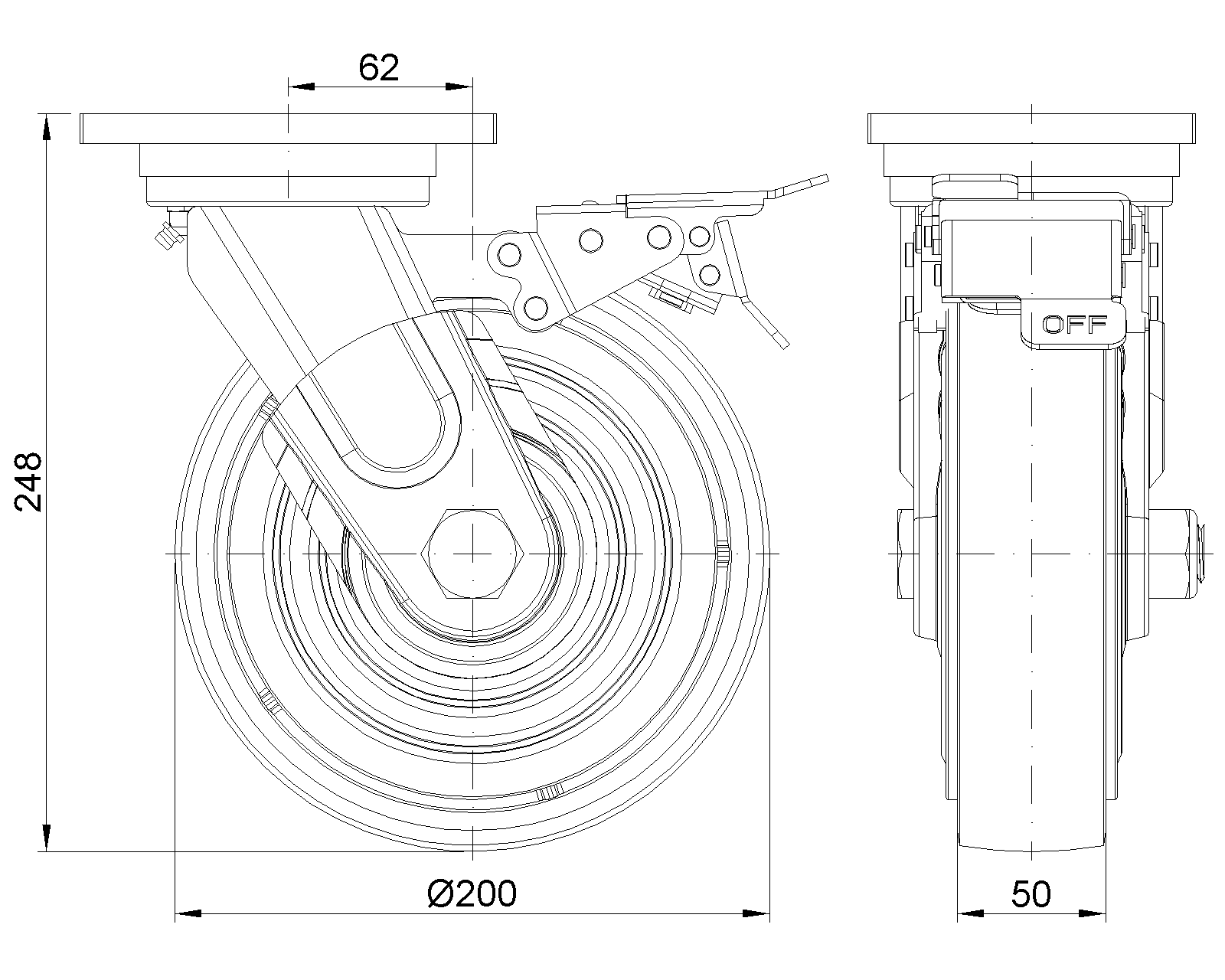

Wheel Diameter: 200mm4＂
Wheel Width: 50mm2＂
Wheel Bearing: Wheels With Ball Bearings

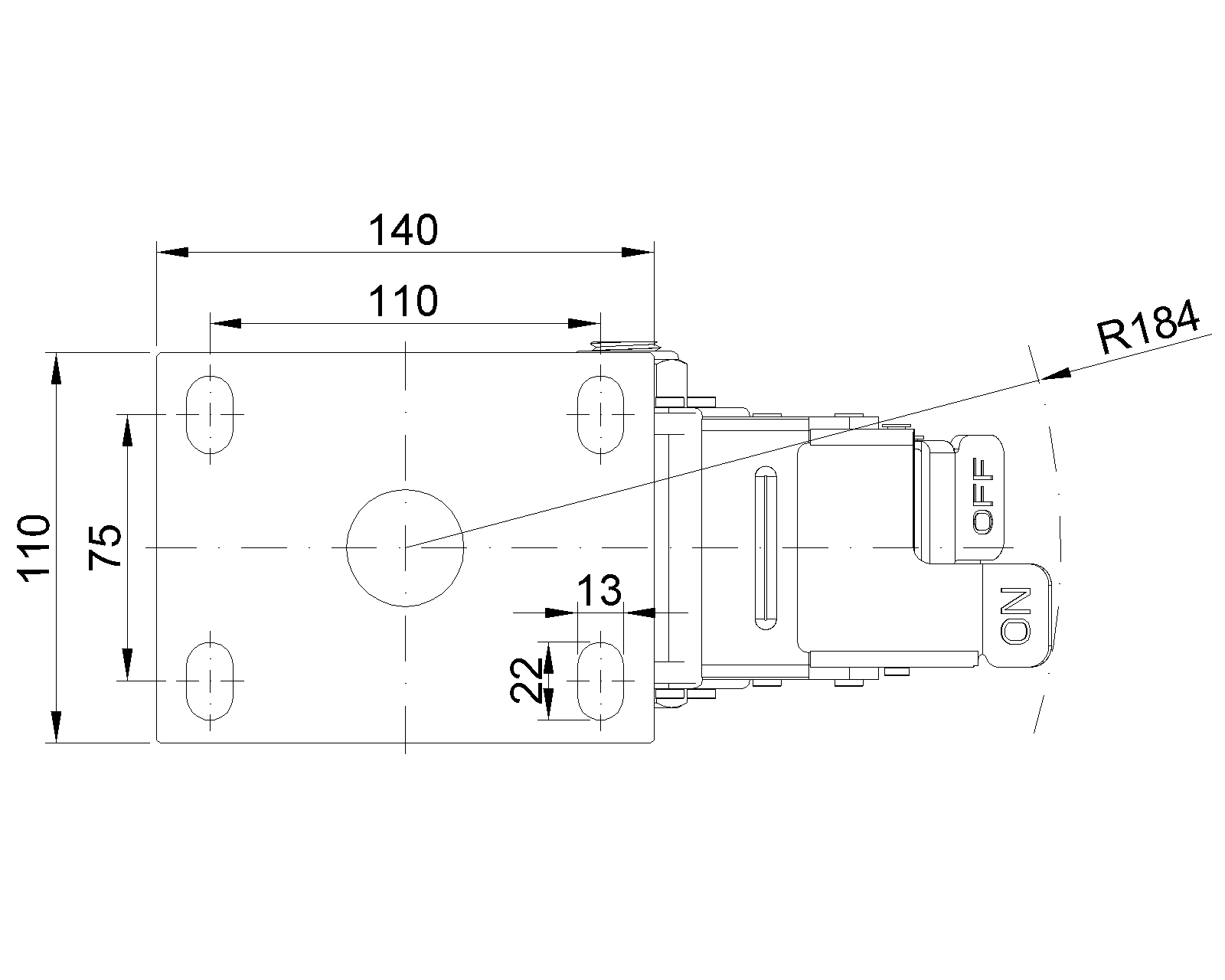

Plate Size: 140 x 110mm5-9/16＂ x 4-3/8＂
Bolt Hole Spacing: 110x75mm4-5/16＂x3”
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Offset: 62mm2-1/2＂
Swivel Interference: 368mm14-1/2＂
Overall Height: 248mm9-15/16＂
Swivel Radius: 184mm7-3/8＂
Hardness Of Tread: 92±5° Shore A
Load Capacity (Dynamic): 670kgs1477lbs
Load Capacity (Static): 1005kgs2216lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Swivel Caster With Front Brake
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 6.67kgs14.7lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 5

Floor Surface PreservationMax. 5 pointsScore: 5
