PU (red flat) Wheel Diameter x Wheel Width 305 x 70mm

Picture may differ from original product

1102 B Type Caster Series

PU (red flat) Wheel Diameter x Wheel Width 305 x 70mm

KS-11021200331011

Wheel Diameter305mm　12-1/16＂

Load Capacity (Dynamic)1000kgs　2205lbs

Overall Height354.5mm　14＂

Wheel BearingWheels With Ball Bearings

Rigid Caster with Welded Caster Fork and blue paint finish.
Mounting Type - Top Plate, 140x85 Bolt Hole Spacing.
Cast Iron Wheel Center with High Quality Polyurethane tread, Cast Iron red.
Bearing—Ball Bearing.
Wheel tread: Made of high-quality polyurethane
Wheel Center: iron core/cast iron core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

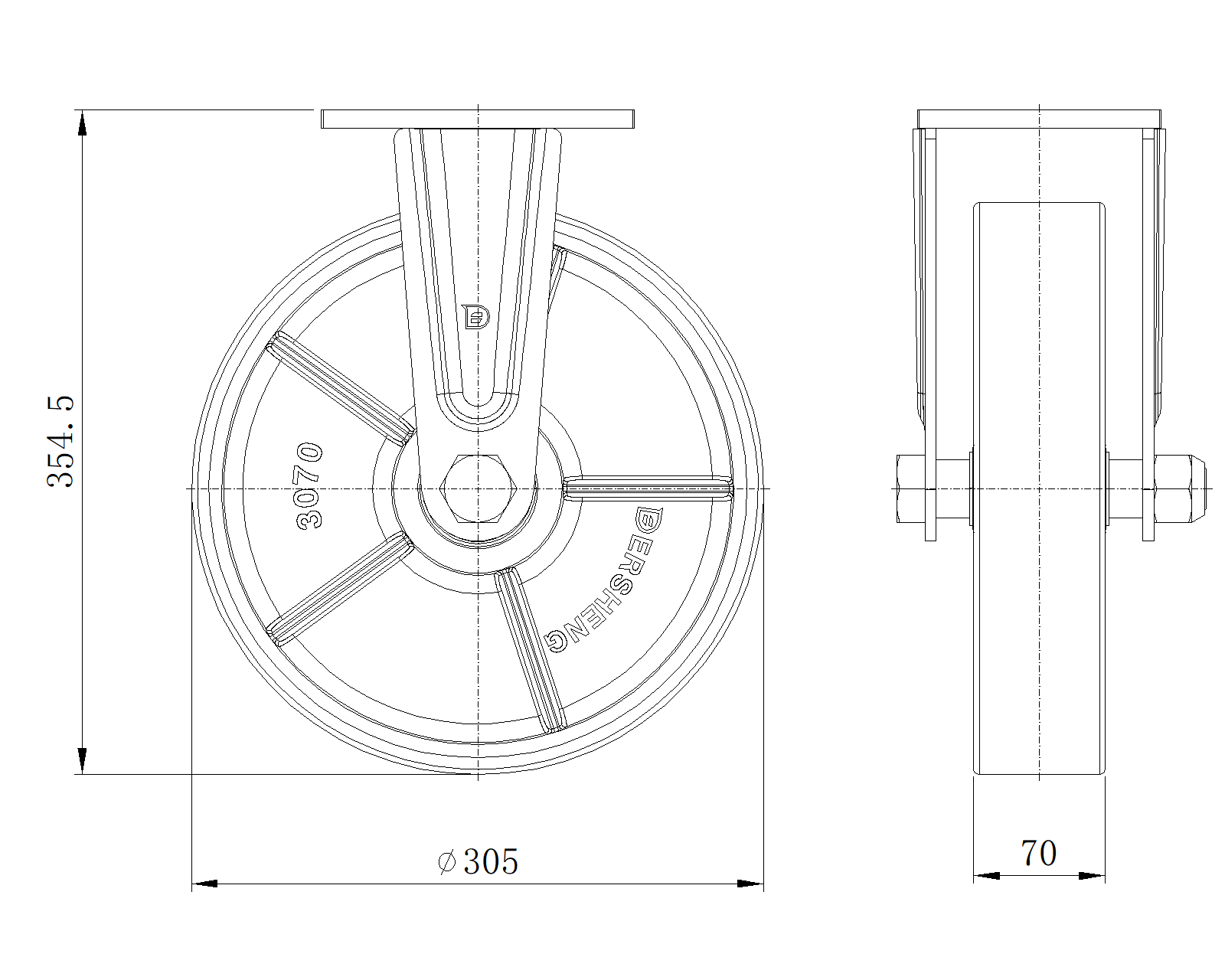

Product Data Sheet

Wheel Diameter: 305mm12-1/16＂
Wheel Width: 70mm2-13/16＂
Wheel Bearing: Wheels With Ball Bearings

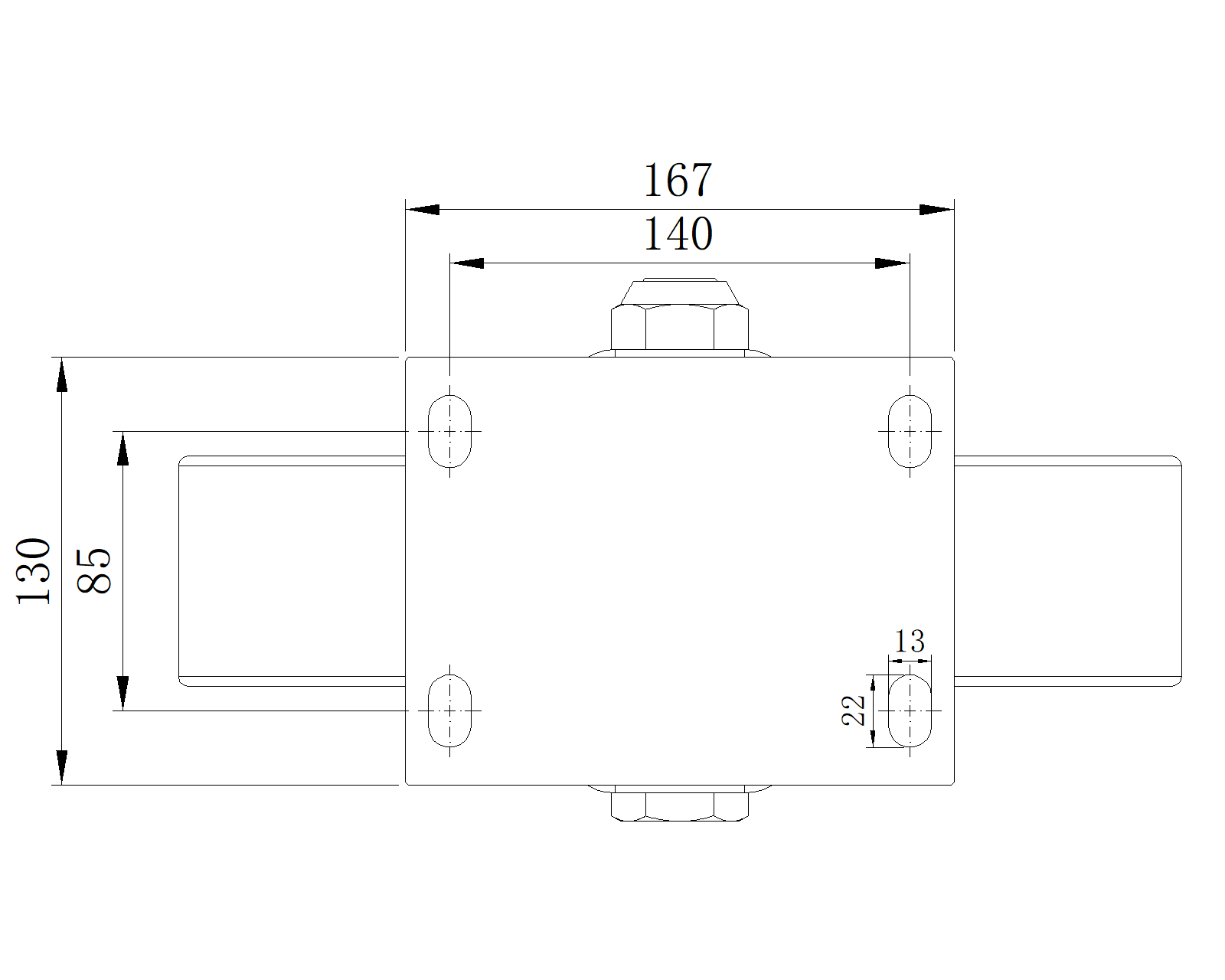

Plate Size: 167 x 130mm6-5/8＂ x 5-3/16＂
Bolt Hole Spacing: 140x85mm5-1/2＂x3-3/8＂
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Overall Height: 354.5mm14＂
Hardness Of Tread: 93±5° Shore A
Load Capacity (Dynamic): 1000kgs2205lbs
Load Capacity (Static): 1500kgs3307lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Rigid Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 15.4kgs34.0lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 3

Quiet OperationMax. 5 pointsScore: 4

Floor Surface PreservationMax. 5 pointsScore: 4
