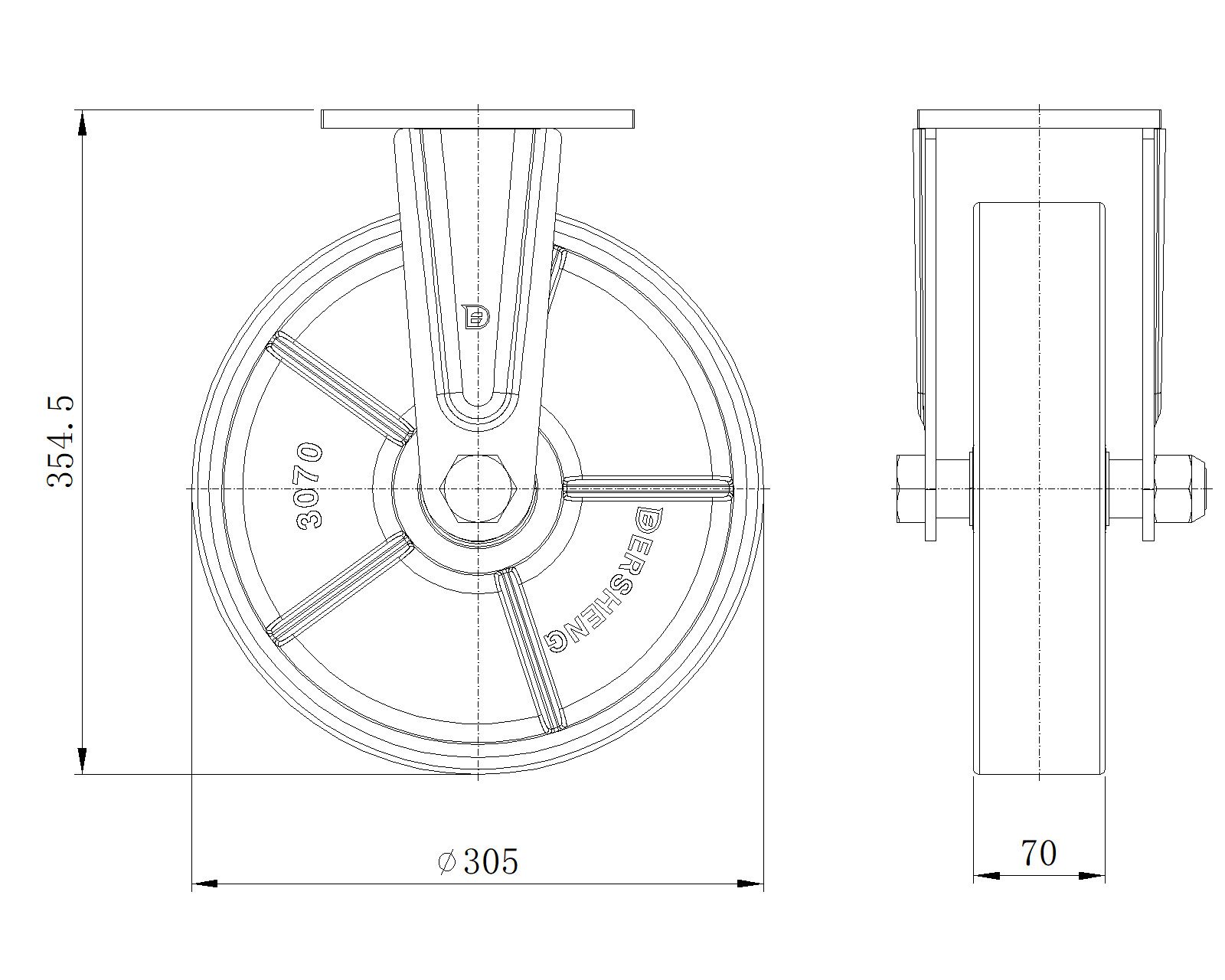

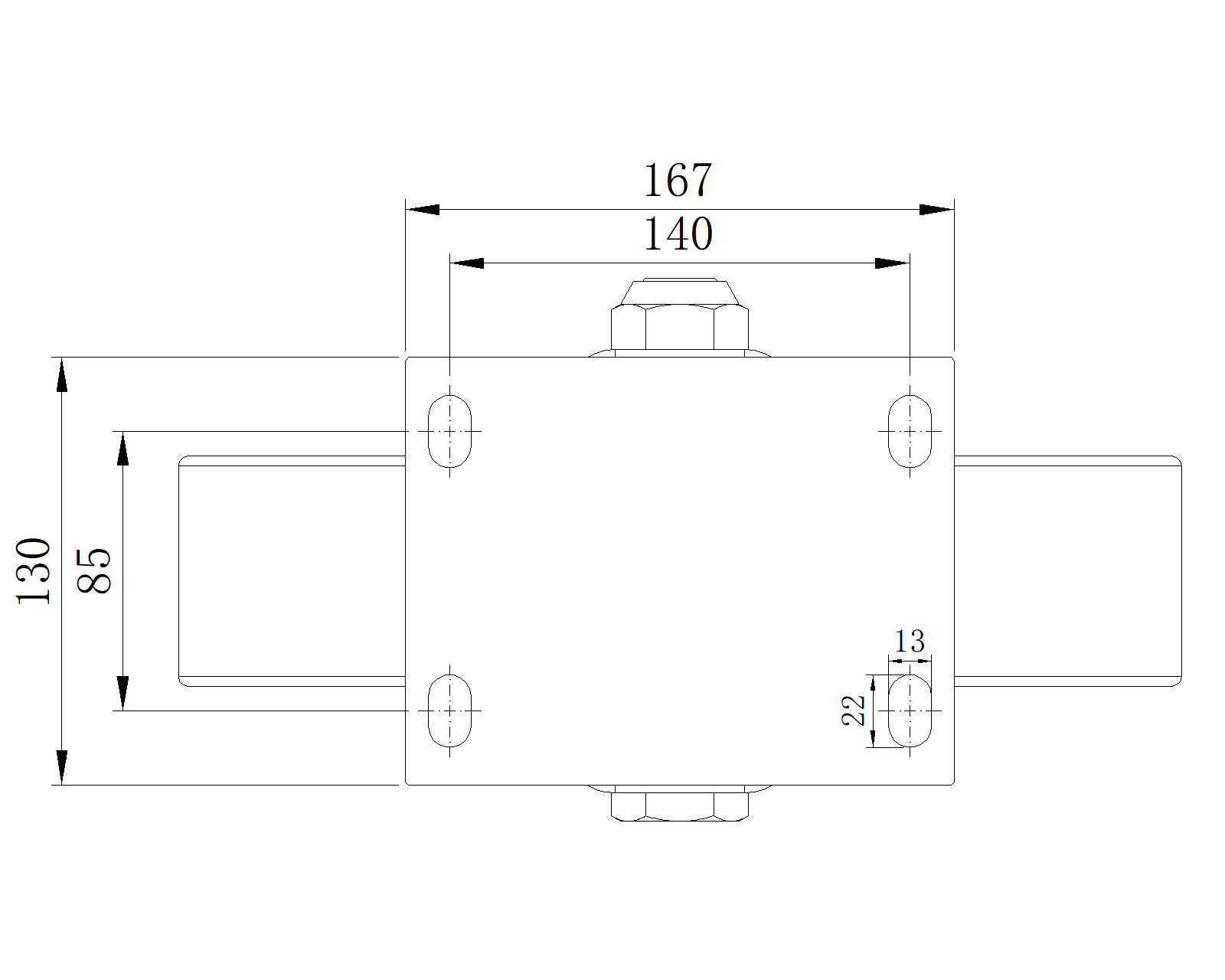

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
305mm
Wheel Width
70mm
Wheel Bearing
Wheels With Ball Bearings
Plate Size
167 x 130mm
Bolt Hole Spacing
140x85mm
Plate Hole
22 x 13mm
Overall Height
354.5mm
Hardness Of Tread
93±5° Shore A
Load Capacity (Dynamic)
1250kgs
Rolling Resistance ● ● ● ○ ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ○
Load Capacity (Static)
1875kgs
Temperature
-20°C to +70°C
Fork Type
Rigid Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
15.46kgs
Standard
ISO22883
305 mm
1250 Kgs
354.5 mm
