QPU (Brown round) Wheel Diameter × Wheel Width 150 x 42mm

Picture may differ from original product

1102 B Type Caster Series

QPU (Brown round) Wheel Diameter × Wheel Width 150 x 42mm

KS-11020600532121

Wheel Diameter150mm　6＂

Load Capacity (Dynamic)550kgs　1213lbs

Overall Height197mm　7-7/8＂

Wheel BearingWheels With Ball Bearings

Swivel Caster, Welded Caster Fork - 110x75 Bolt Hole Spacing
Blue painted finish, Mounting Type - Top Plate
Cast Iron Wheel Center, High Quality Polyurethane tread, Cast Iron brown
Bearing - Ball Bearing with special anti-wrap cap
Wheel Tread: Made of high-quality polyurethane
Wheel Center: iron core/cast iron core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

Wheel Diameter: 150mm6＂
Wheel Width: 42mm1-11/16＂
Wheel Bearing: Wheels With Ball Bearings

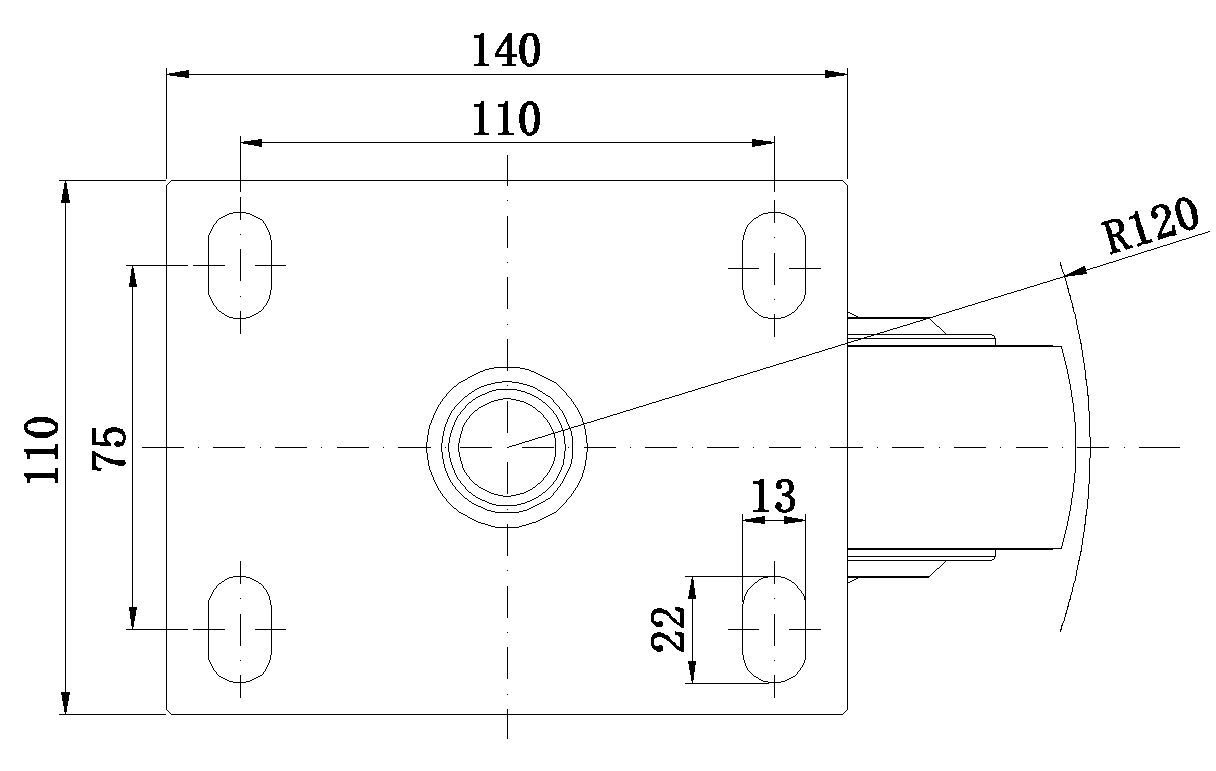

Plate Size: 140 x 110mm5-9/16＂ x 4-3/8＂
Bolt Hole Spacing: 110x75mm4-5/16＂x3”
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Offset: 42mm1-11/16＂
Swivel Interference: 240mm9-1/2＂
Overall Height: 197mm7-7/8＂
Swivel Radius: 120mm4-13/16＂
Hardness Of Tread: 92±5° Shore A
Load Capacity (Dynamic): 550kgs1213lbs
Load Capacity (Static): 825kgs1819lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 4.55kgs10.0lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 5

Floor Surface PreservationMax. 5 pointsScore: 5
