    Product Data Sheet
　　NBR (milling black) Wheel Diameter x Wheel Width 200 x 44mm
　　EAN
　　　　　 KS-11020800042011
　　　　　 　　　

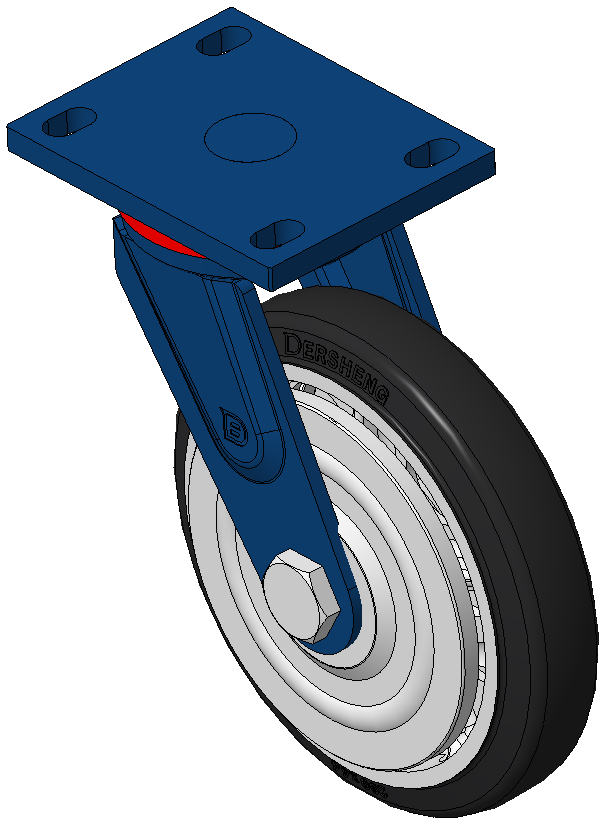

Swivel Caster, Welded Caster Fork Surface sprayed with blue paint, Mounting Type - Top Plate, Hole spacing 110x75 Cast Iron Wheel Center, High-Quality high-Resilient Rubber Wheel Tread, Cast Iron black Bearing-Ball Bearing
　　Wheel Tread: Made of high quality and high elastic rubber
　　Wheel Center: iron core/cast iron core

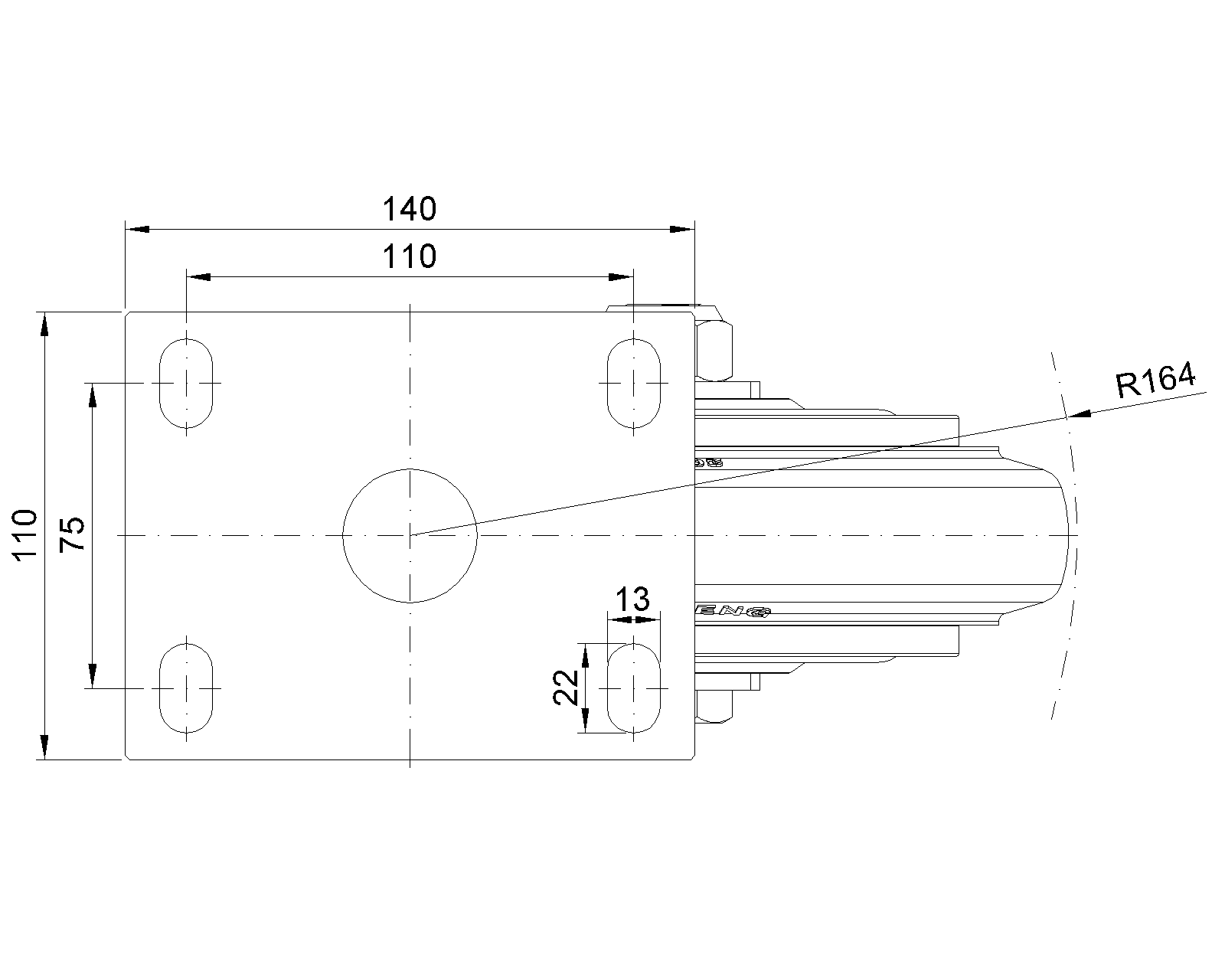

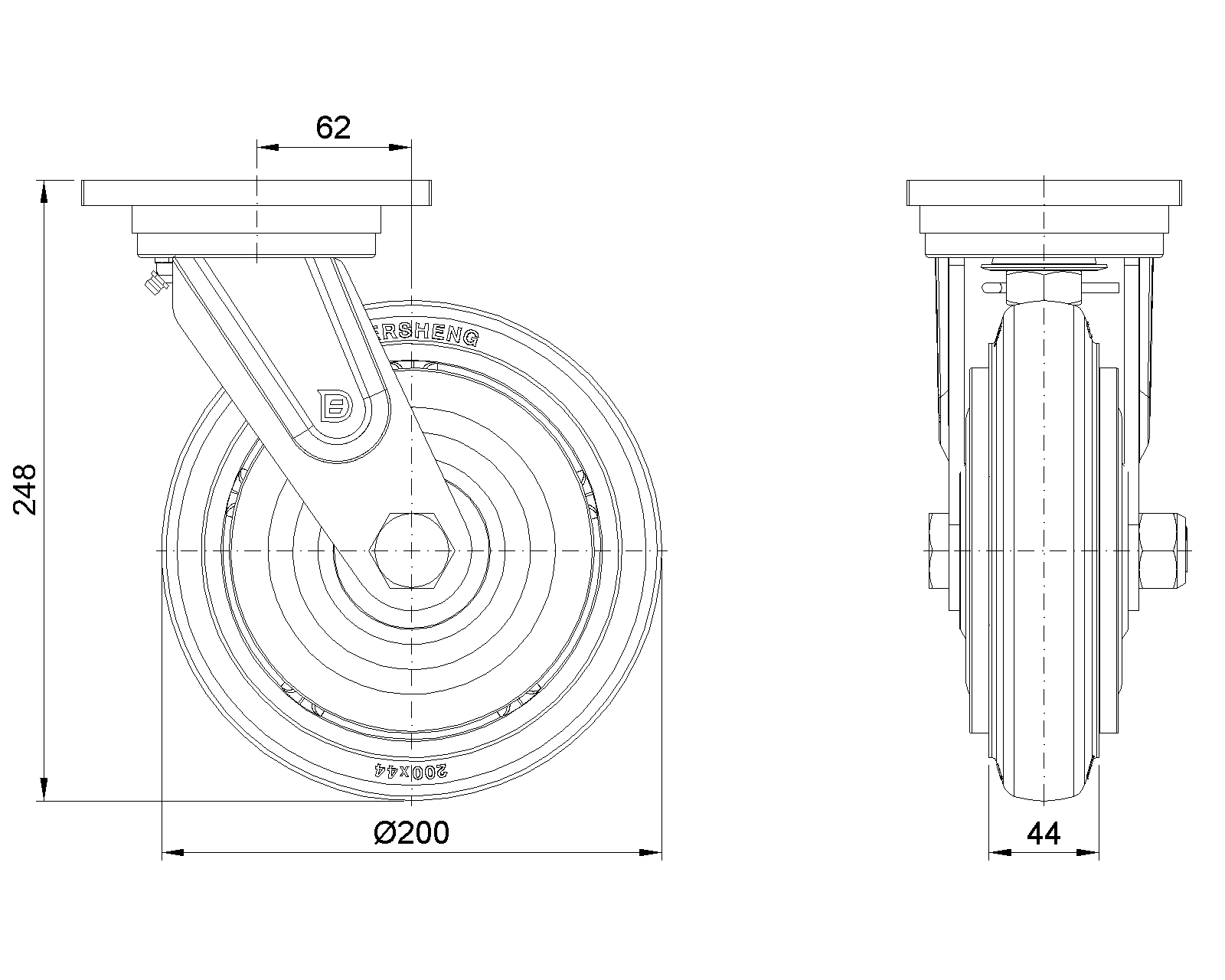

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 200mm　

　　Wheel Width 44mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 22 x 13mm　
　　Offset 62mm　
　　Swivel Interference 328mm　
　　Overall Height 248mm　
　　Swivel Radius 164mm　
　　Hardness Of Tread 85±5° Shore A　
　　Load Capacity (Dynamic) 350kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 525kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 6.0kgs　
　　Standard ISO22883
　　
　　
