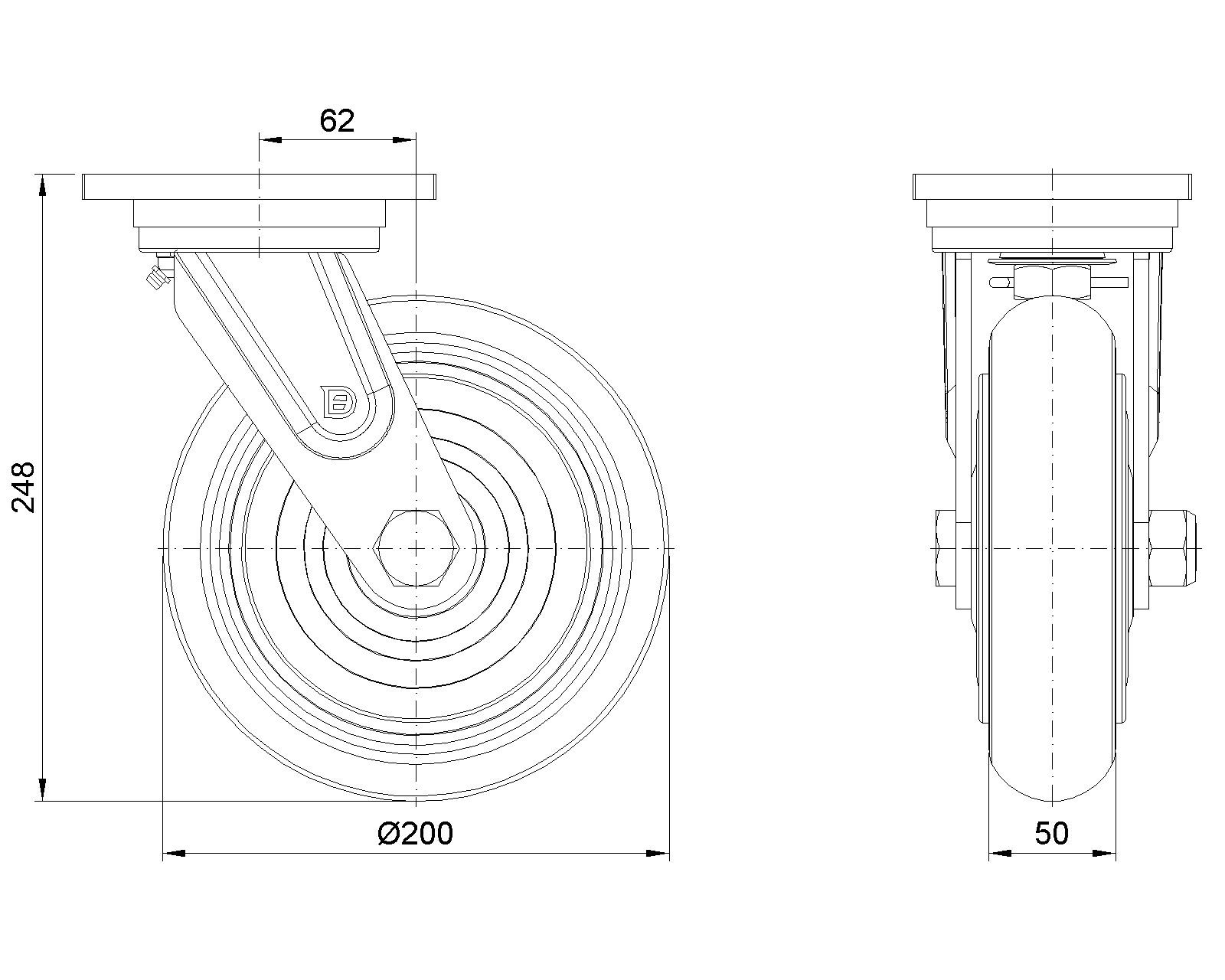

- Wheel Diameter
- 200mm8＂
- Wheel Width
- 50mm2＂
- Wheel Bearing
- Wheels With Ball Bearings

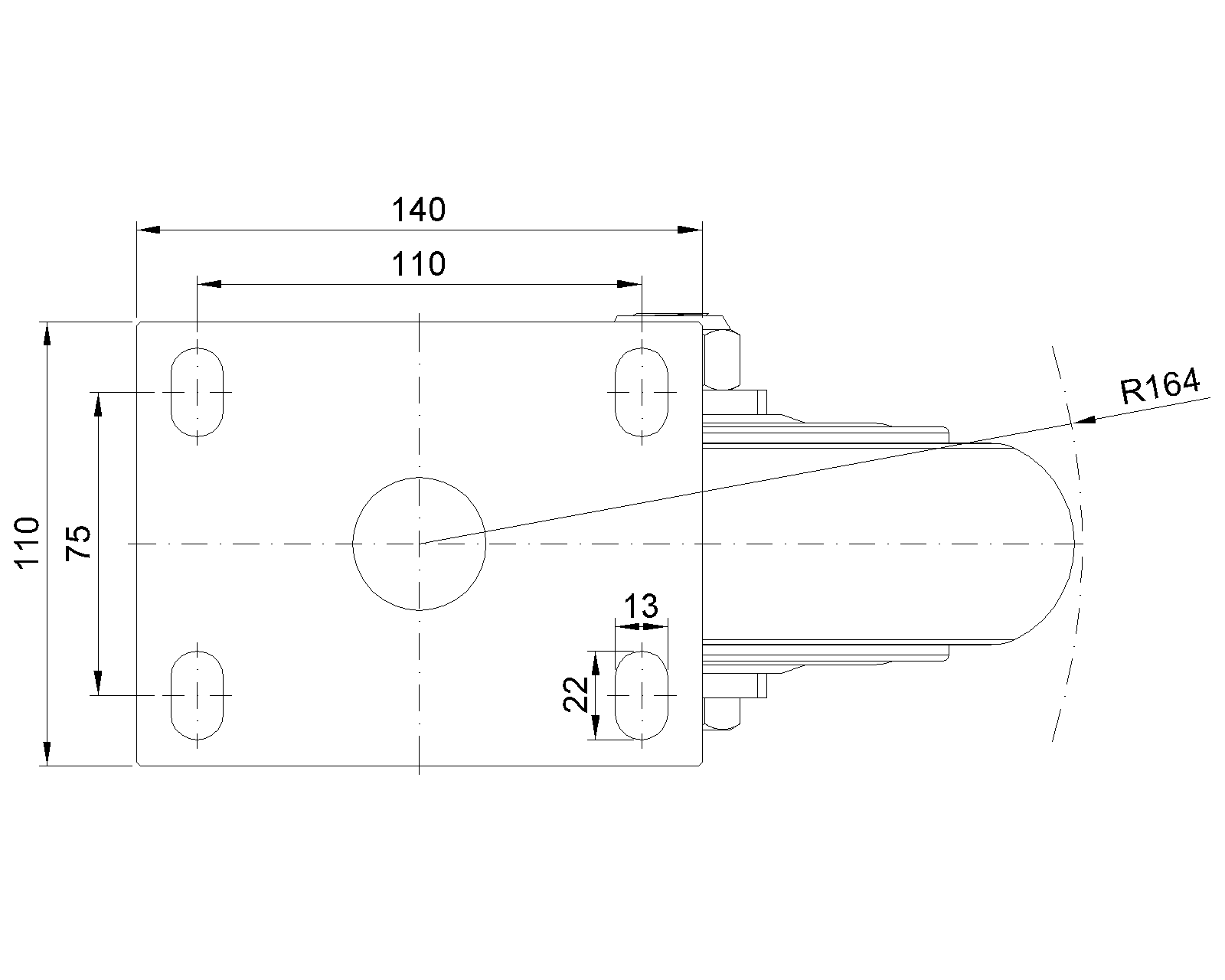

- Plate Size
- 140 x 110mm5-9/16＂ x 4-3/8＂
- Bolt Hole Spacing
- 110x75mm4-5/16＂x3”
- Plate Hole
- 22 x 13mm7/8＂ x 9/16＂
- Offset
- 62mm2-1/2＂
- Swivel Interference
- 328mm13＂
- Overall Height
- 248mm9-15/16＂
- Swivel Radius
- 164mm6-1/2＂
- Hardness Of Tread
- 92±5° Shore A
- Load Capacity (Dynamic)
- 750kgs1653lbs
- Load Capacity (Static)
- 1125kgs2480lbs
- Temperature
- -20°C to +70°C-4°F to +158°F
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 6.88kgs15.2lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
