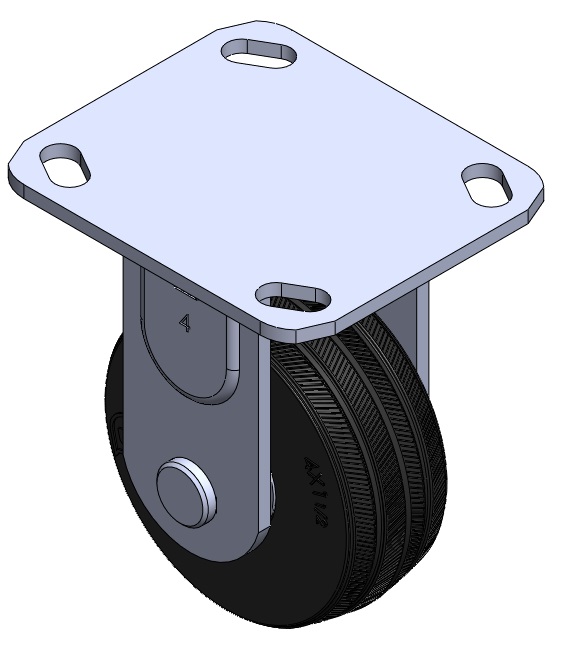

Rubber wheel (black) Wheel diameter × wheel width 100 x 35mm

Picture may differ from original product

1104-D series

Rubber wheel (black) Wheel diameter × wheel width 100 x 35mm

TW-4110404001004

Wheel Diameter100mm　

Load Capacity (Dynamic)150kgs　

Overall Height134mm　

Wheel BearingWheels With Ball Bearings

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

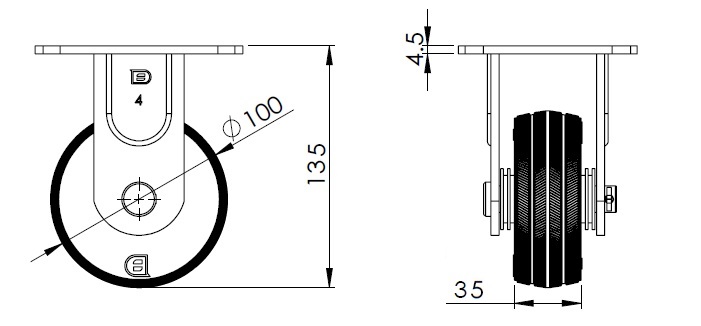

Wheel Diameter: 100mm
Wheel Width: 37mm
Wheel Bearing: Wheels With Ball Bearings

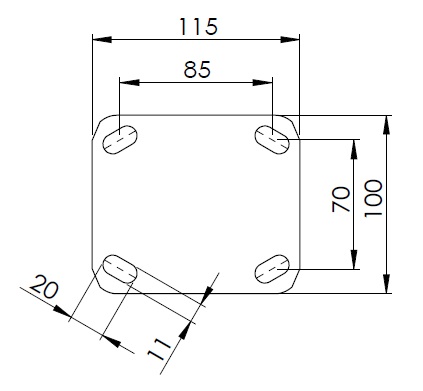

Plate Size: 115 x 100mm
Bolt Hole Spacing: 85 x 70mm
Plate Hole: 20 x 11mm
Overall Height: 134mm
Hardness Of Tread: 85±5° Shore A
Load Capacity (Dynamic): 150kgs
Load Capacity (Static): 225kgs
Temperature: -20°C to +120°C
Fork Type: Rigid Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 1.20kgs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.
