Picture may differ from original product
1106 Medical Caster Series

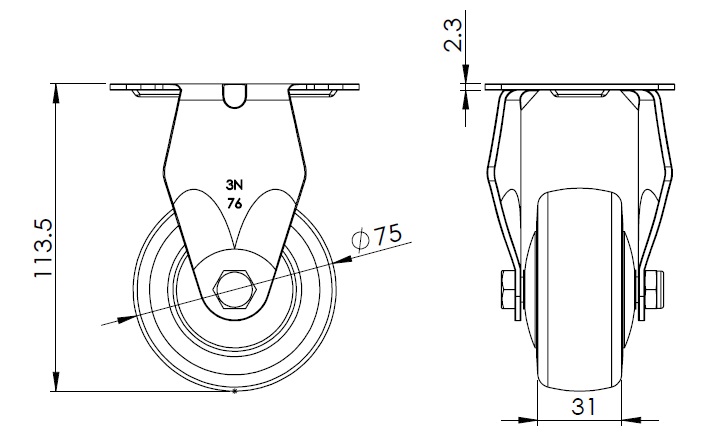

PPR Wheel Diameter × Wheel Width 75 x 31mm
TW-4110603001003
Wheel Diameter75mm 3＂
Load Capacity (Dynamic)70kgs 154lbs
Overall Height113.5mm 4-1/2＂
Wheel BearingWheels With Ball Bearings
- Rigid Caster with integral Stamping bracket and angled hole.
- Zine-Plated, Mounting Type - Top Plate.
- High-Quality Impact-Resistant Polypropylene core with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread.
- Dark gray. Ball Bearing bearings.
- Wheel tread: Thermoplastic rubber elastomer (TPR)
- Wheel Center: Made of high-quality impact-resistant polypropylene
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.
Product Data Sheet
- Wheel Diameter
- 75mm3＂
- Wheel Width
- 31mm1-1/4＂
- Wheel Bearing
- Wheels With Ball Bearings
- Plate Size
- 92 x 70mm3-11/16＂ x 2-13/16＂
- Bolt Hole Spacing
- 74.5 x 49mm3＂x 2＂
- Plate Hole
- 15 x 10mm5/8＂ x 3/8＂
- Overall Height
- 113.5mm4-1/2＂
- Hardness Of Tread
- 82±5° Shore A
- Load Capacity (Dynamic)
- 70kgs154lbs
- Load Capacity (Static)
- 105kgs231lbs
- Temperature
- -20°C to +60°C-4°F to +140°F
- Fork Type
- Rigid Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.40kgs0.9lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 4
