1106 Medical Caster Series
Resolute Wheel Diameter × Wheel Width 100 x 31mm
TW-4110604002186
Wheel Diameter100mm 4＂
Load Capacity (Dynamic)125kgs 276lbs
Overall Height138mm 5-1/2＂
Wheel BearingWheels With Ball Bearings
- Equipped with 180° fixed Casters, Riveted Fork with Fork and angled holes.
- Zine-Plated, Top Plateed (3T) Mounting Type system.
- High-Quality Impact-Resistant Polypropylene Wheel Center with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread.
- Dark gray, Bearing with Ball Bearings.
- Wheel tread: Thermoplastic rubber elastomer (TPR)
- Wheel Center: Made of high-quality impact-resistant polypropylene
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.
Product Data Sheet
- Wheel Diameter
- 100mm4＂
- Wheel Width
- 31mm1-1/4＂
- Wheel Bearing
- Wheels With Ball Bearings

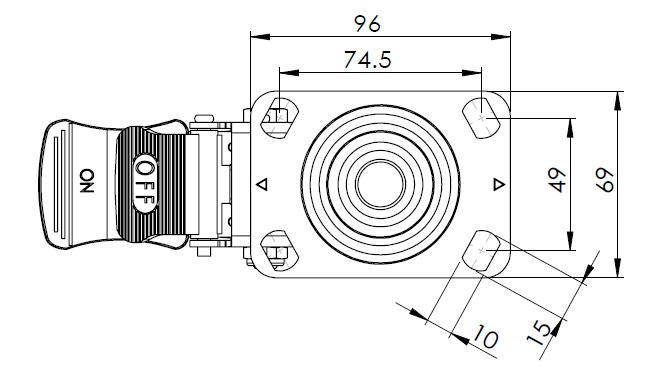

- Plate Size
- 96 x 69mm3-7/8＂ x 4-3/16＂
- Bolt Hole Spacing
- 74.5 x 49mm3＂x 2＂
- Plate Hole
- 15 x 10mm5/8＂ x 3/8＂

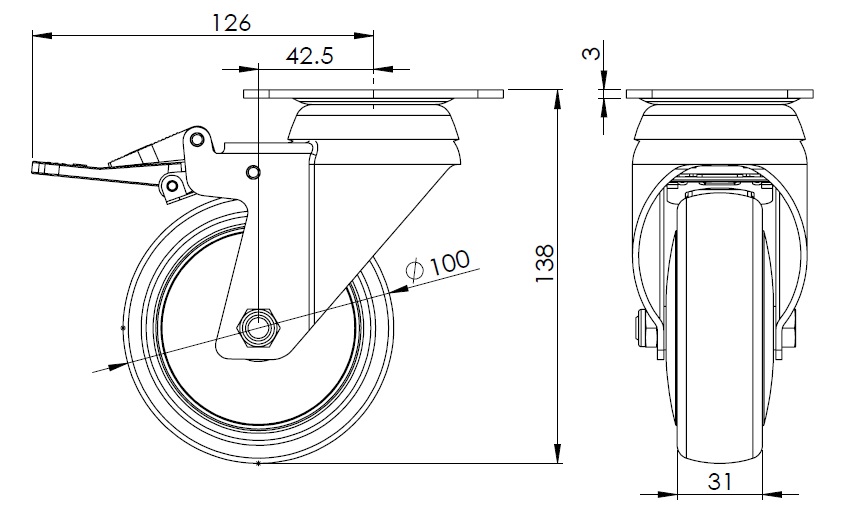

- Offset
- 42.5mm1-11/16＂
- Swivel Interference
- 252mm10＂
- Overall Height
- 138mm5-1/2＂
- Swivel Radius
- 126mm5＂
- Hardness Of Tread
- 72±5° Shore A
- Load Capacity (Dynamic)
- 125kgs276lbs
- Load Capacity (Static)
- 187.5kgs413lbs
- Temperature
- -20°C to +60°C-4°F to +140°F
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.85kgs1.9lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
