Zine-Plated, Mounting Type - Threaded Stem
High-Quality Impact-Resistant Polypropylene core, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, wheel - Plain Bearing
Wheel Center: Made of high-quality impact-resistant polypropylene

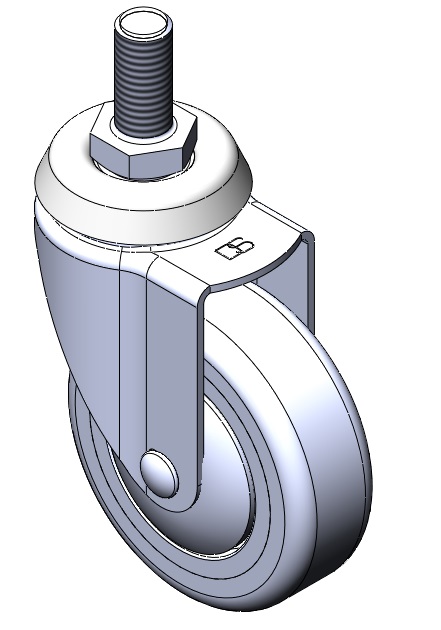

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
75mm
Wheel Width
25mm
Wheel Bearing
Wheel With Plain Bearing

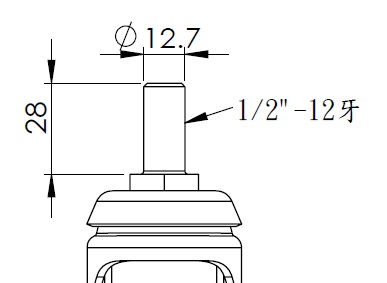

Threaded Stem
1/2＂-12牙
Threaded Length
28mm
Offset
24mm
Swivel Interference
122mm
Overall Height
110mm
Swivel Radius
61mm
Hardness Of Tread
82±5° Shore A
Load Capacity (Dynamic)
50kgs
Rolling Resistance ● ● ● ● ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
75kgs
Temperature
-20°C to +60°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.50kgs
Standard
ISO22883
