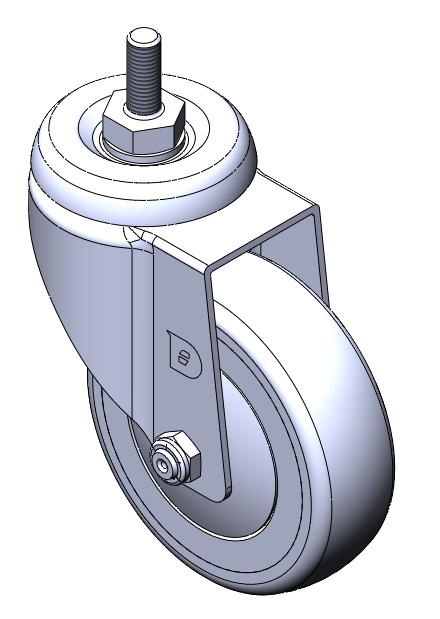

Picture may differ from original product
1106 Medical Caster Series
PPR (S) Wheel Diameter × Wheel Width 100 x 31mm
TW-4110604002233
Wheel Diameter100mm 4＂
Load Capacity (Dynamic)80kgs 176lbs
Overall Height138mm 5-1/2＂
Wheel BearingWheel With Plain Bearing
- Swivel Caster with Riveted Stamping Fork - 3/8-16 threads
- Zine-Plated, Mounting Type - Threaded Stem
- High-Quality Impact-Resistant Polypropylene core, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
- Dark gray, wheel - Plain Bearing
- Wheel tread: Thermoplastic rubber elastomer (TPR)
- Wheel Center: Made of high-quality impact-resistant polypropylene
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

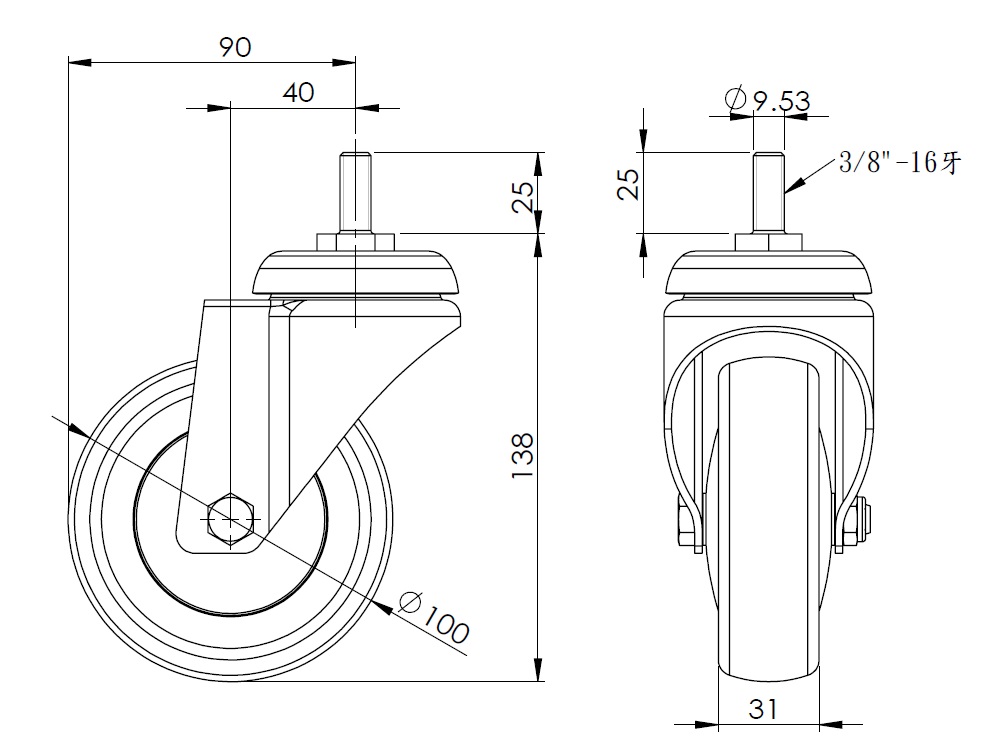

Product Data Sheet
- Wheel Diameter
- 100mm4＂
- Wheel Width
- 31mm1-1/4＂
- Wheel Bearing
- Wheel With Plain Bearing

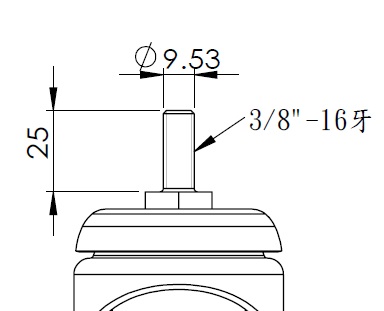

- Threaded Stem
- 3/8＂-16牙3/8＂-16牙
- Threaded Length
- 25mm1＂
- Offset
- 40mm1-5/8＂
- Swivel Interference
- 180mm7-1/8＂
- Overall Height
- 138mm5-1/2＂
- Swivel Radius
- 90mm3-9/16＂
- Hardness Of Tread
- 82±5° Shore A
- Load Capacity (Dynamic)
- 80kgs176lbs
- Load Capacity (Static)
- 120kgs265lbs
- Temperature
- -20°C to +60°C-4°F to +140°F
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.50kgs1.1lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 4
