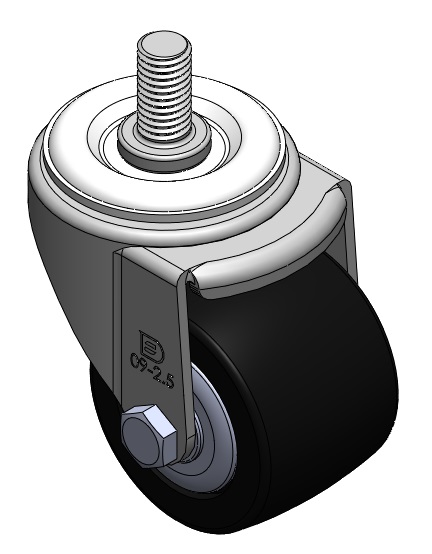

Picture may differ from original product
1109 Medium Duty/Low Profile Business Machine Caster Series
Nylon Wheel Diameter × Wheel Width 63 x 45mm
TW-4110902052001
Wheel Diameter63mm
Load Capacity (Dynamic)250kgs
Overall Height90mm
Wheel BearingWheels With Ball Bearings
- Swivel Caster with Riveted Stamping Fork—1/2"-12 UNC.
- Zine-Plated, Mounting Type - Threaded Stem.
- Reinforced Polypropylene core and Wheel Tread.
- Bearing—Ball Bearing.
- Wheel surface: Thermoplastic
- Wheel Center: Thermoplastic
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

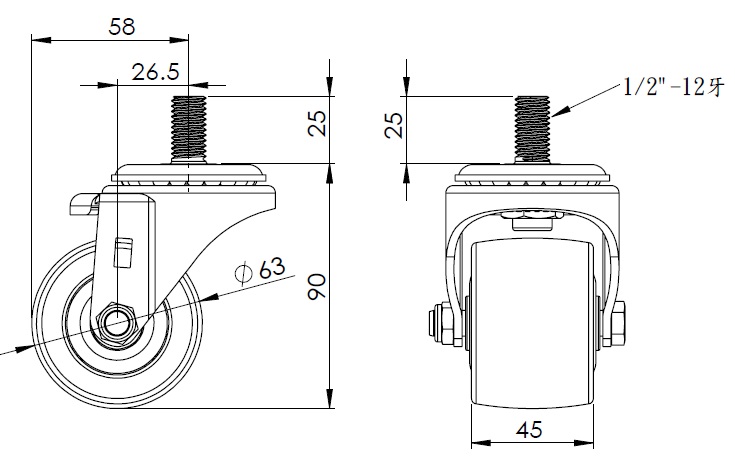

Product Data Sheet
- Wheel Diameter
- 63mm
- Wheel Width
- 45mm
- Wheel Bearing
- Wheels With Ball Bearings

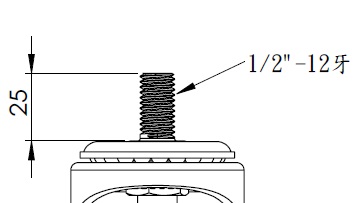

- Threaded Stem
- 1/2＂-12牙
- Threaded Length
- 25mm
- Offset
- 26.5mm
- Swivel Interference
- 116mm
- Overall Height
- 90mm
- Swivel Radius
- 58mm
- Hardness Of Tread
- 75±5° Shore D
- Load Capacity (Dynamic)
- 250kgs
- Load Capacity (Static)
- 375kgs
- Temperature
- -20°C to +80°C
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.50kgs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
